- RS Stock No.:
- 219-3722
- Mfr. Part No.:
- TL36WS84
- Brand:
- APEM
107 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£9.22
(exc. VAT)
£11.06
(inc. VAT)
Units | Per unit |
1 - 24 | £9.22 |
25 - 49 | £7.57 |
50 - 99 | £6.92 |
100 - 249 | £6.47 |
250 + | £5.92 |
- RS Stock No.:
- 219-3722
- Mfr. Part No.:
- TL36WS84
- Brand:
- APEM
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

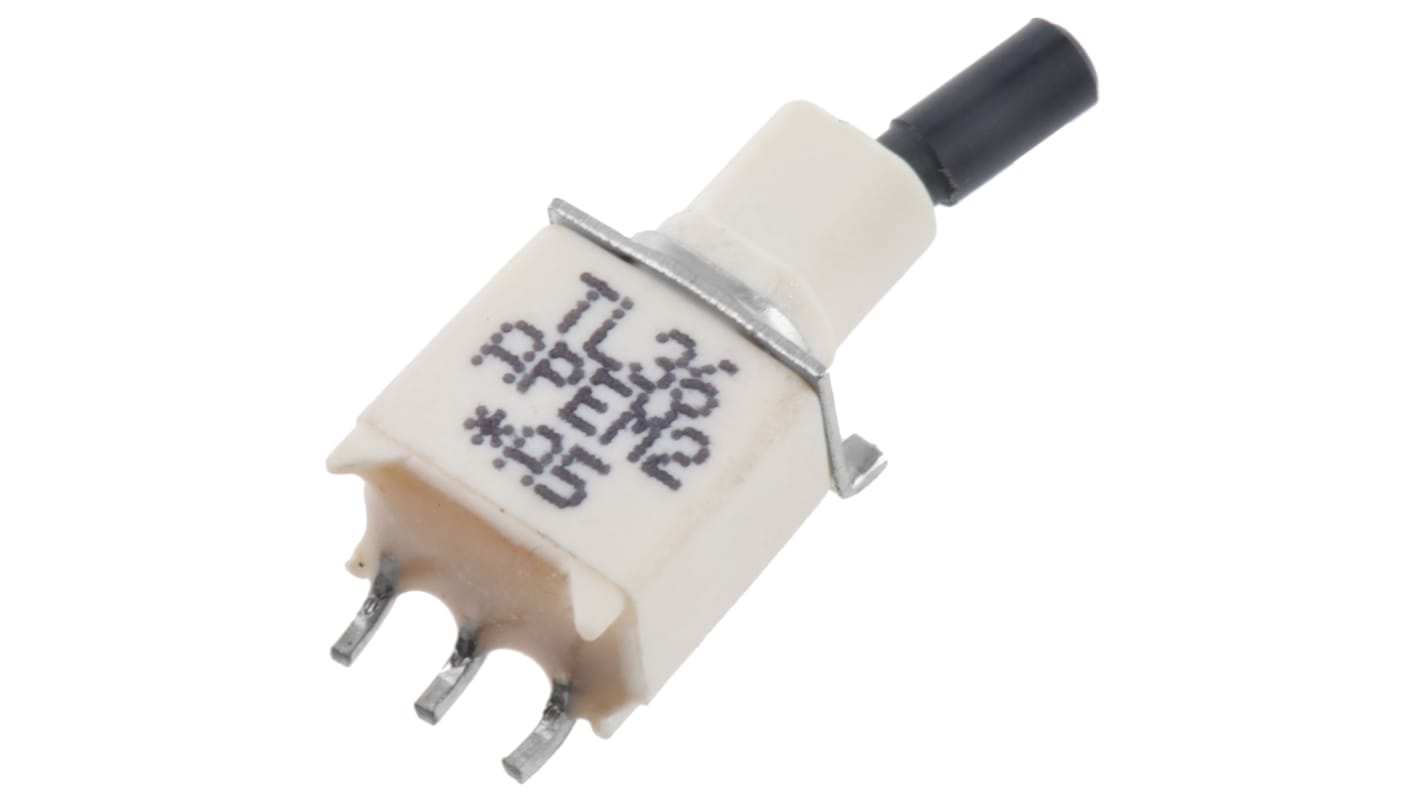

Surface Mount Gull Wing Toggle Switches
Gull-wing, surface mount toggle switches for infrared and vapour-phase soldering
5 point mounting for strength & stability
ESD protected to 10kV
Gold plated brass contacts
Sealed against process washing
Chrome Plated Brass actuator and High Temperature Plastic (UL94V-0) case
Minimum load: 10mA @ 50mV or 10μA @ 5Vdc
5 point mounting for strength & stability
ESD protected to 10kV
Gold plated brass contacts
Sealed against process washing
Chrome Plated Brass actuator and High Temperature Plastic (UL94V-0) case
Minimum load: 10mA @ 50mV or 10μA @ 5Vdc
Note
For biased switches '(on)' refers to momentary 'on' position
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPDT |
Switch Operation | On-On |
Contact Current Rating | 400 mA @ 20 V dc |
Mounting Type | PCB |
Terminal Type | Surface Mount |
Actuator Length | 5.5mm |
Actuator Material | Chromium Plated Brass |
Contact Resistance | 0.02Ω |
Contact Material | Gold Plated Brass |
Minimum Operating Temperature | -40°C |
Mechanical Life | 6 x 10^4Operations |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
- RS Stock No.:
- 219-3722
- Mfr. Part No.:
- TL36WS84
- Brand:
- APEM
