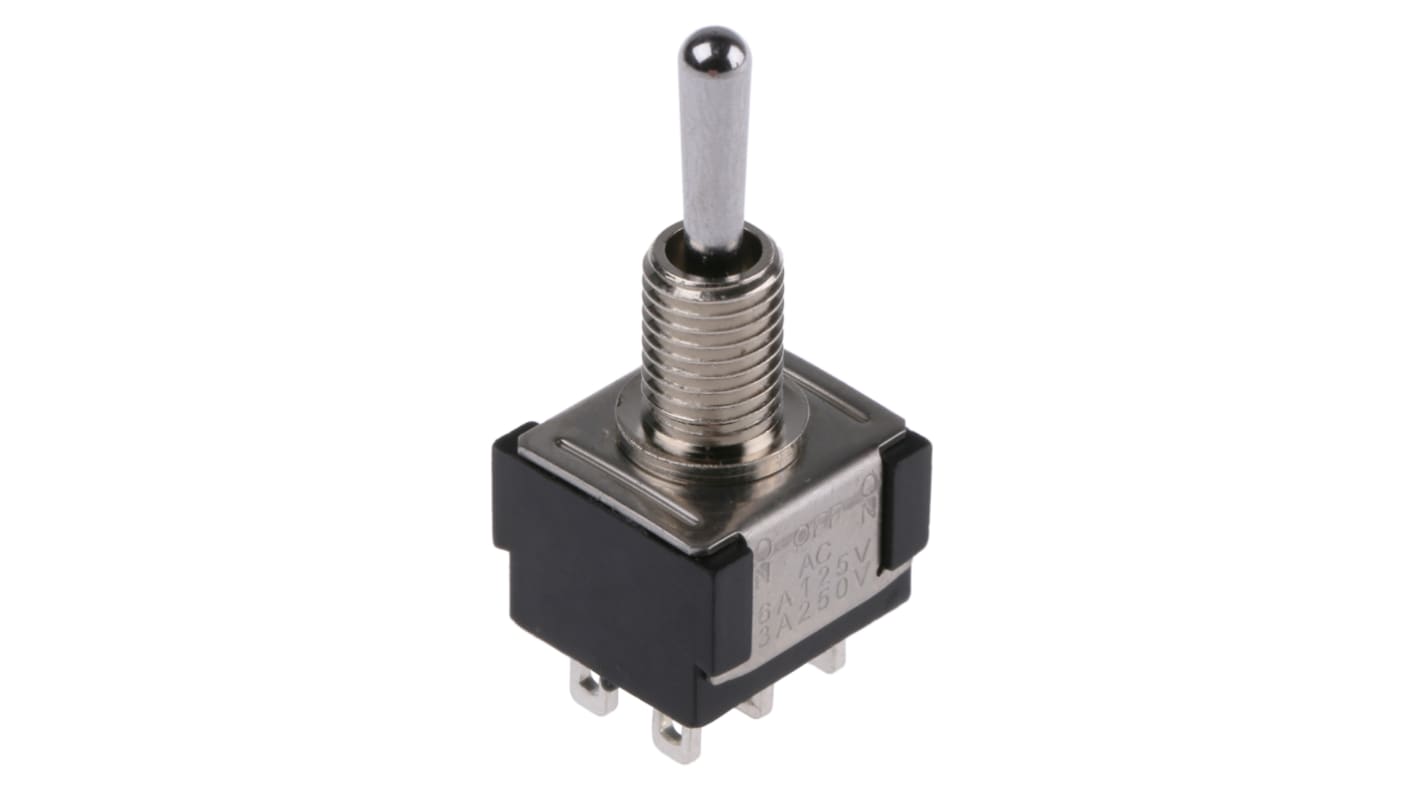

KNITTER-SWITCH DPDT Toggle Switch, On-Off-On, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Toggle Switches - MTA Series

2 and 3 position double pole panel mount toggle switches
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case

Note

For biased switches '(on)' refers to momentary 'on' position

//media.rs-online.com/t_line/LK134075-01.gif
//media.rs-online.com/t_line/LK134081-01.gif

Approvals

7777

Specifications
Attribute Value
Contact Configuration DPDT
Switch Operation On-Off-On
Contact Current Rating 4 A @ 30 V dc
Mounting Type Panel Mount
Terminal Type Solder
Actuator Length 10.5mm
Contact Resistance 10mΩ
Mechanical Life 300000Operations
Maximum Operating Temperature +140°C
Minimum Operating Temperature -45°C
Contact Material Silver Plated Copper Alloy
Operating Temperature Range -45 → +140°C
99 In stock - FREE next working day delivery available
Price Each
£ 8.95
(exc. VAT)
£ 10.74
(inc. VAT)
Units
Per unit
1 - 24
£8.95
25 - 49
£7.56
50 - 99
£6.51
100 - 249
£5.82
250 +
£5.45
