- RS Stock No.:
- 199-0948
- Mfr. Part No.:
- MTA 206 N
- Brand:
- KNITTER-SWITCH
- RS Stock No.:
- 199-0948
- Mfr. Part No.:
- MTA 206 N
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

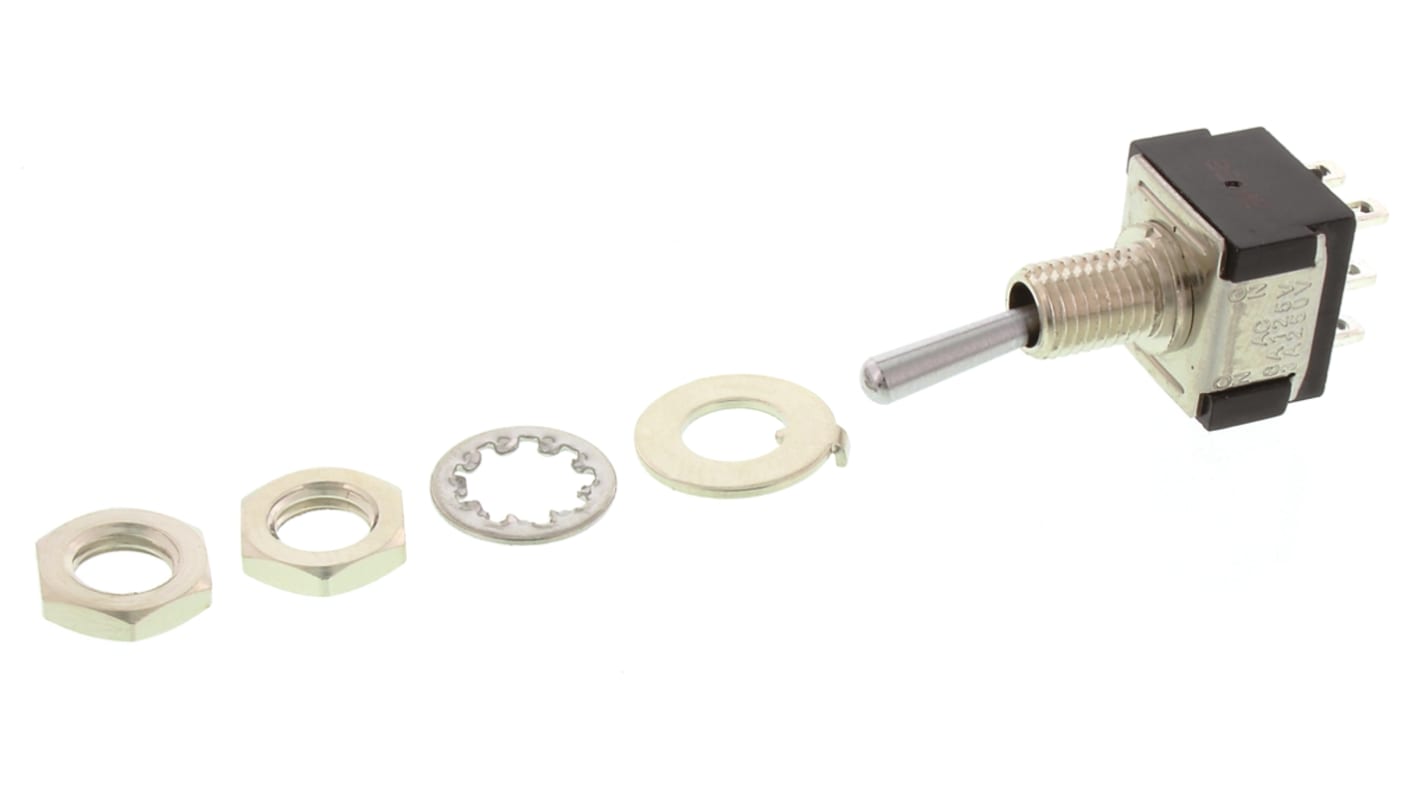

Knitter Switch Miniature Toggle Switches - MTA Series
2 and 3 position double pole panel mount toggle switches
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Note
For biased switches '(on)' refers to momentary 'on' position
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Switch Operation | On-On |
Contact Current Rating | 4 A @ 30 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Actuator Length | 10.5mm |
Actuator Material | Copper Alloy |
Contact Material | Silver Plated Copper Alloy |
Contact Resistance | 0.01Ω |
Maximum Operating Temperature | +140°C |
Minimum Operating Temperature | -45°C |
Operating Temperature Range | -45 → +140°C |
Mechanical Life | 200000Cycles |
