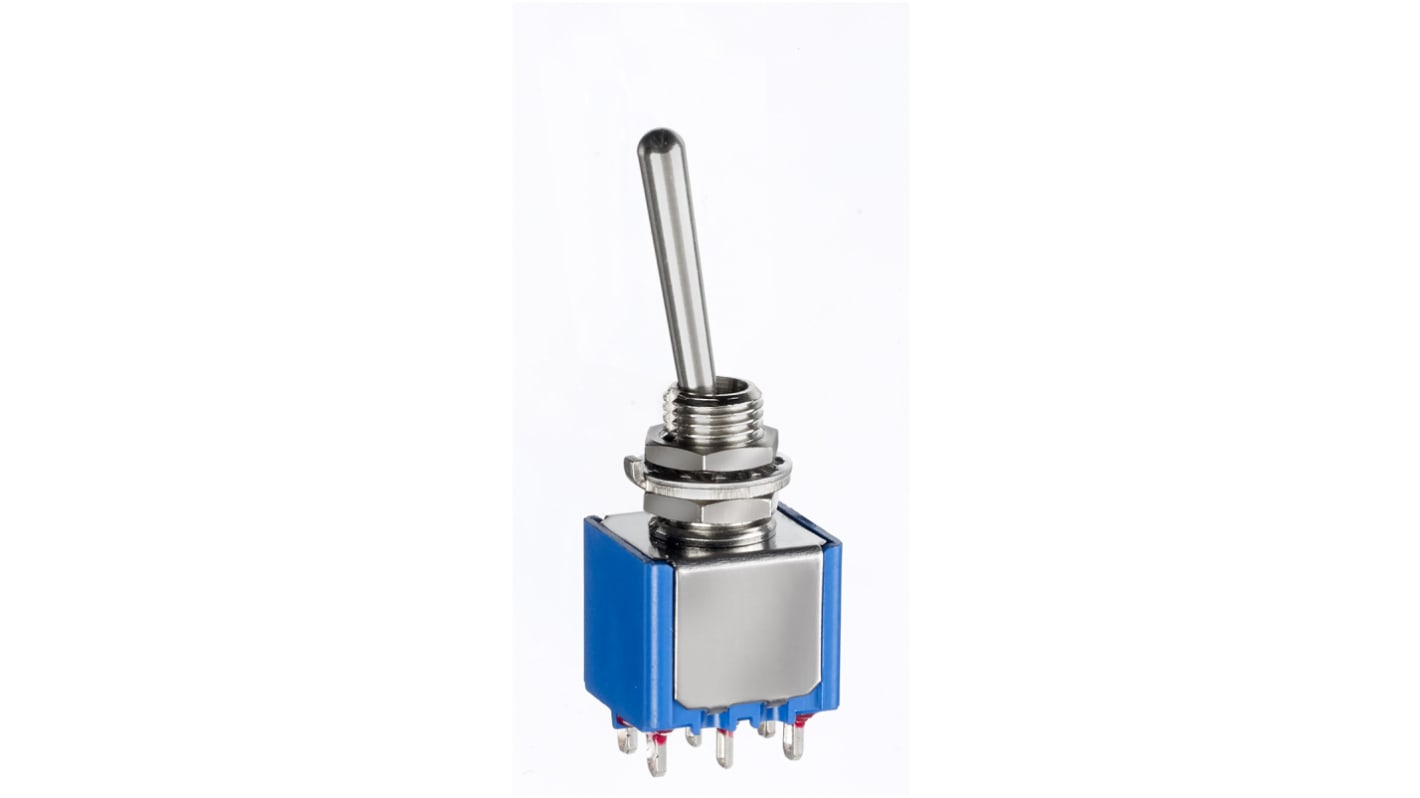

APEM DPDT Toggle Switch, (On)-Off-(On), Panel Mount

  • RS Stock No. 165-1473
  • Mfr. Part No. 5647AB-2
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

The widest range in Miniature toggle Switches Diameter 6.35 mm Available in a wide model & amp options

17 actuators including toggles, paddle Levers and Locking levers in Different lengths5 contact materials from dry circuits 6A 125VAC and high inrush up to 120A 2ms8 functions including maintained and momentary versions1 to 4 pole configurations12 terminal types including 9 for PC board mounting others types include quick connect and wire-wrap3 types of Finish including military black4 types of sealing of terminal or front panel requirementsNumerous accessories available for actuator and bushing options

Specifications
Attribute Value
Contact Configuration DPDT
Switch Operation (On)-Off-(On)
Contact Current Rating 3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac
Mounting Type Panel Mount
Terminal Type Solder
Illuminated No
Panel Cut Out Diameter 6.5mm
Actuator Length 17.8mm
Actuator Material Chrome Plated Brass
Voltage Rating 30 V dc, 125 V ac, 250 V ac
Contact Resistance 10mΩ
Operating Temperature Range -40 +85°C
Panel Cut Out Size 6.5 Dia.mm
Contact Material Silver
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Standards Met CECC 96201-007, CSA, CULus Recognised, UL Listed, VDE
4 In stock for FREE next working day delivery
Price Each
£ 7.30
(exc. VAT)
£ 8.76
(inc. VAT)
Units
Per unit
1 - 24
£7.30
25 - 49
£6.94
50 - 99
£6.57
100 +
£6.21
