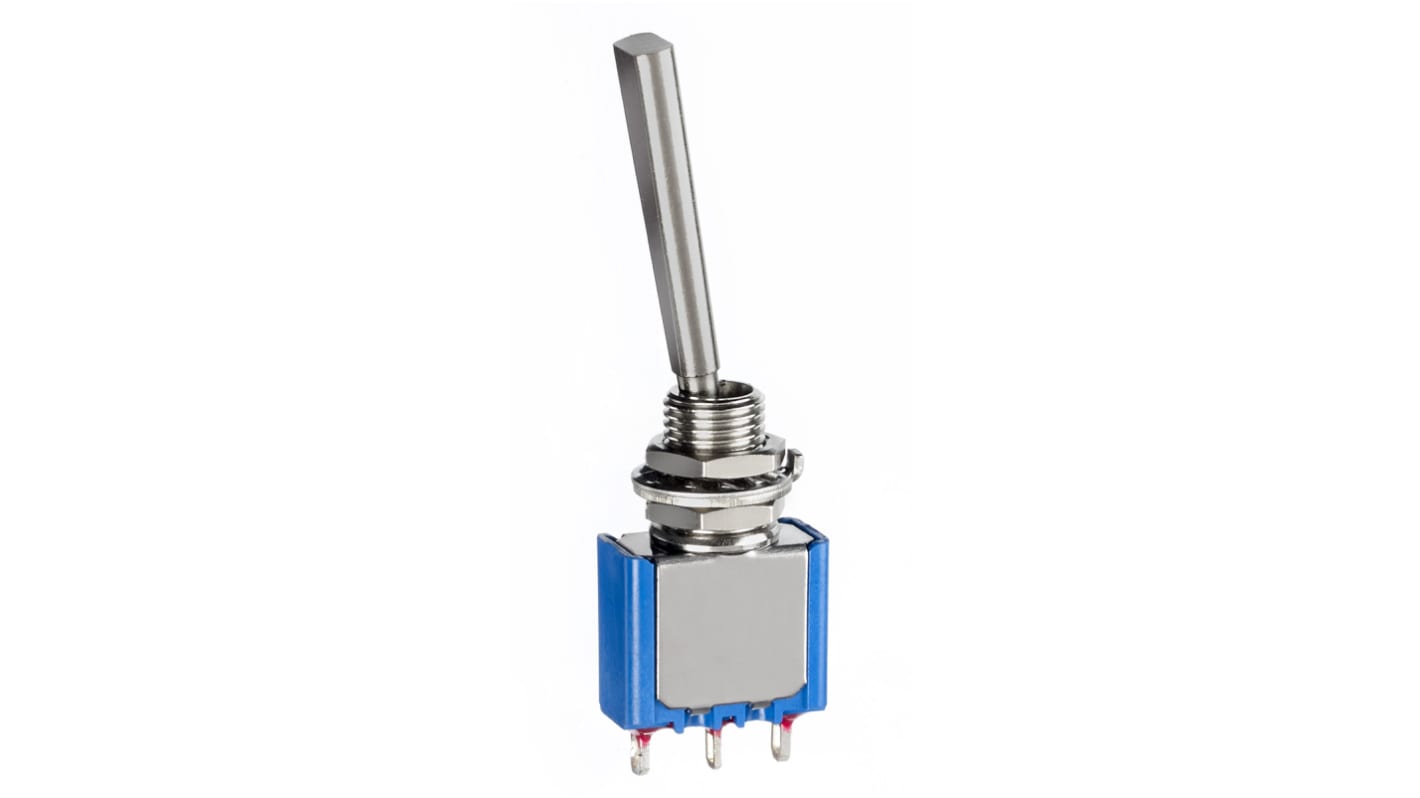

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac
- RS Stock No.:
- 165-1454
- Mfr. Part No.:
- 5637AB-8
- Brand:
- APEM
8 In stock - FREE next working day delivery available
Added
Price Each
£10.32
(exc. VAT)
£12.38
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £10.32 |
| 25 - 49 | £8.46 |
| 50 - 99 | £7.74 |
| 100 - 249 | £7.24 |
| 250 + | £6.61 |
- RS Stock No.:
- 165-1454
- Mfr. Part No.:
- 5637AB-8
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
The widest range in Miniature toggle Switches Diameter 6.35 mm Available in a wide model & amp options
17 actuators including toggles, paddle Levers and Locking levers in Different lengths
5 contact materials from dry circuits 6A 125VAC and high inrush up to 120A 2ms
8 functions including maintained and momentary versions
1 to 4 pole configurations
12 terminal types including 9 for PC board mounting others types include quick connect and wire-wrap
3 types of Finish including military black
4 types of sealing of terminal or front panel requirements
Numerous accessories available for actuator and bushing options
5 contact materials from dry circuits 6A 125VAC and high inrush up to 120A 2ms
8 functions including maintained and momentary versions
1 to 4 pole configurations
12 terminal types including 9 for PC board mounting others types include quick connect and wire-wrap
3 types of Finish including military black
4 types of sealing of terminal or front panel requirements
Numerous accessories available for actuator and bushing options
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder Lug |
| Illuminated | No |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 21.3mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 30 V dc, 125 V ac, 250V ac |
| Contact Resistance | 10mΩ |
| Panel Cut Out Size | 6.5 Dia.mm |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | CECC 96201-007, CSA, cULus Recognised, UL Listed, VDE |
