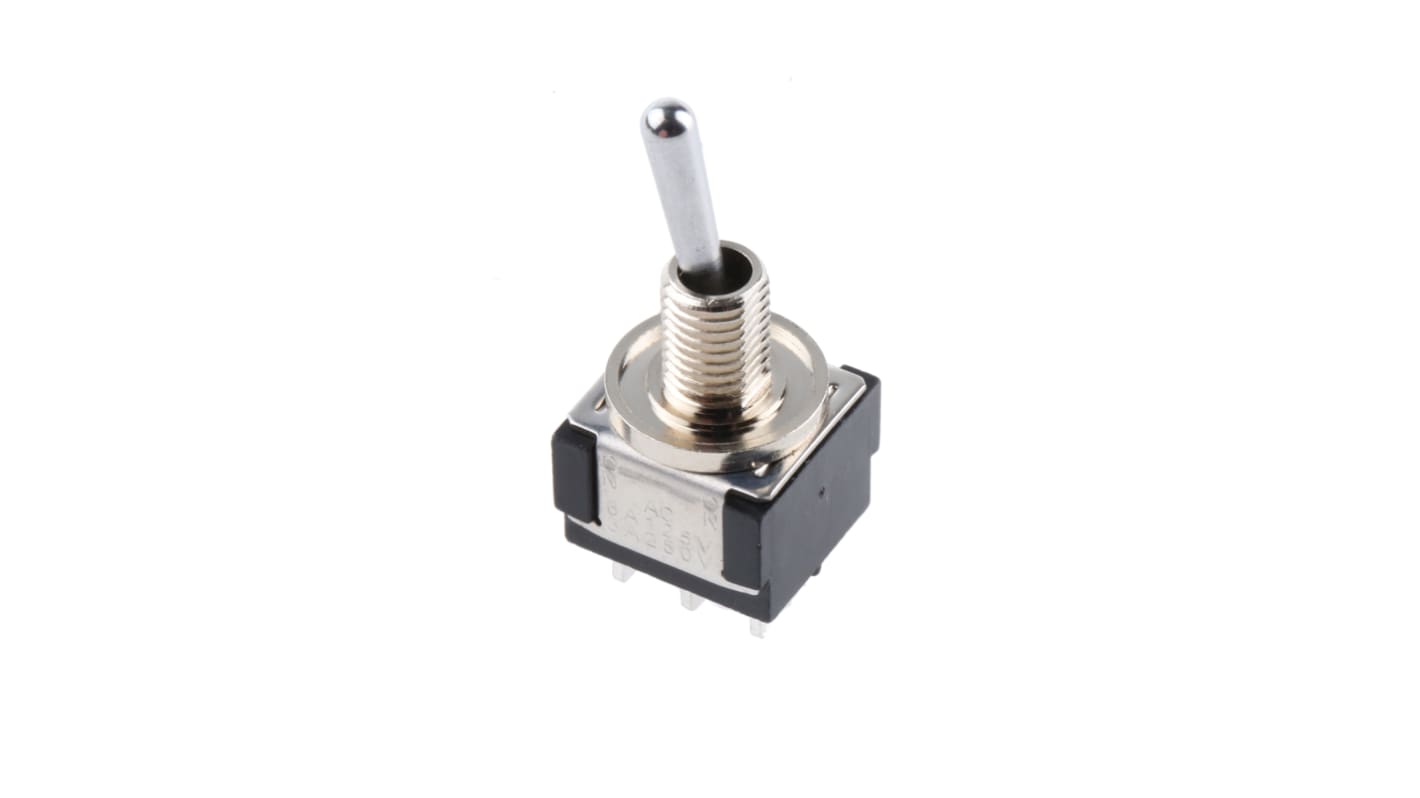

KNITTER-SWITCH Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

MTE Series - Waterproof IP67

2 and 3 position, single, double and triple pole panel mount toggle switches
Chromium-plated actuator
Solder tags; copper alloy silver plated
Silver plated contacts
Max. panel thickness; 1.5mm

Approvals

UL

//media.rs-online.com/t_line/L134110-01.jpg
Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation Latching
Contact Current Rating 4 A @ 30 V dc
Mounting Type Panel Mount
Terminal Type Solder
Actuator Length 10.5mm
Contact Resistance 10mΩ
Minimum Operating Temperature -45°C
Operating Temperature Range -45 → +140°C
Mechanical Life 100000Operations
Contact Material Silver Plated Copper Alloy
Maximum Operating Temperature +140°C
176 In stock for FREE next working day delivery
Price Each
£ 7.90
(exc. VAT)
£ 9.48
(inc. VAT)
Units
Per unit
1 - 24
£7.90
25 - 49
£6.65
50 - 99
£5.80
100 - 249
£5.69
250 +
£5.56
