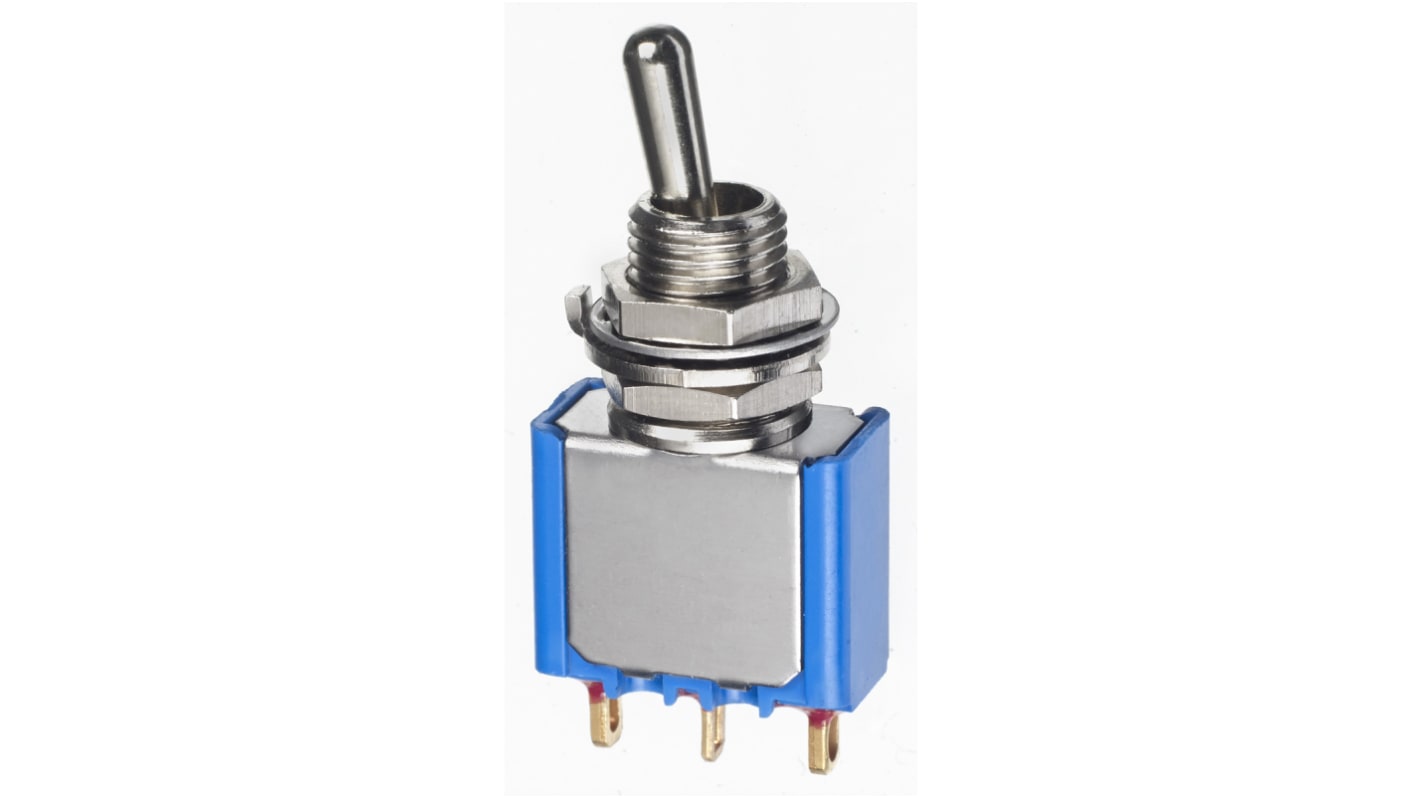

APEM SPDT Toggle Switch, (On)-Off-On, Panel Mount

  • RS Stock No. 123-2414
  • Mfr. Part No. 5637CDB17
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Apem 5000 Series Short Lever Toggle Switch

Apem 5000 series of short lever toggle switches provide a reliable & robust solution to a wide variety of applications. Contacts on the toggle switches are gold plated, offering unrivaled connectivity and arcing resistance. Thanks to an IP67 rating, the 5000 series can be used within both internal & external applications.

Features and Benefits

Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Suitable for use within both internal & external applications thanks to an IP67 rating.

Specifications
Attribute Value
Contact Configuration SPDT
Switch Operation (On)-Off-On
Contact Current Rating 10 mA
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.5mm
Actuator Length 7mm
Actuator Material Brass
Voltage Rating 20V ac/dc
Contact Resistance 10mΩ
Contact Material Brass
Minimum Operating Temperature -40°C
Operating Temperature Range -40 +85°C
Maximum Operating Temperature +85°C
Panel Cut Out Size 6.5 (Dia.)mm
Standards Met CECC 96201-007, CSA, UL, UL Recognised, VDE
88 In stock for FREE next working day delivery
Price Each
£ 6.22
(exc. VAT)
£ 7.46
(inc. VAT)
Units
Per unit
1 - 49
£6.22
50 - 99
£5.90
100 - 249
£4.07
250 - 499
£3.69
500 +
£3.31
