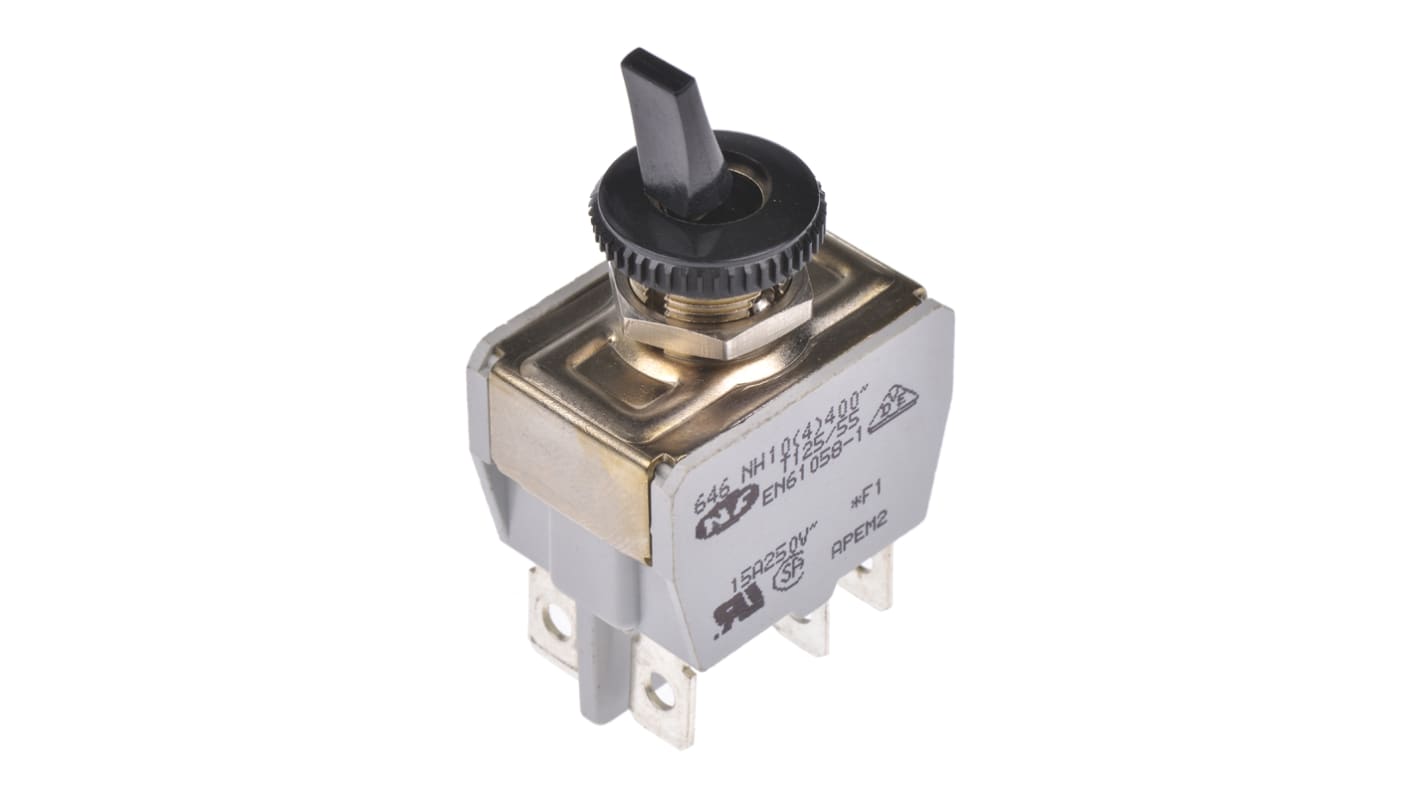

APEM DPDT Toggle Switch, Latching, Panel Mount

  • RS Stock No. 665-685
  • Mfr. Part No. 646NH/2
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Toggle Switches, Std, 15A Flat Insulated Lever

Single and double pole switches with a choice of flat insulated or traditional metal levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts

Note

All have a contact resistance of 10mΩ or less
For biased switches '(on)' refers to momentary 'on' position

Specifications
Attribute Value
Contact Configuration DPDT
Switch Operation Latching
Contact Current Rating 10 A @ 24 V dc
Mounting Type Panel Mount
Terminal Type Tab
Actuator Length 13.5mm
Actuator Material Polyamide
Contact Resistance 10mΩ
Maximum Operating Temperature +55°C
Contact Material Silver Nickel Alloy
Operating Temperature Range -20 → +55°C
Minimum Operating Temperature -20°C
153 In stock - FREE next working day delivery available
Price Each
£ 8.68
(exc. VAT)
£ 10.42
(inc. VAT)
Units
Per unit
1 - 24
£8.68
25 - 49
£7.29
50 - 99
£6.80
100 - 249
£6.28
250 +
£5.28
