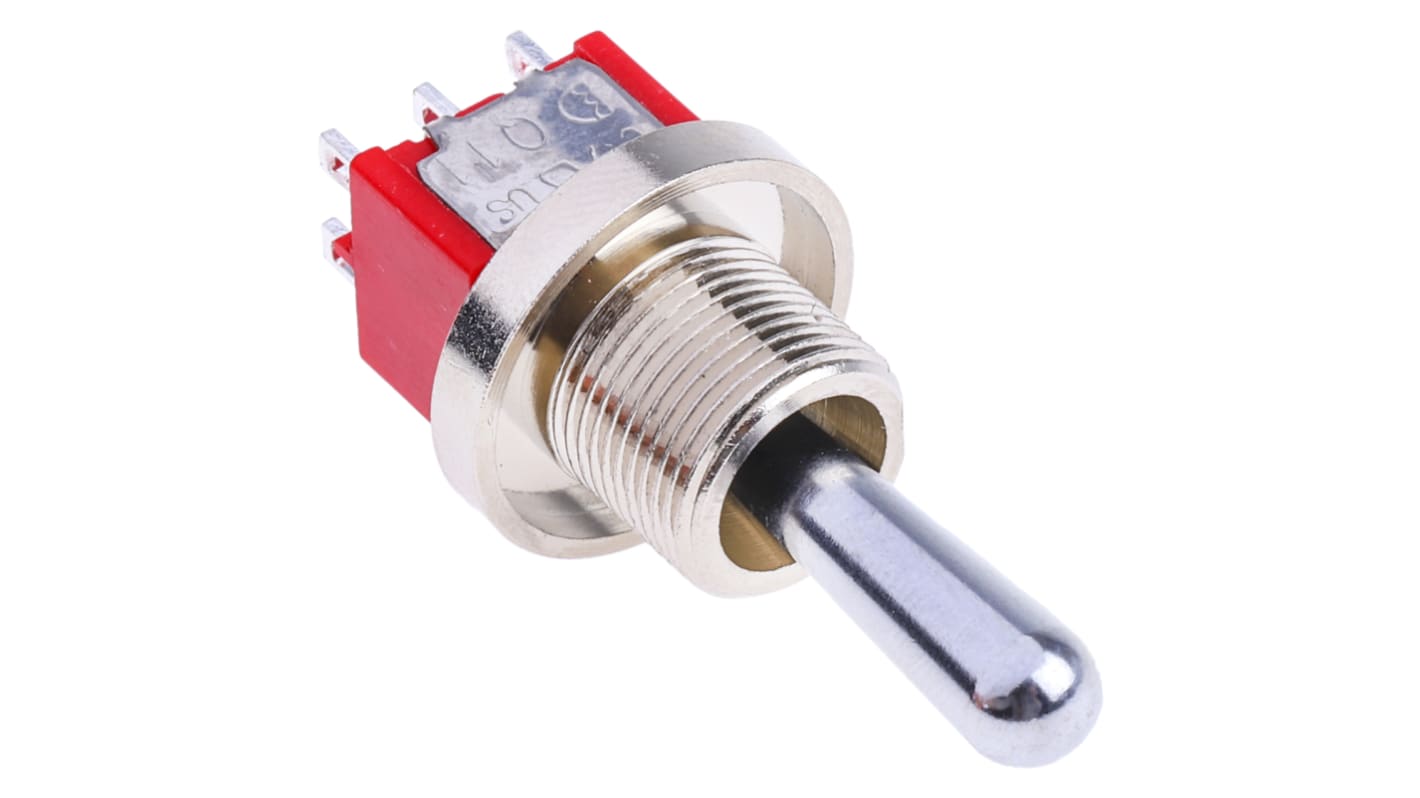

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, (On)-Off-(On), Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Large Lever Toggle Switches

Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL E187490

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation (On)-Off-(On)
Contact Current Rating 5 A @ 28 V dc
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 11.91mm
Actuator Length 17.56mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Standards Met RoHS & Lead Free
Contact Material Silver
Minimum Operating Temperature -30°C
Mechanical Life 40000Operations
Panel Cut Out Size 11.91mm
Maximum Operating Temperature +85°C
Operating Temperature Range -30 +85°C
