TE Connectivity Single Pole Double Throw (SPDT) Toggle Switch, Latching, Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

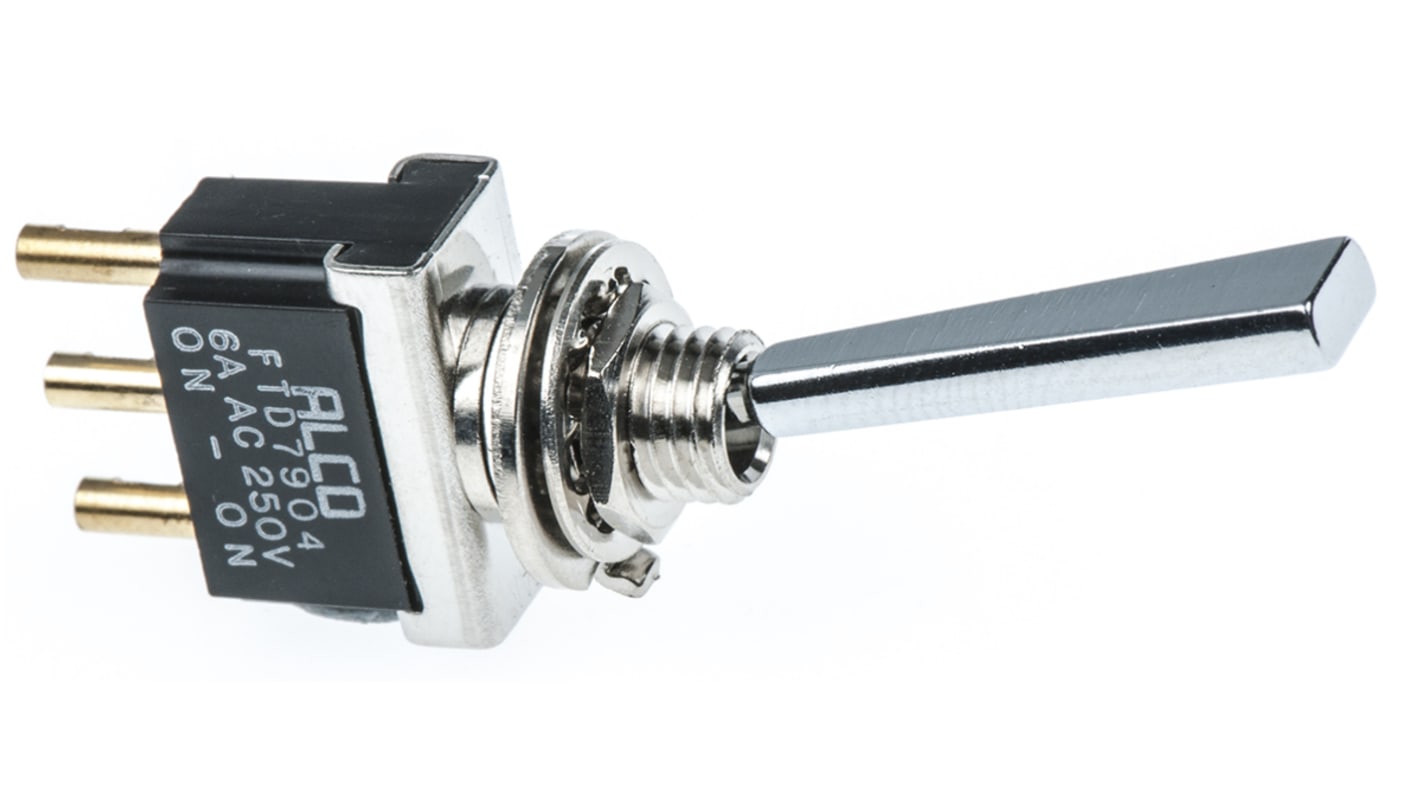

Toggle Switches, Min, Long Flat Lever

Switches with a chrome-finished long flat lever, offering attractive style and ease of operation
Gold contacts: Stock nos: 317-617, 317-639 & 317-623
Silver contacts: Stock nos: 317-645, 317-651 & 317-673
Lower user operating force
Glass Filled Polyester case

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

CSA

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation Latching
Contact Current Rating 6 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.2mm
Actuator Length 21.5mm
Actuator Material Chrome Plated Brass
Contact Resistance 10mΩ
Panel Cut Out Size 6.2mm
Minimum Operating Temperature -20°C
Operating Temperature Range -20 +80°C
Mechanical Life 50000Operations
Contact Material Silver
Maximum Operating Temperature +80°C
Standards Met CSA Recognised, RoHS, UL 94V-0
