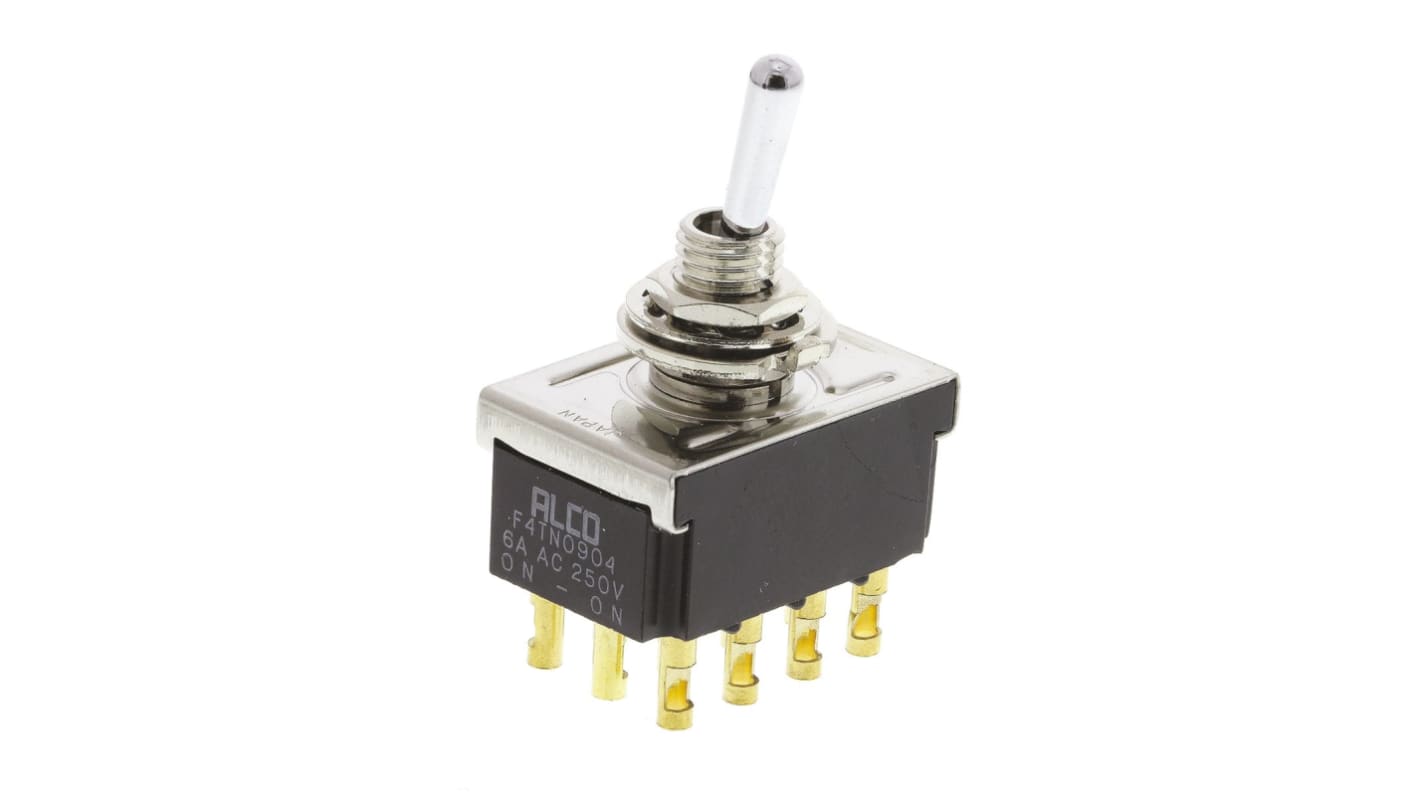

TE Connectivity Toggle Switch, Panel Mount, On-On, 4PDT, Solder Terminal, 125V ac
- RS Stock No.:
- 316-995
- Mfr. Part No.:
- F4TN0904
- Brand:
- TE Connectivity
189 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£13.31
(exc. VAT)
£15.97
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £13.31 |
| 50 - 99 | £12.31 |
| 100 - 249 | £11.90 |
| 250 - 499 | £11.49 |
| 500 + | £11.10 |
- RS Stock No.:
- 316-995
- Mfr. Part No.:
- F4TN0904
- Brand:
- TE Connectivity
Legislation and Compliance
Product Details
Toggle Switches, Min, Professional
Note
Care should be taken when soldering not to overheat the switch assembly
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
CSA
Approvals
CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 4PDT |
| Switch Operation | On-On |
| Contact Current Rating | 4 A @ 30 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 10.5mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 125 V ac, 250V ac |
| Contact Resistance | 0.01Ω |
| Contact Material | Fine Silver |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80°C |
| Maximum Operating Temperature | +80°C |
| Mechanical Life | 100000Operations |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 |
