APEM Toggle Switch, Panel Mount, On-Off-On, 3PDT, Solder Terminal

RS Stock No.:: 224-091
Mfr. Part No.:: 5659A
Brand:: APEM

APEM Toggle Switch, Panel Mount, On-Off-On, 3PDT, Solder Terminal

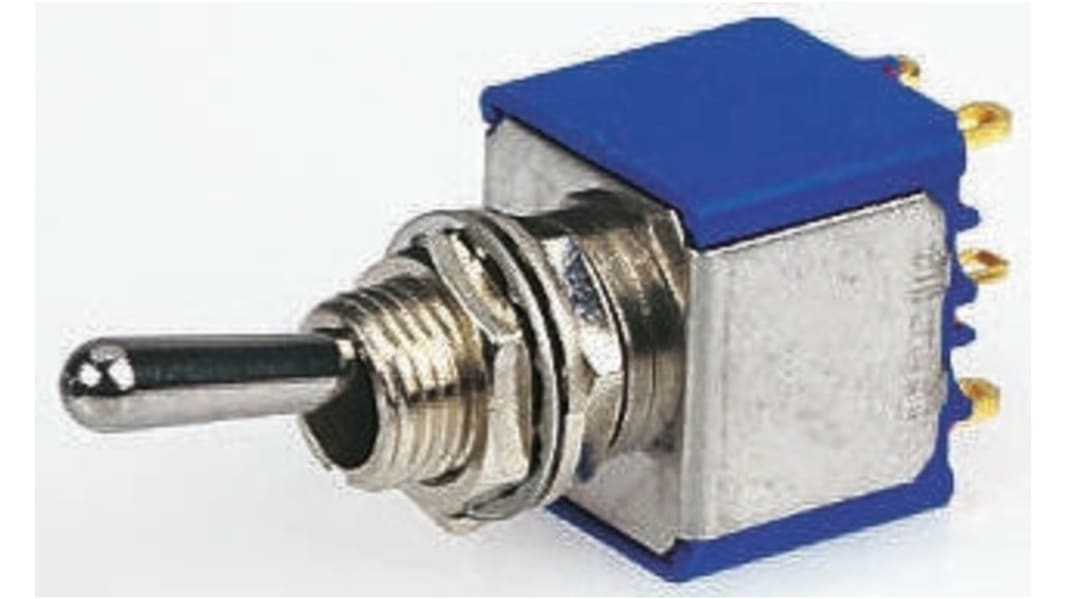

Image representative of range

63 In stock - FREE next working day delivery available

18 available from Europe for delivery within 1 working day(s).

Added

Price Each

£12.38

(exc. VAT)

£14.86

(inc. VAT)

Units	Per unit
1 - 24	£12.38
25 - 49	£10.15
50 - 99	£9.27
100 - 249	£8.66
250 +	£7.93

RS Stock No.:: 224-091
Mfr. Part No.:: 5659A
Brand:: APEM

Technical Reference

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Toggle Switches, Standard Lever

Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Panel cut-out 6.35 mm

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO

Approvals

UL; CSA; CECC; LNZ; GAM T1; (Europe); MUAHAG; NATO; VDE

Specifications

Attribute	Value
Contact Configuration	3PDT
Switch Operation	On-Off-On
Contact Current Rating	4 A @ 30 V dc
Mounting Type	Panel Mount
Terminal Type	Solder
Actuator Material	Brass
Contact Material	Silver
Contact Resistance	0.01Ω
Mechanical Life	100000Operations
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
