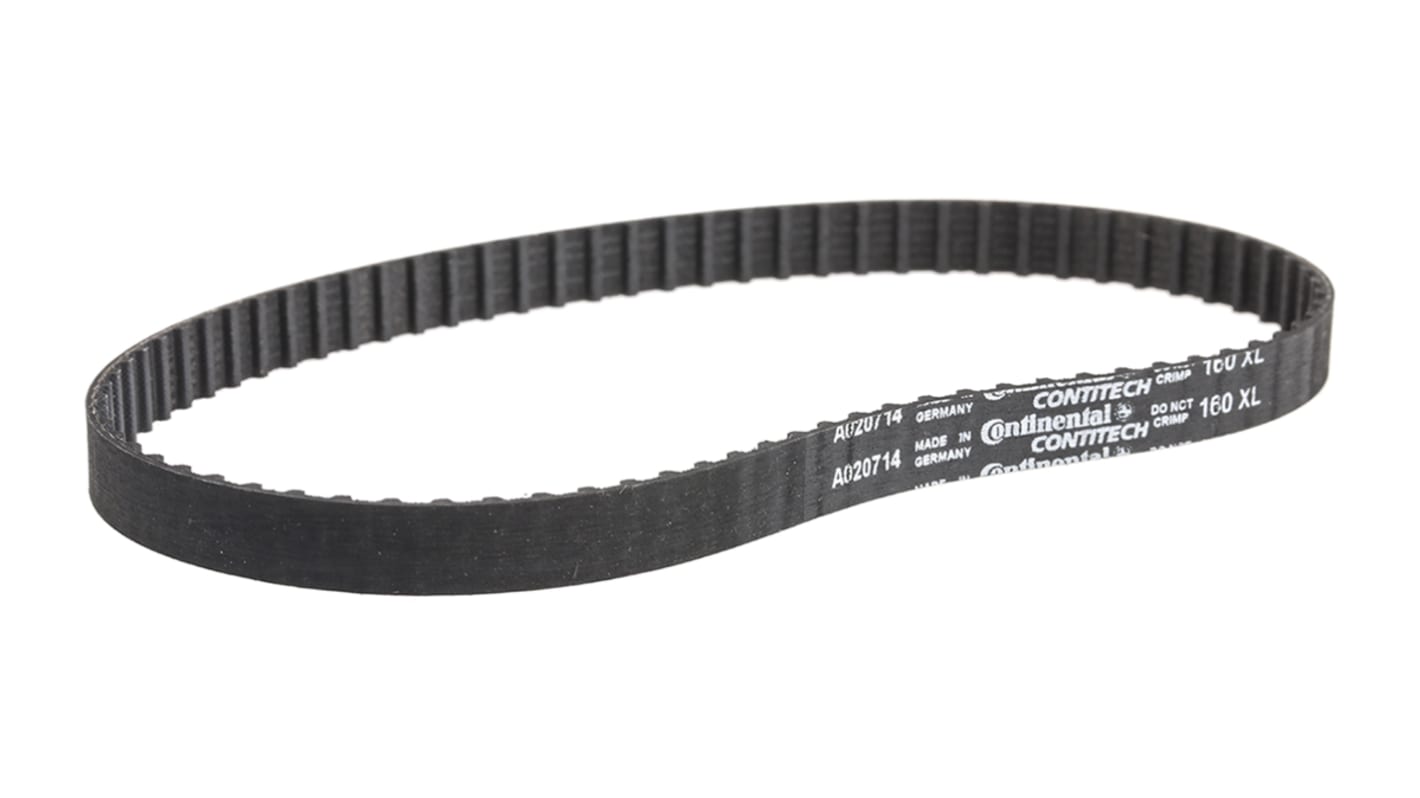

Contitech 160 XL 037, Timing Belt, 80 Teeth, 406.5mm Length X 9.4mm Width

  • RS Stock No. 474-9513
  • Mfr. Part No. 160 XL 037
  • Brand Contitech
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Conti Synchrobelt®

Moderately oil resistant
Resistant to temperatures from -20°C to +100°C, depending on application
Non-ageing and ozone resistant
Suitable for tropical climates

//media.rs-online.com/t_line/L338736-01.gif
Specifications
Attribute Value
Length 406.5mm
Width 9.4mm
Pitch 5.08mm
Number of Teeth 80
Material Rubber
Maximum Speed 60m/s
Tooth Height 1.27mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
61 In stock - FREE next working day delivery available
Price Each
£ 2.51
(exc. VAT)
£ 3.01
(inc. VAT)
Units
Per unit
1 - 4
£2.51
5 - 9
£2.39
10 - 24
£2.35
25 +
£2.30
