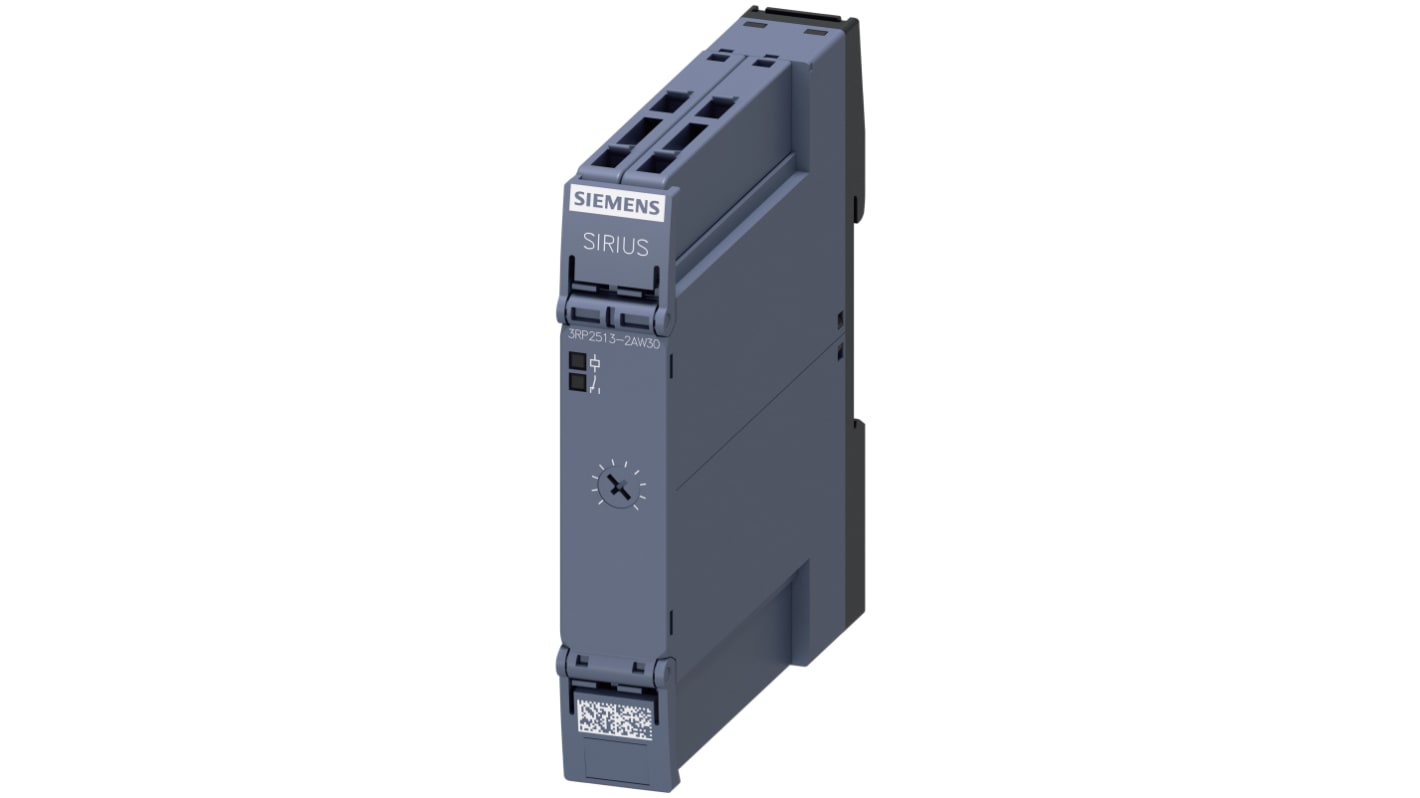

Siemens 3RP25 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 1-Contact, 5 → 100s, 1-Function, SPDT
- RS Stock No.:
- 831-6038
- Mfr. Part No.:
- 3RP2513-2AW30
- Brand:
- Siemens
Available to back order for despatch 27/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£52.56
(exc. VAT)
£63.07
(inc. VAT)
| Units | Per unit |
| 1 + | £52.56 |
- RS Stock No.:
- 831-6038
- Mfr. Part No.:
- 3RP2513-2AW30
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Siemens SIRIUS 3RP25 - On-Delay Timer Relay
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
On-delay time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | ON Delay |
| Time Range | 5 → 100s |
| Number of Contacts | 1 |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Seconds |
| Maximum Current | 3A |
| Maximum Voltage | 240V ac/dc |
| Switch Configuration | SPDT |
| Terminal Type | Cage Clamp |
| Minimum Voltage | 12V ac/dc |
| Width | 17.5mm |
| Maximum Operating Temperature | +60°C |
| Series | 3RP25 |
| Depth | 100mm |
| Length | 90mm |
| Minimum Operating Temperature | -25°C |
| Contact Material | AgSnO2 |
| Time Delay | 250ms |
