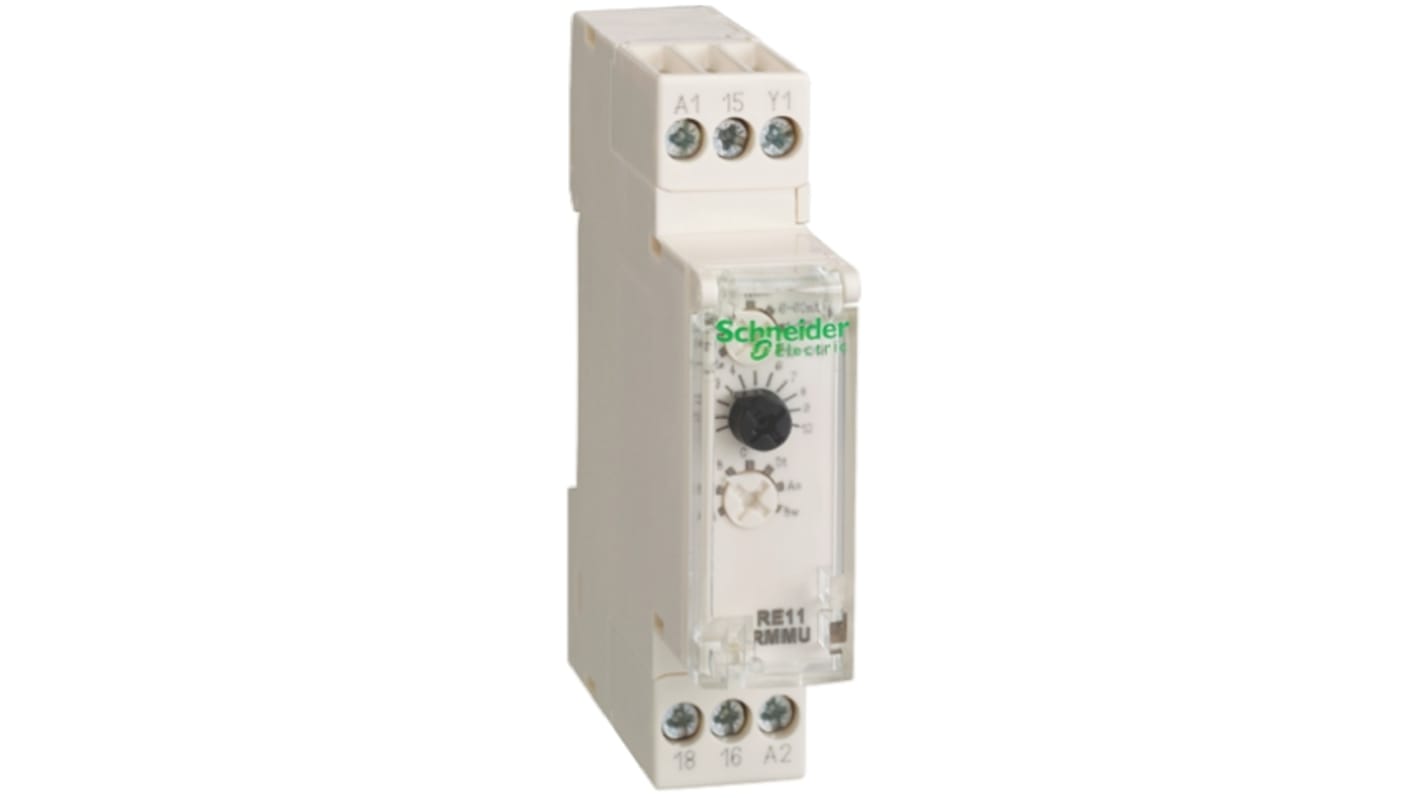

Multifunctional Timers - Zelio RE11 Series

The Zelio RE11 series of multifunctional time switches replaces the older RE7 series offering increased functionality within a new style package design.

Up to ten functions possible including 111, 132, 451, 521, 211, 612, 611, 421, plus 2 non RS timing functions
Large timing range of 0.1 seconds → 100 hours
Mounting type: 35 mm symmetrical mounting rail
Mechanical life of up to 5000000 cycles / 100000000 cycles
Operating temperature range between: -20 → +60 °C
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Protection class rating: IP20 (terminal block), IP40 (housing) and IP50 (front panel)
Termination type: (screw terminals, clamping capacity: 1 x 4 mm without cable end), (screw terminals, clamping capacity: 2 x 1.5 mm with cable end) and (screw terminals, clamping capacity: 2 x 2.5 mm without cable end)

Approvals

CSA, CULus, CE

Standards

IEC 61812-1

Approvals

CSA, CULus, GL, CE

Specifications
Attribute Value
Supply Voltage 12 → 240 V
Time Range 0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100 h
Mode of Operation Interval, OFF/ON/ON Delay, One Shot, Pulse Output, Pulse Start, Repeat Cycle
Mounting Type DIN Rail
Number of Timer Functions Multi Function
Time Increment Hours, Minutes, Seconds
Current Maximum 8 A
Minimum Voltage 10 V dc
Maximum Voltage 250 V ac/dc
Width 17.9mm
Contact Material Silver Nickel
Time Delay 100 ms
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Switch Configuration SPDT
Length 81mm
Depth 72mm
Discontinued product
