MPN

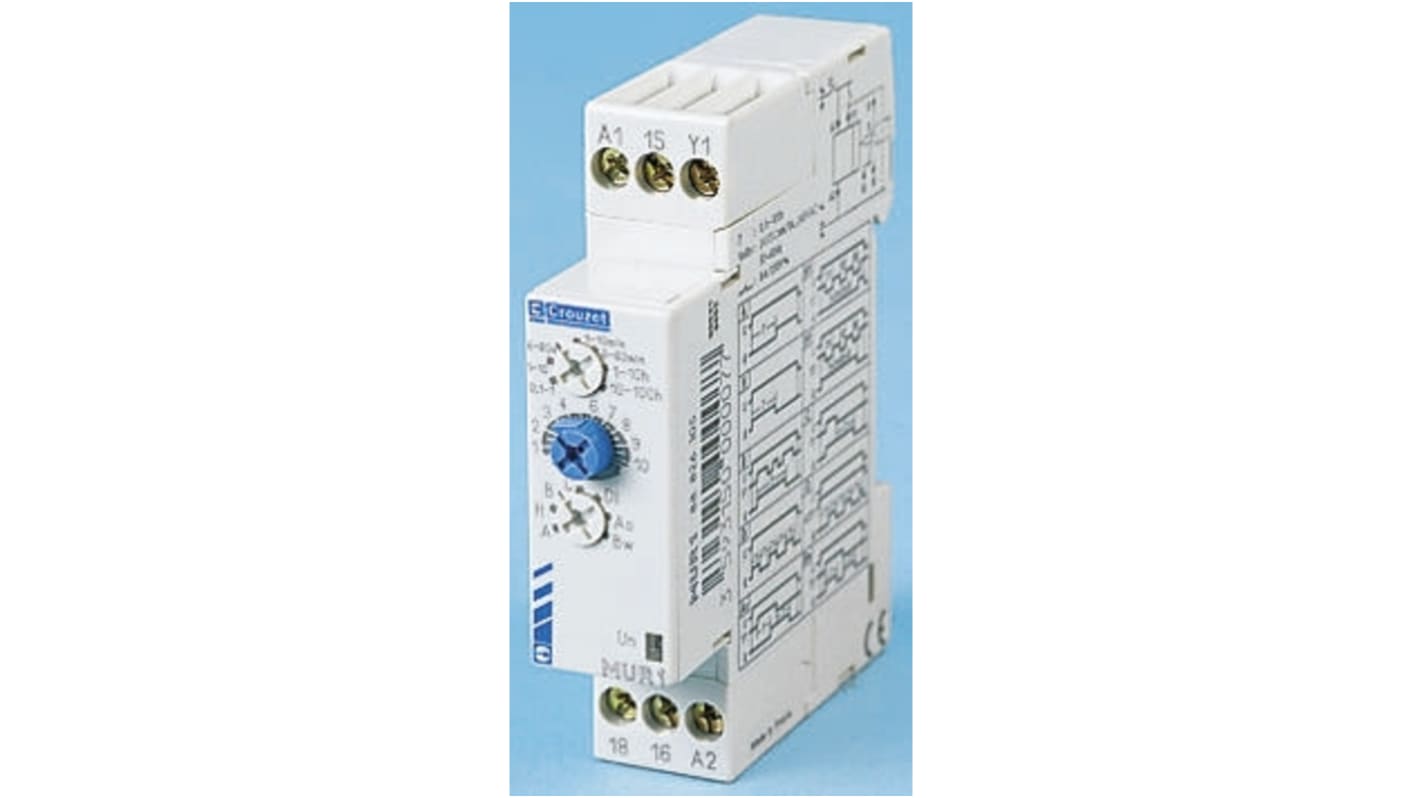

Crouzet SPDT Multi Function Time Delay Relay, 12 → 240 V ac/dc 1 → 10 min, 1 → 10 s, 1 →


Discontinued product
RS Stock No.:
385-6957
Mfr. Part No.:
88 826 503
Brand:
Crouzet

814 Series, 8 Pin, LCD


Functions - 111,211,421,451,611,612
4 digit
Four button time setting, 2 line display, actual time shown alongside set time
Symbols indicate function, status of output relay and power input
Programme change inhibit switch on side of the timer case
Lithium battery back-up
8mm character height


111,211,421,451,611,612


Approvals

UL, CSA

AttributeValue
Supply Voltage12 → 240 V ac/dc
Time Range1 → 10 min, 1 → 10 s, 1 → 100 h
Mode of OperationAC, AD, AT, B, BW, C, D, Di, H, Ht
Mounting TypeDIN Rail
Number of Timer FunctionsMulti Function
Number of Contacts1
Time IncrementHours, Minutes, Seconds
Power SupplyExternal
Contact ConfigurationSPDT
Current Maximum8 A
Terminal TypeScrew
Minimum Voltage12 V ac/dc, 24 V ac
Maximum Voltage240 V ac/dc
Width17.5mm
Length81mm
Depth60mm
Switch ConfigurationSPDT
Minimum Operating Temperature-20°C
Maximum Operating Temperature+60°C
Contact MaterialSilver Nickel
