- RS Stock No.:
- 920-3431
- Mfr. Part No.:
- SA555P
- Brand:
- Texas Instruments
100 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 50)
£0.218
(exc. VAT)
£0.262
(inc. VAT)
Units | Per unit | Per Tube* |
50 - 450 | £0.218 | £10.90 |
500 - 700 | £0.175 | £8.75 |
750 - 950 | £0.164 | £8.20 |
1000 - 1200 | £0.153 | £7.65 |
1250 + | £0.131 | £6.55 |
*price indicative |
- RS Stock No.:
- 920-3431
- Mfr. Part No.:
- SA555P
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details

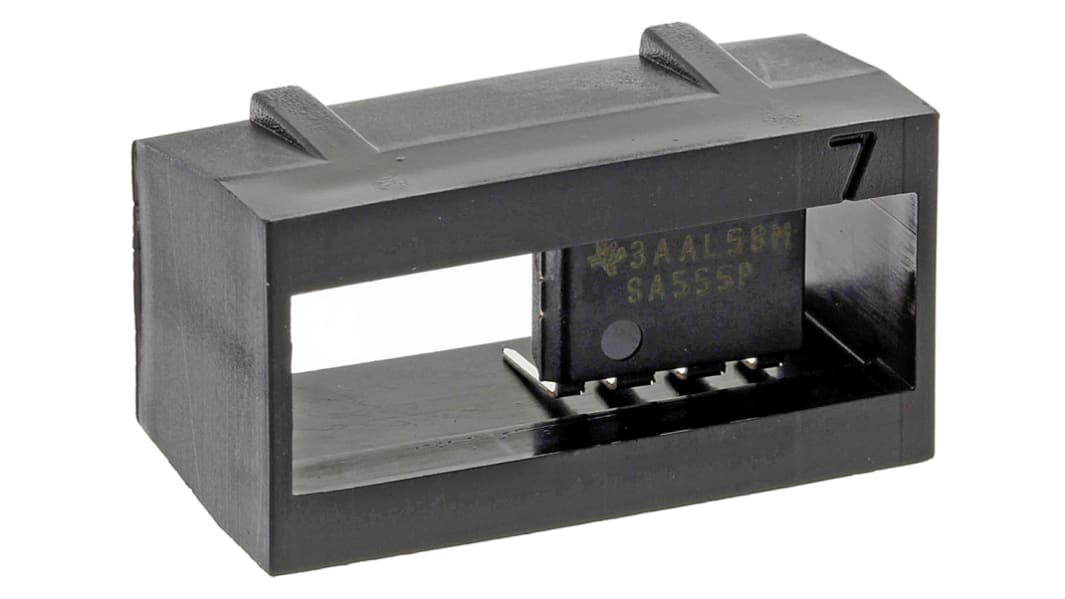

555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
Timers/Timing Generators
Specifications
Attribute | Value |
---|---|
Mounting Type | Through Hole |
Timer Type | Standard |
Package Type | PDIP |
Number of Internal Timers | 1 |
Pin Count | 8 |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 16 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Maximum Quiescent Current | 15mA |
Maximum Low Level Output Current | 200mA |
Maximum High Level Output Current | -200mA |
Height | 4.57mm |
Length | 9.81mm |
Width | 6.35mm |
Dimensions | 9.81 x 6.35 x 4.57mm |
