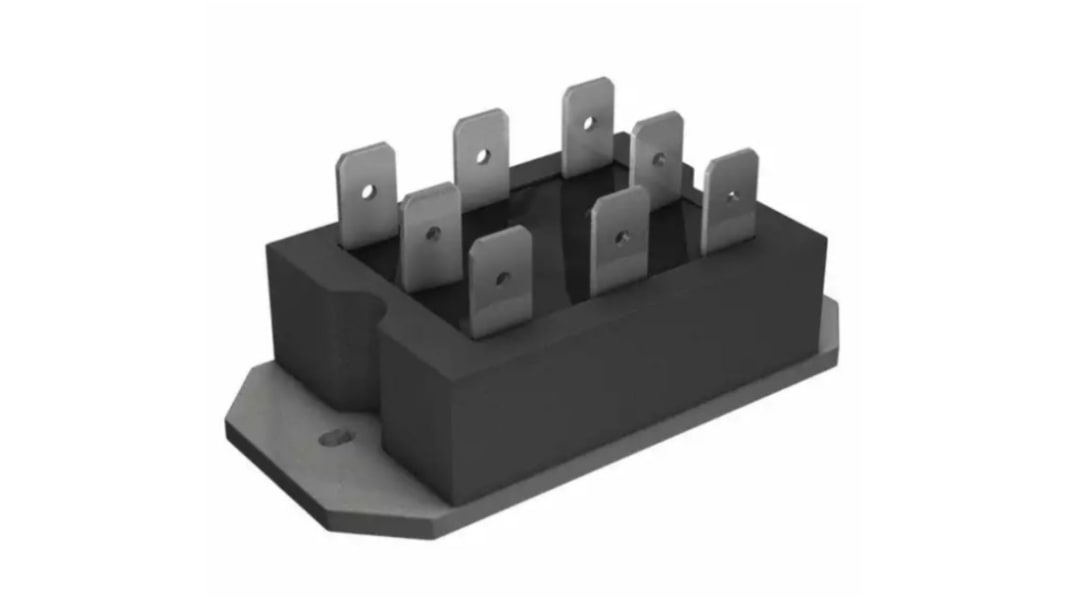

Vishay VS-P405W, Thyristor Module 1200V, 40A 60mA
- RS Stock No.:
- 700-5620
- Mfr. Part No.:
- VS-P405W
- Brand:
- Vishay
Available to back order for despatch 07/05/2024
Added
Price Each
£36.42
(exc. VAT)
£43.70
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £36.42 |
| 2 - 4 | £35.69 |
| 5 - 9 | £34.60 |
| 10 - 24 | £33.51 |
| 25 + | £32.78 |
- RS Stock No.:
- 700-5620
- Mfr. Part No.:
- VS-P405W
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
P400 Series
Single-phase and 3-phase fully controlled bridge rectifiers with isolated base plates. Connection options include Faston (with solder tips) and screw terminal.
Specifications
Attribute | Value |
|---|---|
| Rated Average On-State Current | 40A |
| Thyristor Type | SCR Module |
| Package Type | PACE-PAK |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 0.4kA |
| Mounting Type | Screw Mount |
| Maximum Gate Trigger Current | 60mA |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Holding Current | 130mA |
| Pin Count | 6 |
| Dimensions | 63.5 x 32.5 x 15.5mm |
| Repetitive Peak Off-State Current | 0.1mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.4V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 1200V |
