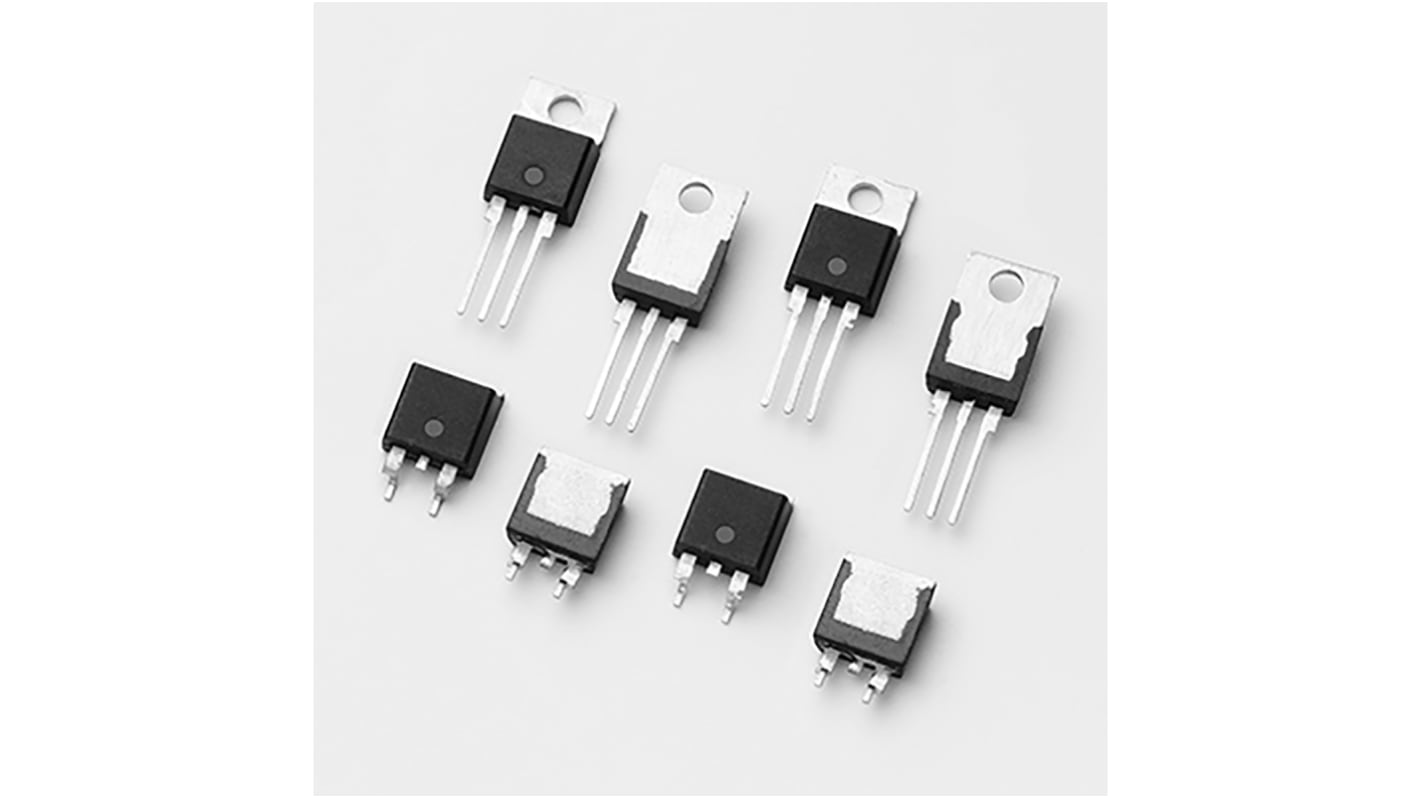

Solid state switches used to control the flow of electrical current
Often used for circuit protection in home appliance, electrical
tool and outdoor equipment applications
Wide selection of thru-hole and surface mount options available
Browse our variety of switching thyristors below
Often used for circuit protection in home appliance, electrical
tool and outdoor equipment applications
Wide selection of thru-hole and surface mount options available
Browse our variety of switching thyristors below
Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential
Glass — passivated junctions
Voltage capability up to 1000 V
Surge capability up to 350 A
Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage
Voltage capability up to 1000 V
Surge capability up to 350 A
Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage
Specifications
Attribute | Value |
---|---|
Rated Average On-State Current | 20A |
Thyristor Type | SCR |
Package Type | TO-220AB |
Surge Current Rating | 300A |
Mounting Type | Through Hole |
Maximum Gate Trigger Current | 30mA |
Maximum Gate Trigger Voltage | 1.5V |
Maximum Holding Current | 40mA |
Pin Count | 3 |
Dimensions | 10.67 x 4.78 x 15.75mm |
Off-State Voltage | 600V |
Maximum Operating Temperature | +125 °C |
Peak On-State Voltage | 1.6V |
Minimum Operating Temperature | -40 °C |
Repetitive Peak Off-State Current | 1000µA |
