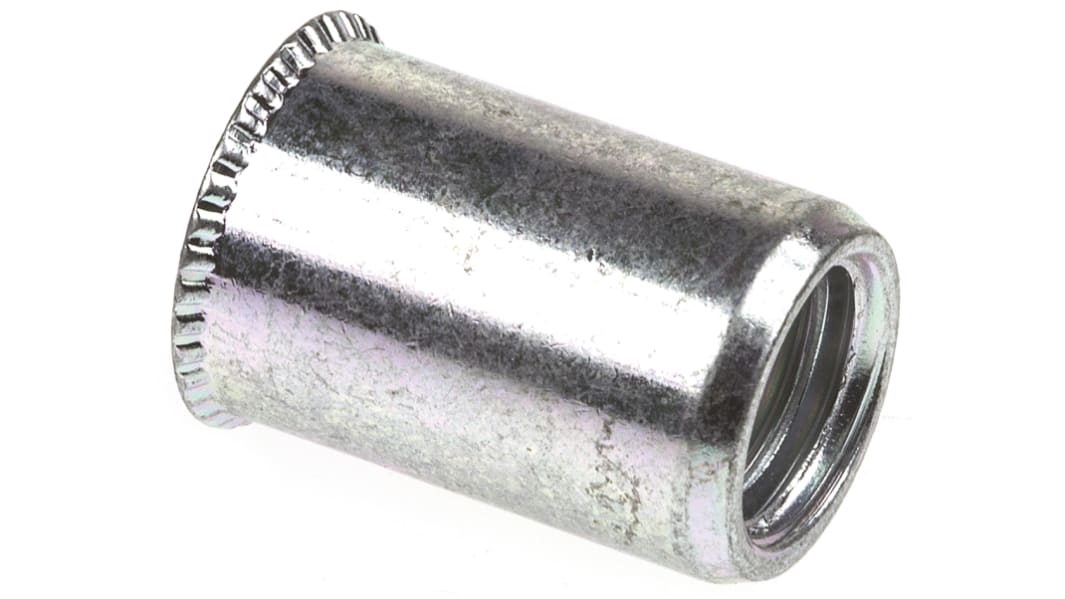

POP Galvanised, M8 Steel Threaded Insert, 11.5mm diameter 10.6mm Depth 16mm

  • RS Stock No. 623-5533
  • Brand POP
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Thin Sheet Threaded Inserts

Reduced head, open end threaded insert available in zinc plated & clear passivated steel and stainless steel
Provide a simple and effective way to join materials with the benefit of an internal thread
Ideal for providing high quality, load bearing threads in various materials where alternative methods cannot maintain torque and pull out loads
Ideally suited to applications where access is only available from one side of the workpiece
A4 Grade Stainless Steel products

Clinchnuts & Thread Inserts

Specifications
Attribute Value
Thread Size M8
Flange Diameter 11.5mm
Fixing Hole Diameter 10.6mm
Body Outside Diameter 10.5mm
Body Depth 16mm
Material Steel
Finish Galvanised
Thickness of Material Maximum 3mm
Thickness of Material Minimum 1mm
57 In stock for FREE next working day delivery
Price 1 Bag of 100
£ 31.42
(exc. VAT)
£ 37.70
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 +
£31.42
£0.314
*price indicative
