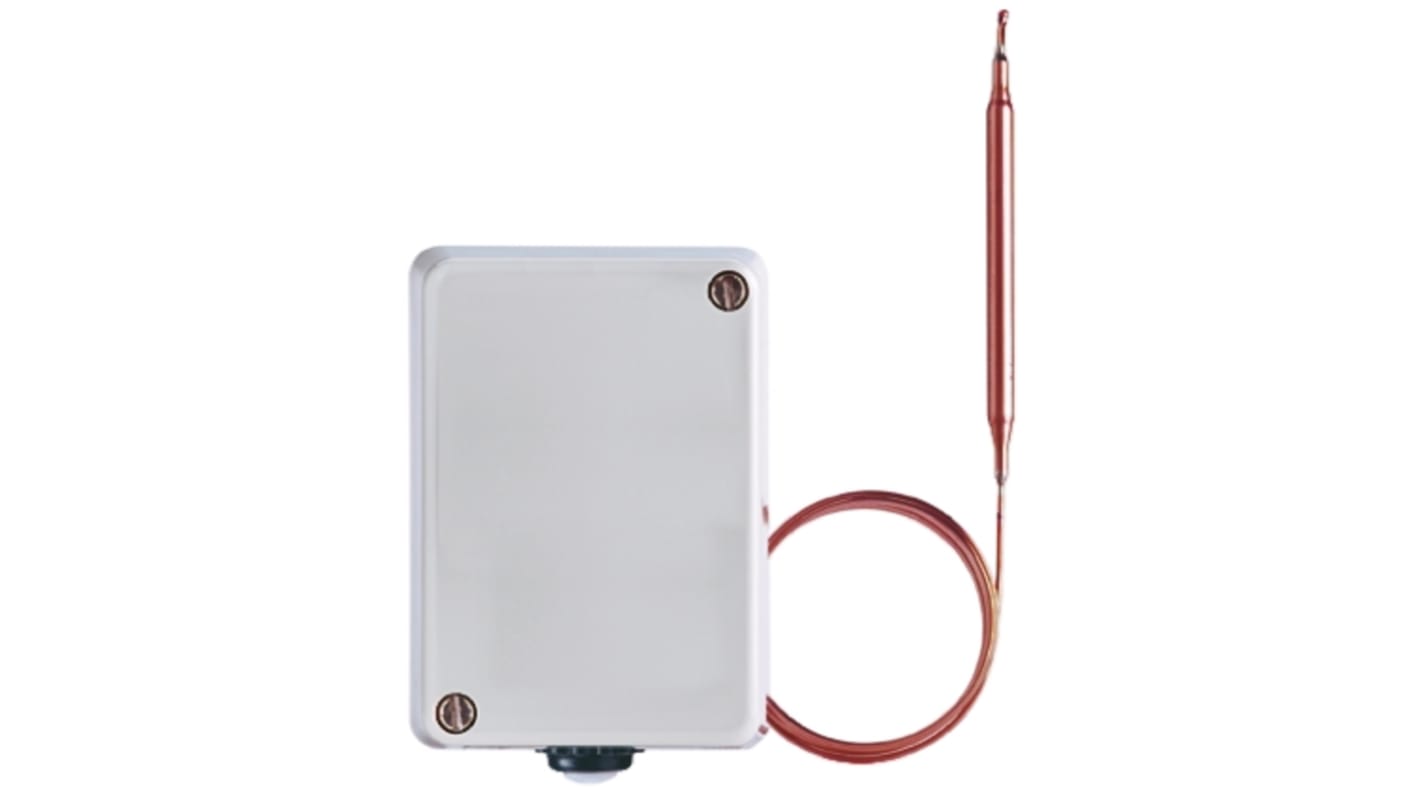

Jumo 0.25 A Capillary Thermostat

  • RS Stock No. 613-7647
  • Mfr. Part No. 603021/02-2-043-30-1000-40-10-00-00-000-00-6/000
  • Brand Jumo
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Surface Mounting Temperature Limiter with Capillary

This range of capillary and rigid stem surface mounting thermostats operates on the principle of liquid expansion utilisiing a microswitch as the switching contact.

IP54 Housing
1000mmm Capillary tube
1 x SPDT switching contact
Switching point adjustable on the inside
Differential of 3-4%
Temperature range 0 → 100 and 20 → 150°C

Specifications
Attribute Value
Minimum Temperature +20°C
Maximum Temperature +150°C
Thermostat Type Capillary
Contact Rating 0.25 A
Terminal Type Screw
9 In stock for delivery within 1 working days
Price Each
£ 136.91
(exc. VAT)
£ 164.29
(inc. VAT)
Units
Per unit
1 +
£136.91
Not available for guaranteed pre 9am/10am delivery
