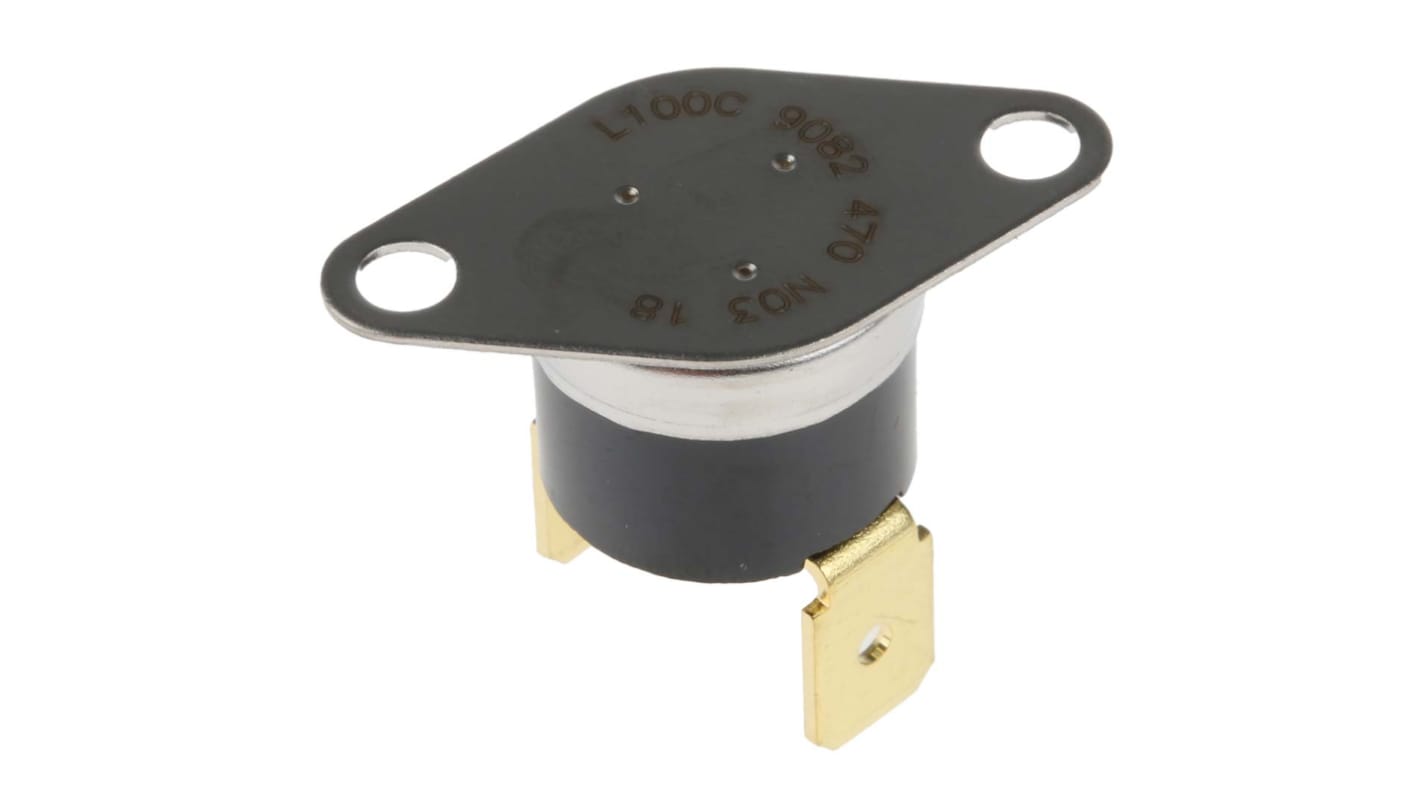

Honeywell NC 10 A Bi-Metallic Thermostat, Opens at+100°C

  • RS Stock No. 228-2608
  • Mfr. Part No. 2455RM 9082-470 L100
  • Brand Honeywell
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Manual Reset Bi-Metallic Thermostat

Designed for applications that require status indication of over temperature
Snap action bi-metallic disc, electrically and thermally isolated from the switch, actuates the normally closed contacts
Manual reset can be operated at approximately 70% of the opening temperature
Dust-free phenolic housing with heat sensitive disc retained by a heat conducting stainless steel end cap
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Approvals

UL recognised component, CSA Certified

Thermal Switches

Specifications
Attribute Value
Minimum Temperature +50°C
Maximum Temperature +150°C
Opening Temperature +100°C
Thermostat Type Bi-Metallic
Switch Configuration NC
Contact Rating 10 A
Contact Voltage Rating 250 V ac
Terminal Type Solder Tab
1278 In stock - FREE next working day delivery available
Price Each
£ 8.30
(exc. VAT)
£ 9.96
(inc. VAT)
Units
Per unit
1 - 4
£8.30
5 - 9
£8.06
10 +
£7.60
