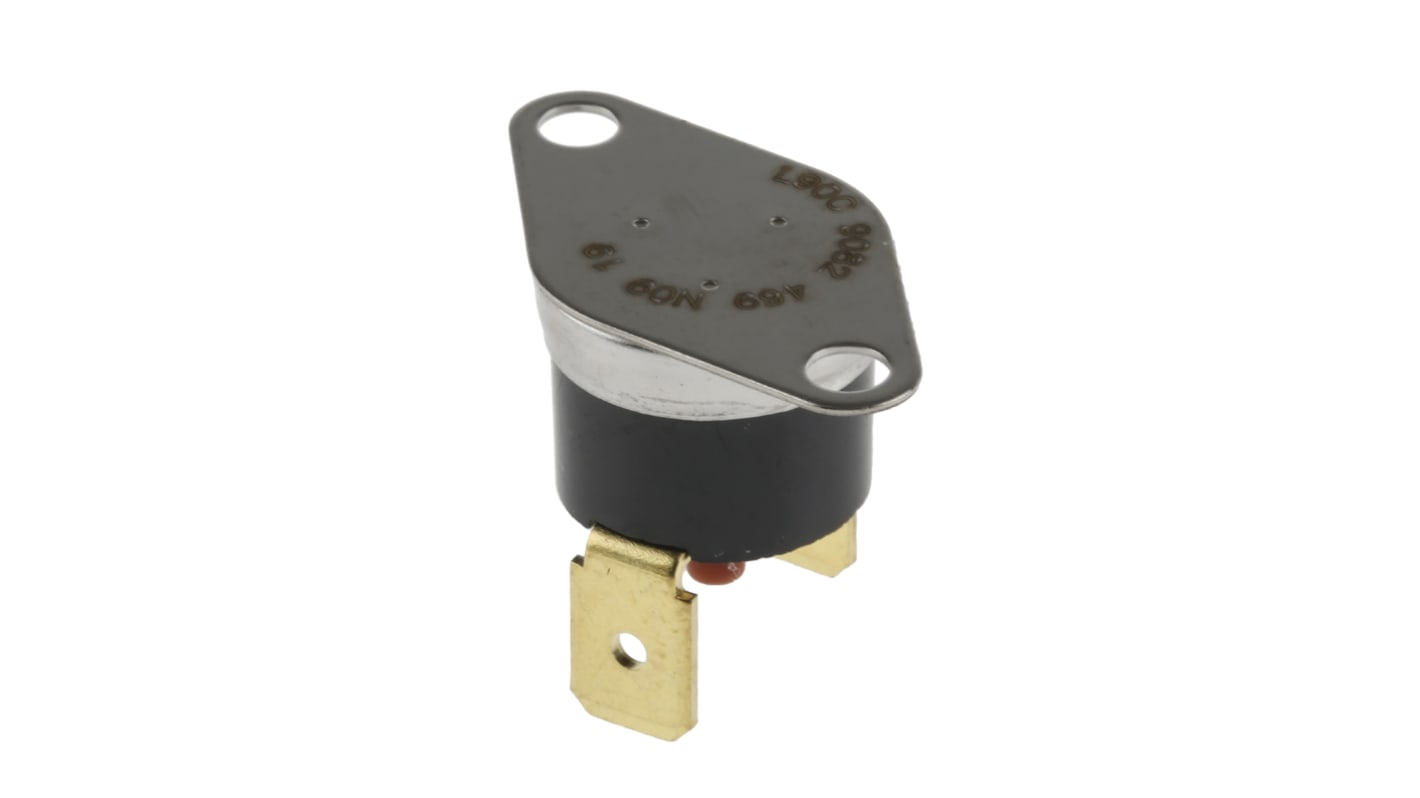

Honeywell NC 10 A Bi-Metallic Thermostat, Opens at+90°C

  • RS Stock No. 228-2579
  • Mfr. Part No. 2455RM 9082-469 L90C
  • Brand Honeywell
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Manual Reset Bi-Metallic Thermostat

Designed for applications that require status indication of over temperature
Snap action bi-metallic disc, electrically and thermally isolated from the switch, actuates the normally closed contacts
Manual reset can be operated at approximately 70% of the opening temperature
Dust-free phenolic housing with heat sensitive disc retained by a heat conducting stainless steel end cap
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Approvals

UL recognised component, CSA Certified

Thermal Switches

Specifications
Attribute Value
Minimum Temperature +50°C
Maximum Temperature +150°C
Opening Temperature +90°C
Thermostat Type Bi-Metallic
Switch Configuration NC
Contact Rating 10 A
Contact Voltage Rating 250 V ac
Terminal Type Solder Tab
