RS PRO Type J Thermocouple Wire, 10m, Glass Fibre Insulation, +350°C Max, 7/0.2mm
- RS Stock No.:
- 827-5870
- Brand:
- RS PRO
12 In stock - FREE next working day delivery available
Added
Price Each
£32.96
(exc. VAT)
£39.55
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £32.96 |
| 5 - 9 | £31.30 |
| 10 + | £29.68 |
- RS Stock No.:
- 827-5870
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

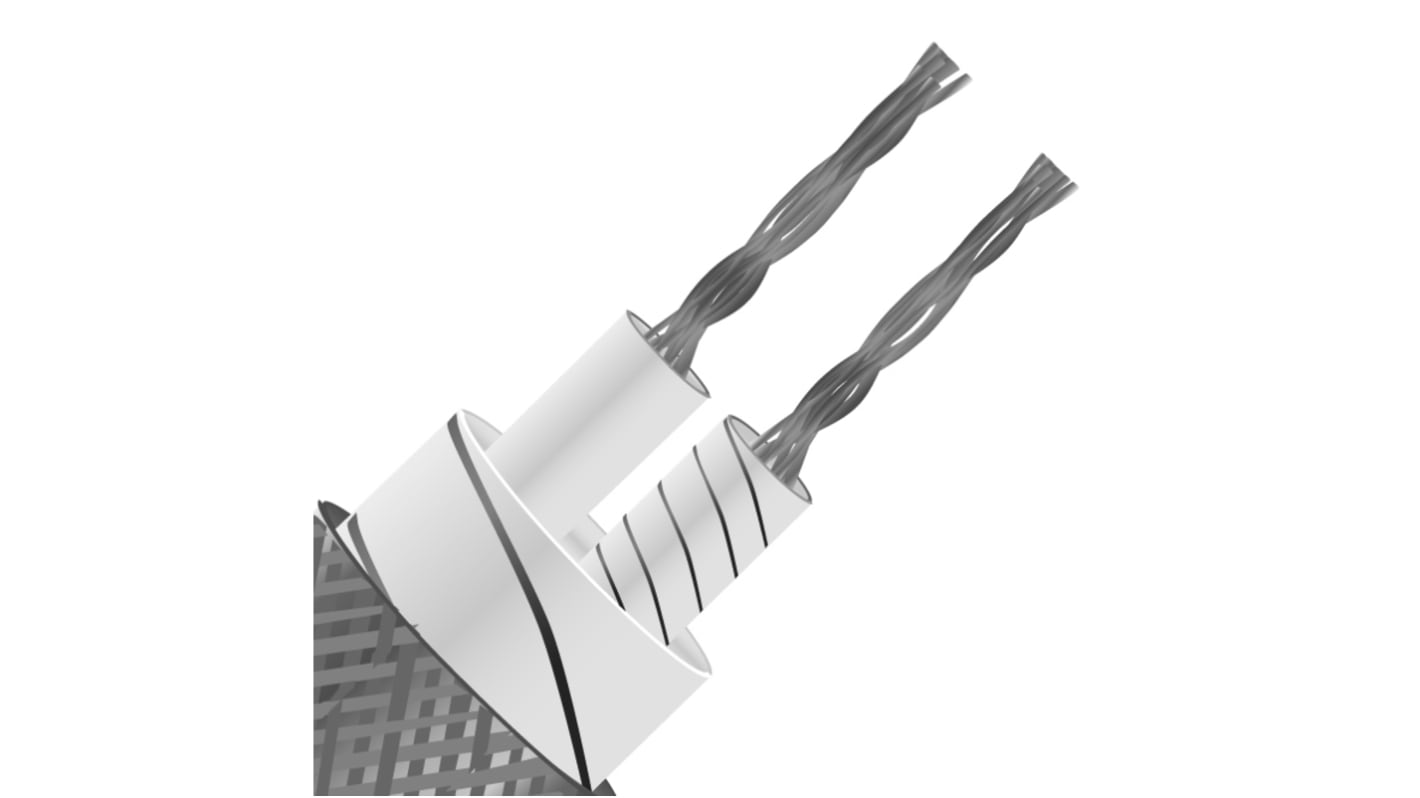

Glassfibre Flat Pair Thermocouple Cables
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.
Note
Available in different reel lengths.
Specifications
Attribute | Value |
|---|---|
| Length | 10m |
| Insulation Material | Glass Fibre |
| Thermocouple Type | J |
| Maximum Operating Temperature | +350°C |
| Core Strands | 7/0.2mm |
| Cable Shape | Flat Pair |
| Number of Strands | 2 |
| Standards Met | IEC |
