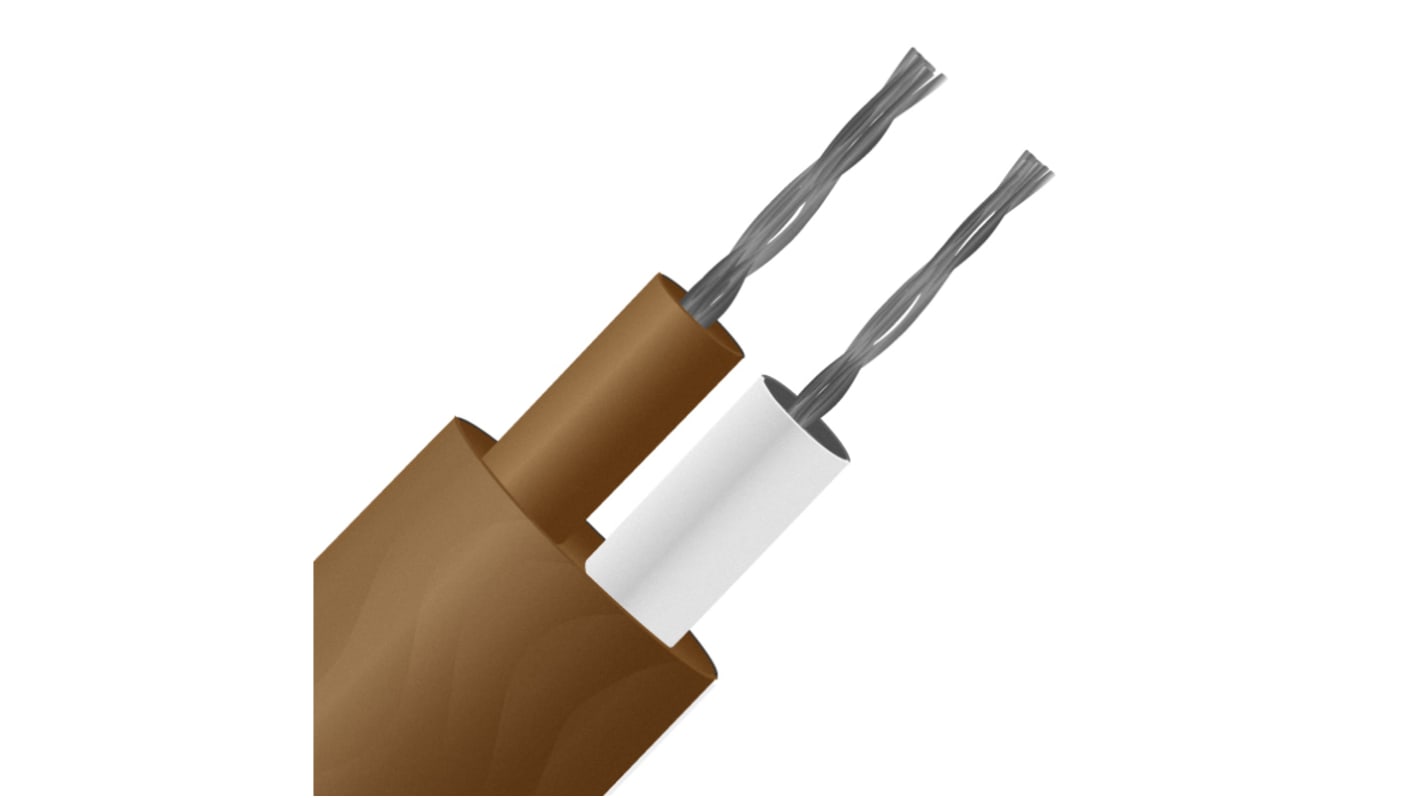

Thermocouple & Extension Wire Type T, -10 → +105 °C 2 Core PVC Sheath 50m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PVC Flat Pair Thermocouple Cables

Stranded conductors available, either 7/0.2mm, 13/0.2mm or 23/0.2mm
Compensating types VX (KCB) & U (RCA) for types K & R/S thermocouples respectively
Insulation rating -10°C to 105°C

These PVC insulated flat pair extension and compensating cables are available for thermocouple types E, J, K, T & N. The general purpose thermocouple cables are both highly flexible and waterproof. Also available in 10m, 25m, 100m and 200m lengths.

Specifications
Attribute Value
Thermocouple Type T
Number of Cores 2
Length 50m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +105°C
Core Strands 7/0.2 mm
Insulation Material PVC
Cable Shape Flat Pair
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC 584-3, RoHS Compliant
26 In stock for FREE next working day delivery
Price Each
£ 30.84
(exc. VAT)
£ 37.01
(inc. VAT)
Units
Per unit
1 - 4
£30.84
5 - 9
£29.29
10 +
£27.77
