Extension Cable Type K, -75 → +260 °C 2 Core Unscreened PFA Sheath 50m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

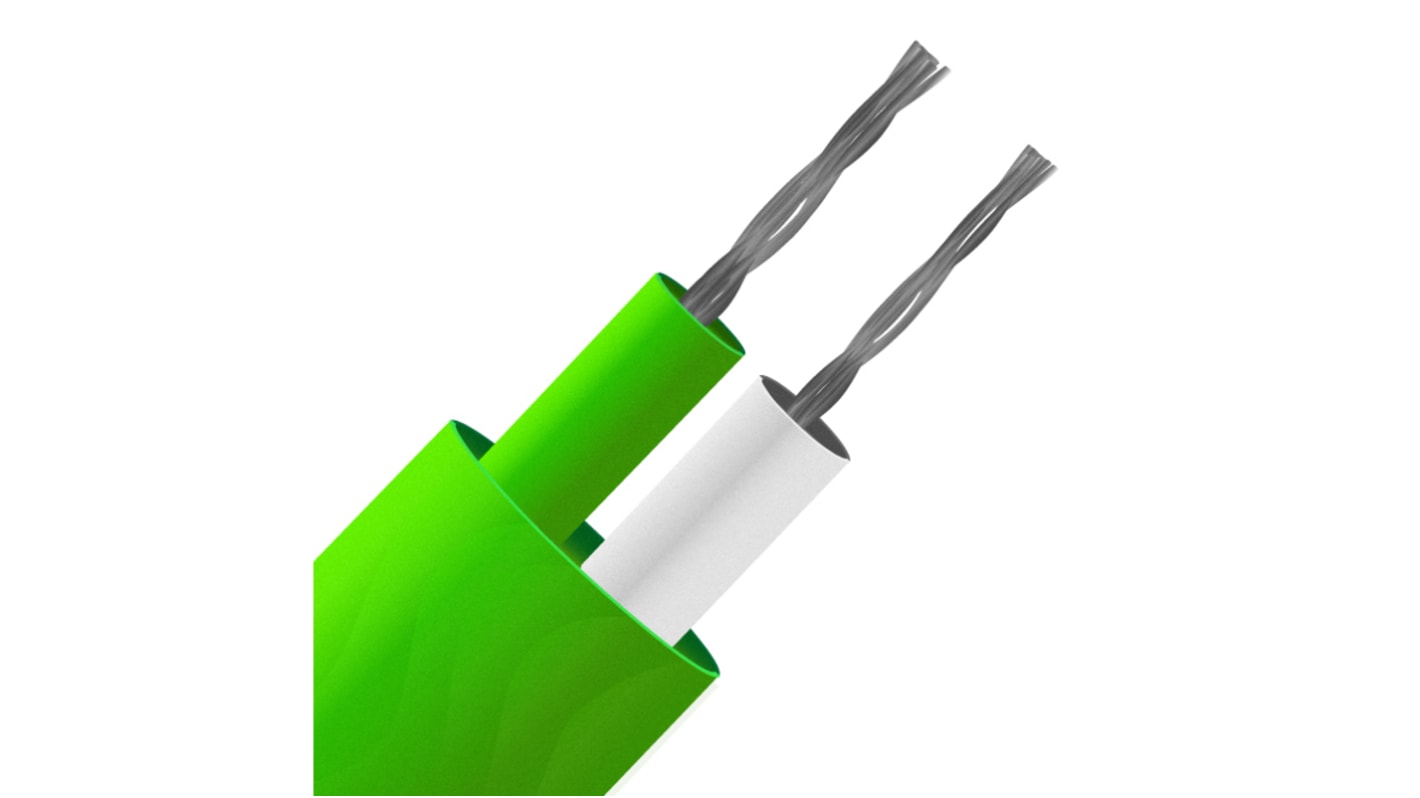

PFA Insulated Flat Pair Extension Cable

Solid or stranded conductors
Cores laid flat side by side
PFA extruded construction making it easier to work than the PTFE alternative
Tolerance class 1 for optimum accuracy
IEC colour coded
Temperature rating -75 to +250°C

Attribute Value
Thermocouple Type K
Number of Cores 2
Length 50m
Minimum Operating Temperature -75°C
Maximum Operating Temperature +260°C
Screened/Unscreened Unscreened
Core Strands 7/0.2 mm
Insulation Material PFA
Cable Shape Multicore
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC 584-3, RoHS Compliant
213 In stock for FREE next working day delivery
Price 1 Reel of 50 Metre(s)
£ 88.73
(exc. VAT)
£ 106.48
(inc. VAT)
Per Reel
Per Metre*
1 - 4
5 - 9
10 +
*price indicative
