Extension Cable Type J, -75 → +250 °C 2 Core Unscreened PTFE Sheath 25m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PTFE Insulated Extension Cable

PTFE insulated & colour coded to BS4937 Pt30
Stranded flexible construction
Temperature rating -75 to +250°C

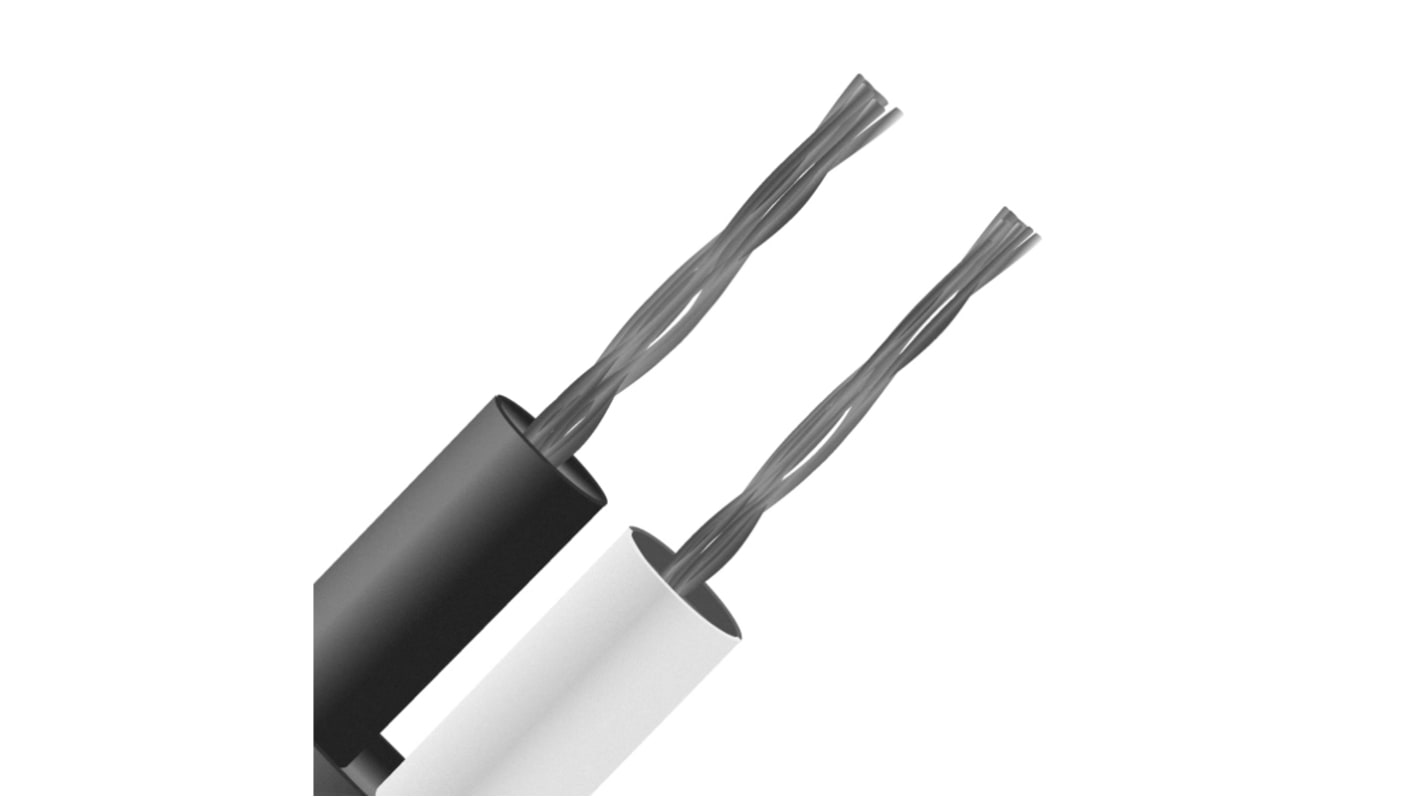

PTFE insulated flat pair cable
Single pair of PTFE insulated conductors, laid flat with PTFE jacket
Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids
Suitable for steam & pressure applications, autoclaves, sterilisers etc.
Thermocouple types K, J, & T with 7/0.2mm stranded conductors
1/0.3mm solid conductor option available for type T
10, 25 & 50 metre reel lengths
Tolerance Class 1 for optimum accuracy
Insulation rating -75°C to 260°C
Colour code (cores & jacket) to IEC-584-3

Standards

BS4937 Part 30 1993 which conforms to IEC 584-3

Standards

BS 4937 Pt 30 1993

Specifications
Attribute Value
Thermocouple Type J
Number of Cores 2
Length 25m
Minimum Operating Temperature -75°C
Maximum Operating Temperature +250°C
Screened/Unscreened Unscreened
Core Strands 7/0.2 mm
Insulation Material PTFE
Cable Shape Single Core
Number of Strands 7
Size of Strands 0.2 mm
Standards Met BS 4937 Part 30 1993 IEC 584-3, RoHS Compliant
30 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 65.66
(exc. VAT)
£ 78.79
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 4
£65.66
£2.626
5 - 9
£62.37
£2.495
10 +
£59.10
£2.364
*price indicative
