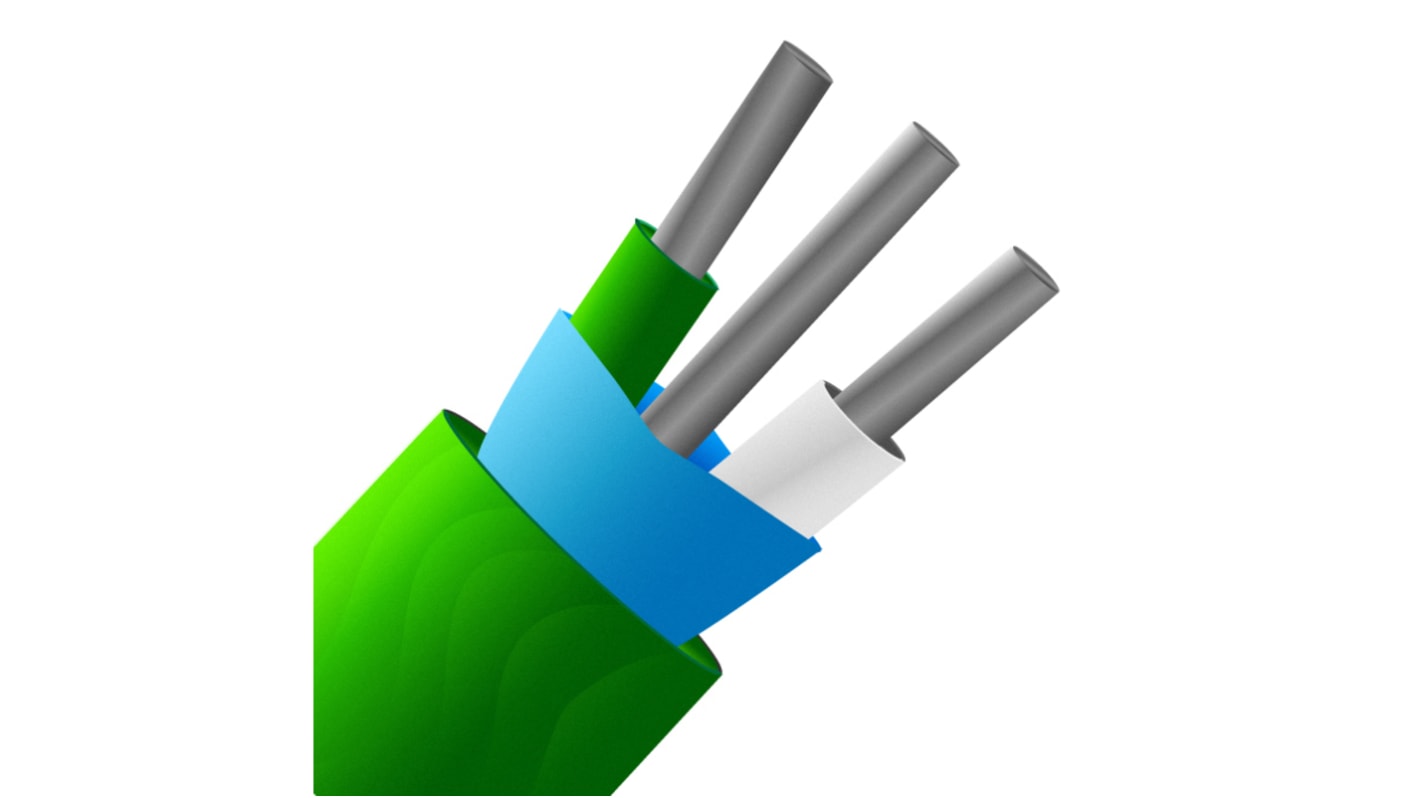

Thermocouple Wire Type K, -10 → +105 °C 2 Core Screened PVC Sheath 25m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PVC Insulated Compensating Cable

Features and Benefits

PVC insulated flat pair construction
Conductors laid flat PVC insulated with overall PVC sheath
All round general purpose cable, both waterproof and very flexible
Thermocouple extension types for K, J, T & N
Compensating types VX (KCB) & U (RCA) for types K & R/S Thermocouples respectively
Stranded conductors available, either 7/0.2mm or 13 /0.2mm
Tolerance Class 2
Insulation rating -10 → 105 °C
Colour code (cores & jacket) to IEC-584-3

Standards

BS4937 Part 30 1993 which conforms to IEC 584-3

Standards

BS 4937 Part 30 1993

Specifications
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 25m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +105°C
Screened/Unscreened Screened
Core Strands 7/0.2 mm
Insulation Material PVC
Cable Shape Multicore
Number of Strands 7
Size of Strands 0.2 mm
Standards Met BS 4937 Part 30 1993 IEC 584-3, RoHS Compliant
201 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 26.51
(exc. VAT)
£ 31.81
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 4
£26.51
£1.06
5 - 9
£23.88
£0.955
10 +
£22.55
£0.902
*price indicative
