Intelligent LED Solutions Self-Adhesive Thermal Interface Pad, 0.25mm Thick, 240 W/m·K, 5 W/m·K, Graphite
- RS Stock No.:
- 859-7631
- Mfr. Part No.:
- ILA-TIM-STAR-1A
- Brand:
- Intelligent LED Solutions
Available to back order for despatch 02/05/2024
Added
Price Each (In a Pack of 8)
£1.083
(exc. VAT)
£1.30
(inc. VAT)
Units | Per unit | Per Pack* |
8 - 32 | £1.083 | £8.664 |
40 - 72 | £0.919 | £7.352 |
80 - 192 | £0.839 | £6.712 |
200 - 392 | £0.715 | £5.72 |
400 + | £0.656 | £5.248 |
*price indicative |
- RS Stock No.:
- 859-7631
- Mfr. Part No.:
- ILA-TIM-STAR-1A
- Brand:
- Intelligent LED Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

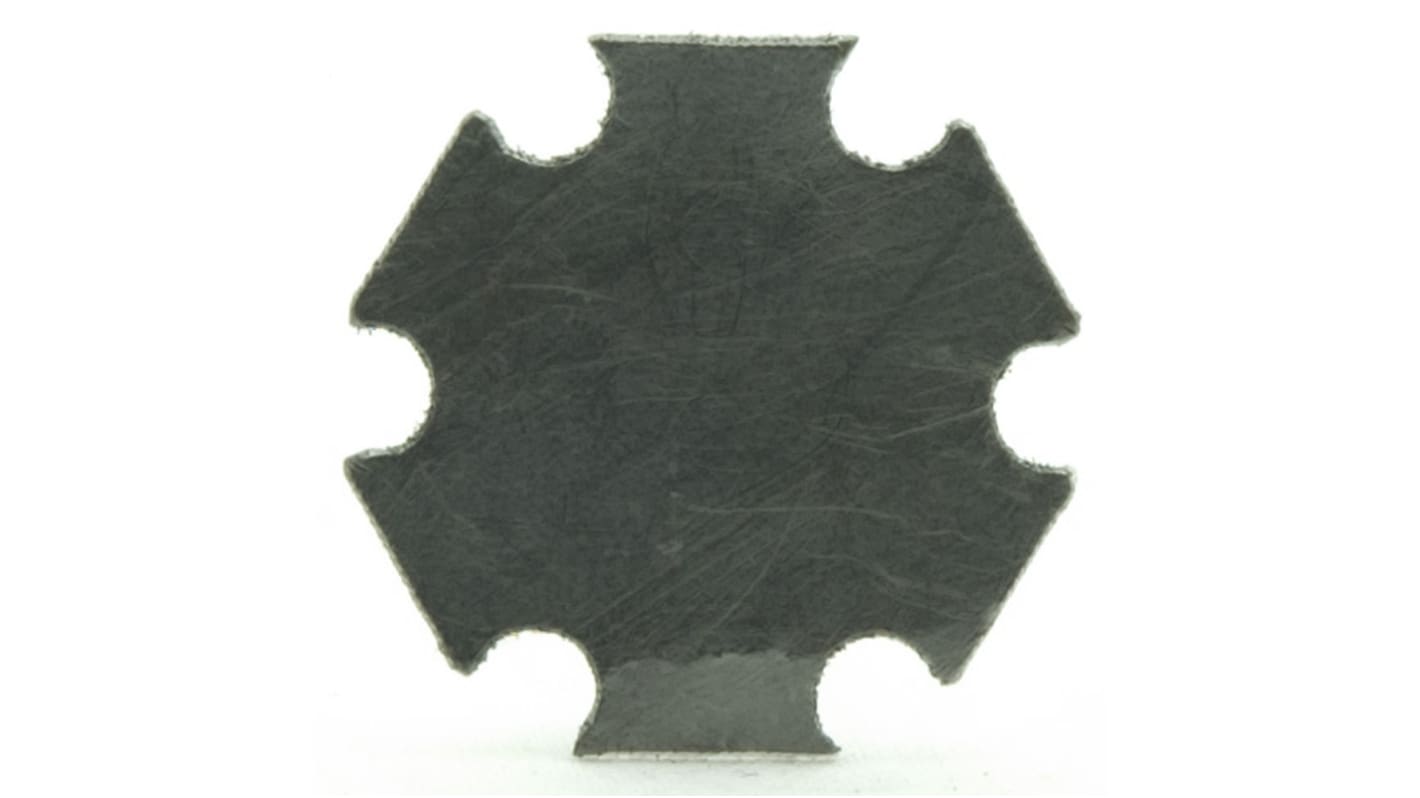

ILS Thermal Interface Materials (TIM) - LED Stars
The ILA-TIM-STAR series, from Intelligent LED Solutions, are a range of thermal heat pads designed specifically for LED Star arrays. The ILA-TIM-STAR thermal gap pads are from ILS' Thermal Interface Materials (TIM) family. They are available in non-adhesive or single/double sided adhesive options.
"Features of the ILA-TIM-STAR single-sided and non-adhesive:
Colour: pewter
0.13mm thick
Temperature range: -240°C to +300°C
Features of the ILA-TIM-STAR double-sided:
Colour: cream
0.16mm thick
Temperature range: -240°C to +300°C"
Colour: pewter
0.13mm thick
Temperature range: -240°C to +300°C
Features of the ILA-TIM-STAR double-sided:
Colour: cream
0.16mm thick
Temperature range: -240°C to +300°C"
Thermal Interface Materials, Intelligent LED Solutions
The ILA-TIM-XXXX-YY series of high-performance, cost effective thermal Interface Material (TIM), from Intelligent LED Solutions, is designed for use with their standard LED array products (such as: 773-3482). The Thermal Interface material fills air pockets between the PCB and the heat sink surfaces, forming a continuous layer to improve the transfer of heat away from the LED.
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
Intelligent LED Solutions offers three versions of Thermal Interface Material: Double sided adhesive (suffix -2A), single sided adhesive (suffix -1A) and no adhesive (suffix -0A).
Specifications
Attribute | Value |
---|---|
Thickness | 0.25mm |
Thermal Conductivity | 240 W/m·K, 5 W/m·K |
Material | Graphite |
Self-Adhesive | Yes |
Minimum Operating Temperature | -240°C |
Maximum Operating Temperature | +300°C |
Hardness | Shore A 85 |
Material Trade Name | TIM |
Operating Temperature Range | -240 → +300 °C |
- RS Stock No.:
- 859-7631
- Mfr. Part No.:
- ILA-TIM-STAR-1A
- Brand:
- Intelligent LED Solutions
