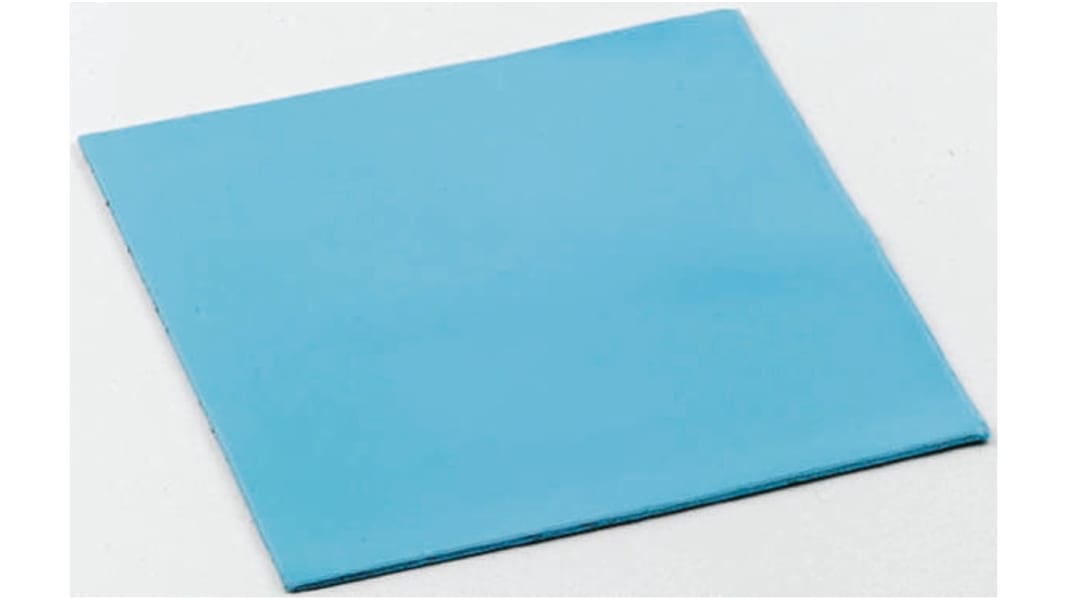

Bergquist Self-Adhesive Thermal Interface Sheet, 0.125in Thick, 3W/m·K, Gap Pad 3000S30, 100 x 100mm
- RS Stock No.:
- 491-4183
- Mfr. Part No.:
- GP3000S30-0.125-02-00-100X100
- Brand:
- Bergquist
1 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£69.78
(exc. VAT)
£83.74
(inc. VAT)
| Units | Per unit |
| 1 + | £69.78 |
- RS Stock No.:
- 491-4183
- Mfr. Part No.:
- GP3000S30-0.125-02-00-100X100
- Brand:
- Bergquist
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Gap Pad® 3000S30
Electrical insulators and thermal conductors
Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies
The material has excellent elasticity
The thicknesses available means that GAP Pads can be used when the texture of the surface varies
The Ultra Soft range has the same characteristics but is softer and more malleable
The GAP Pad XX00S series is designed for low pressure and stress applications
Adapted for electrical insulation and as thermal joints on assemblies of components where the height varies
The material has excellent elasticity
The thicknesses available means that GAP Pads can be used when the texture of the surface varies
The Ultra Soft range has the same characteristics but is softer and more malleable
The GAP Pad XX00S series is designed for low pressure and stress applications
Specifications
Attribute | Value |
|---|---|
| Dimensions | 100 x 100mm |
| Thickness | 0.125in |
| Length | 100mm |
| Width | 100mm |
| Thermal Conductivity | 3W/m·K |
| Material | Gap Pad 3000S30 |
| Self-Adhesive | Yes |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +200°C |
| Hardness | Shore OO 30 |
| Material Trade Name | Gap Pad 3000S30 |
| Operating Temperature Range | -60 → +200 °C |
