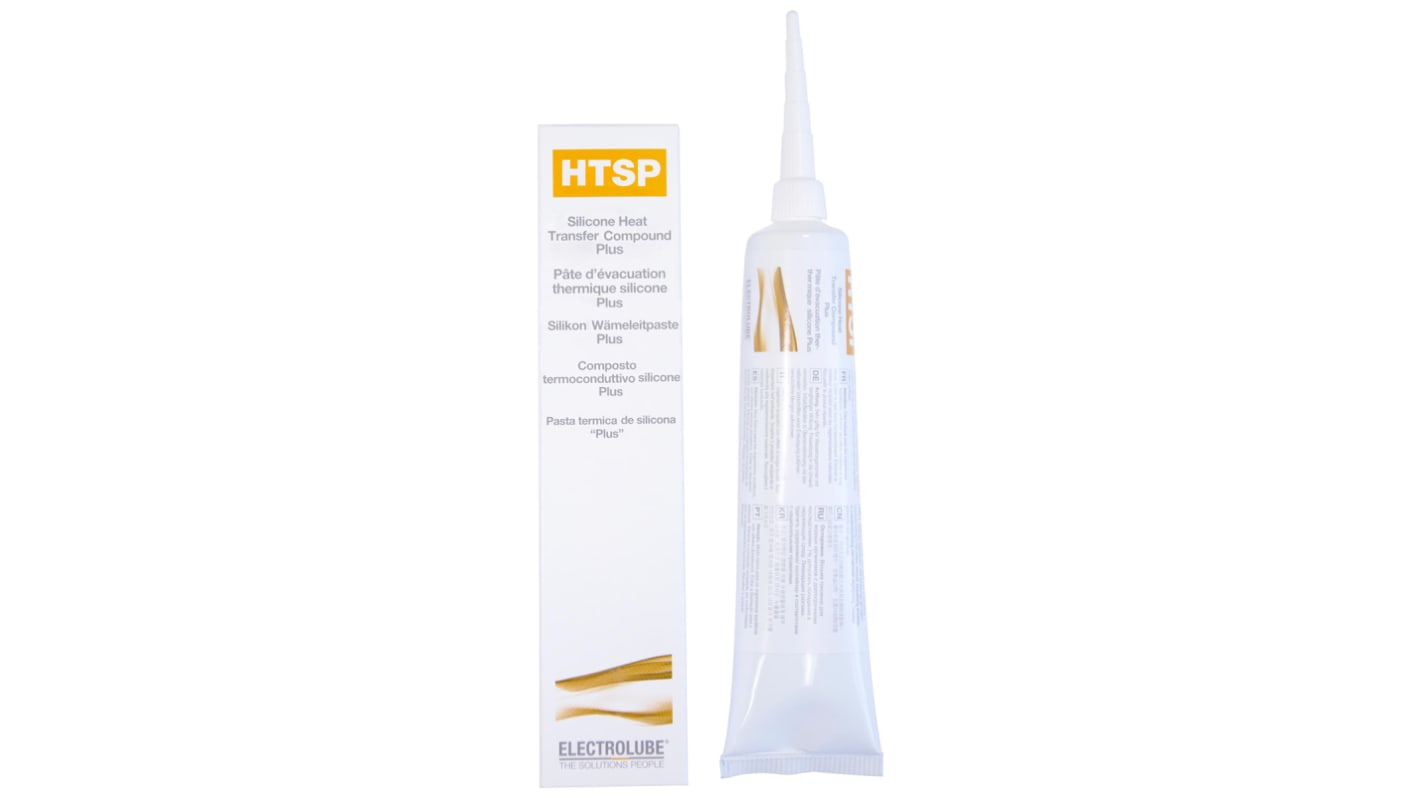

Electrolube Thermal Grease, 3W/m·K
- RS Stock No.:
- 182-6357
- Mfr. Part No.:
- HTSP100T
- Brand:
- Electrolube
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 182-6357
- Mfr. Part No.:
- HTSP100T
- Brand:
- Electrolube
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
HTSP provides the ultimate in thermal conductivity together with the very wide temperature range obtained by using silicone base oils. The exceptional properties obtained from HTSP are due to the novel use of various metal oxide (ceramic) powders. These materials are electrically insulative to ensure that leakage currents can not be formed if the paste should come into contact with other parts of the assembly.
Superior thermal conductivity even at high temperatures 3.0 W/m.K
Excellent non-creep characteristics
Wide operating temperature range -50°C to +200°C
Low evaporation weight loss
Excellent non-creep characteristics
Wide operating temperature range -50°C to +200°C
Low evaporation weight loss
Specifications
Attribute | Value |
|---|---|
| Thermal Conductivity | 3W/m·K |
| Maximum Operating Temperature | +200°C |
| Minimum Operating Temperature | -50°C |
| Physical State | Paste |
| Pack Size | 100 ml |
| Operating Temperature Range | -50 → +200 °C |
| Chemical Component | Powdered Metal Oxides, Silicone Oil |
