Hirschmann Test & Measurement 2 mm Connector Test Lead, 10A, 1000V ac/dc, Blue, 1m Lead Length
- RS Stock No.:
- 787-3063
- Mfr. Part No.:
- 975696702
- Brand:
- Hirschmann Test & Measurement
16 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.14
(exc. VAT)
£12.17
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.14 |
| 10 - 24 | £9.37 |
| 25 + | £8.61 |
- RS Stock No.:
- 787-3063
- Mfr. Part No.:
- 975696702
- Brand:
- Hirschmann Test & Measurement
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

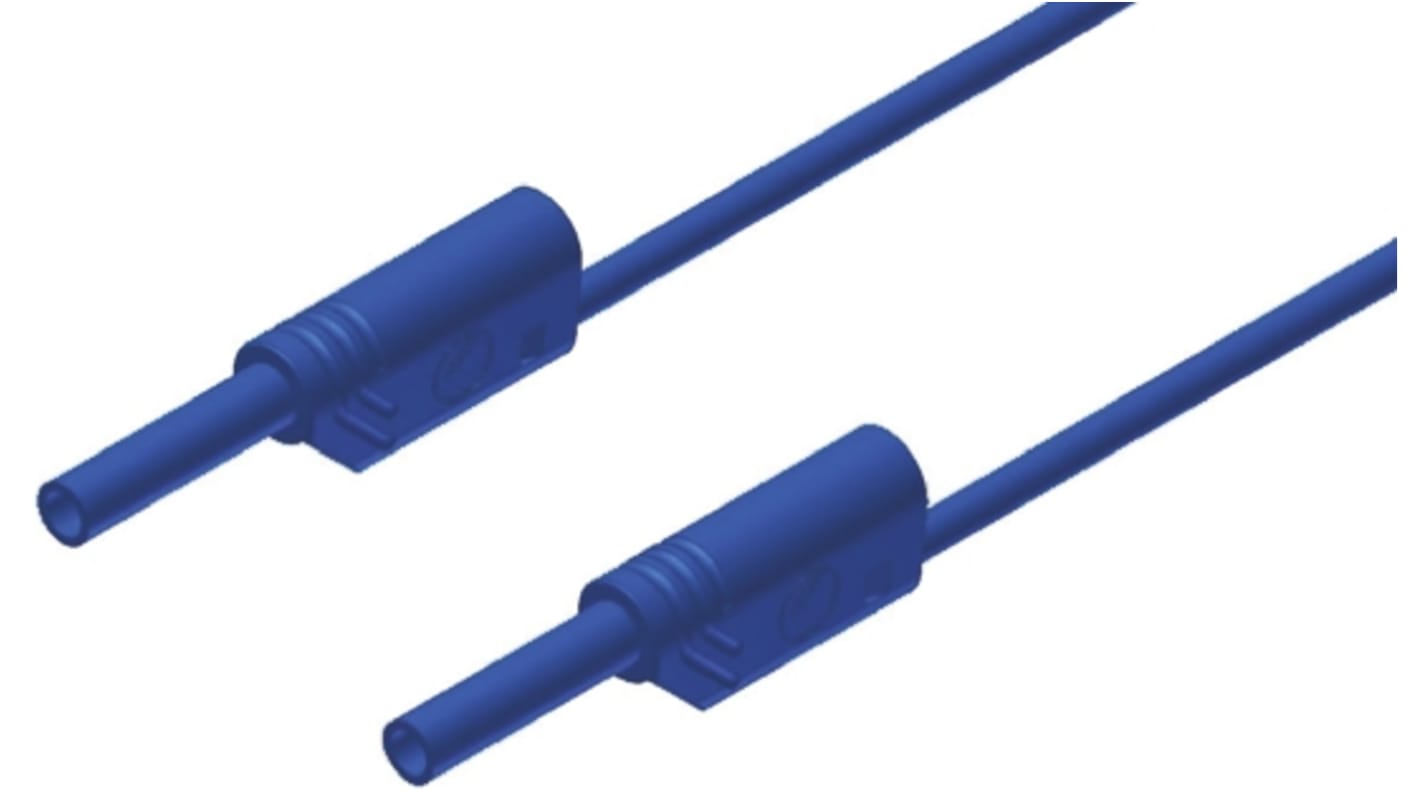

MVL S WS 100/1 Stackable CAT III Safety Measuring Leads with 2mm Plugs and Rear Sockets, 100cm
Hirschmann test and measurement MVL S WS 100/1 safety measuring leads with gold plated 2mm safety plugs at both ends of a 100cm lead and 2mm sockets for onwards connectivity. These 2mm safety test leads feature shatter-proof grip sleeves and highly flexible double insulated 259x0.07mm strand cables with a built in indicator of insulation damage via a different colour interior insulation, offered in a wide selection of colours.
Rated Voltage 1000 VAC/DC
Current rating 10A
CAT III
Spring loaded pin
Contact resistance 24 mΩ
Current rating 10A
CAT III
Spring loaded pin
Contact resistance 24 mΩ
Specifications
Attribute | Value |
|---|---|
| Lead Length | 1m |
| Current Rating | 10A |
| Test Lead Type | 2 mm Connector Test Leads |
| Colour | Blue |
| Voltage Rating | 1000V ac/dc |
| Connector A Gender | Male |
| Connector B Gender | Male |
| Connector A Shrouded | Yes |
| Connector B Shrouded | Yes |
| Connector A Orientation | Straight |
| Connector B Orientation | Straight |
| Contact Material | Beryllium Copper |
| Insulation Material | PVC |
| Operating Temperature Range | -15 → +70 °C |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Safety Category Level | CAT III |
