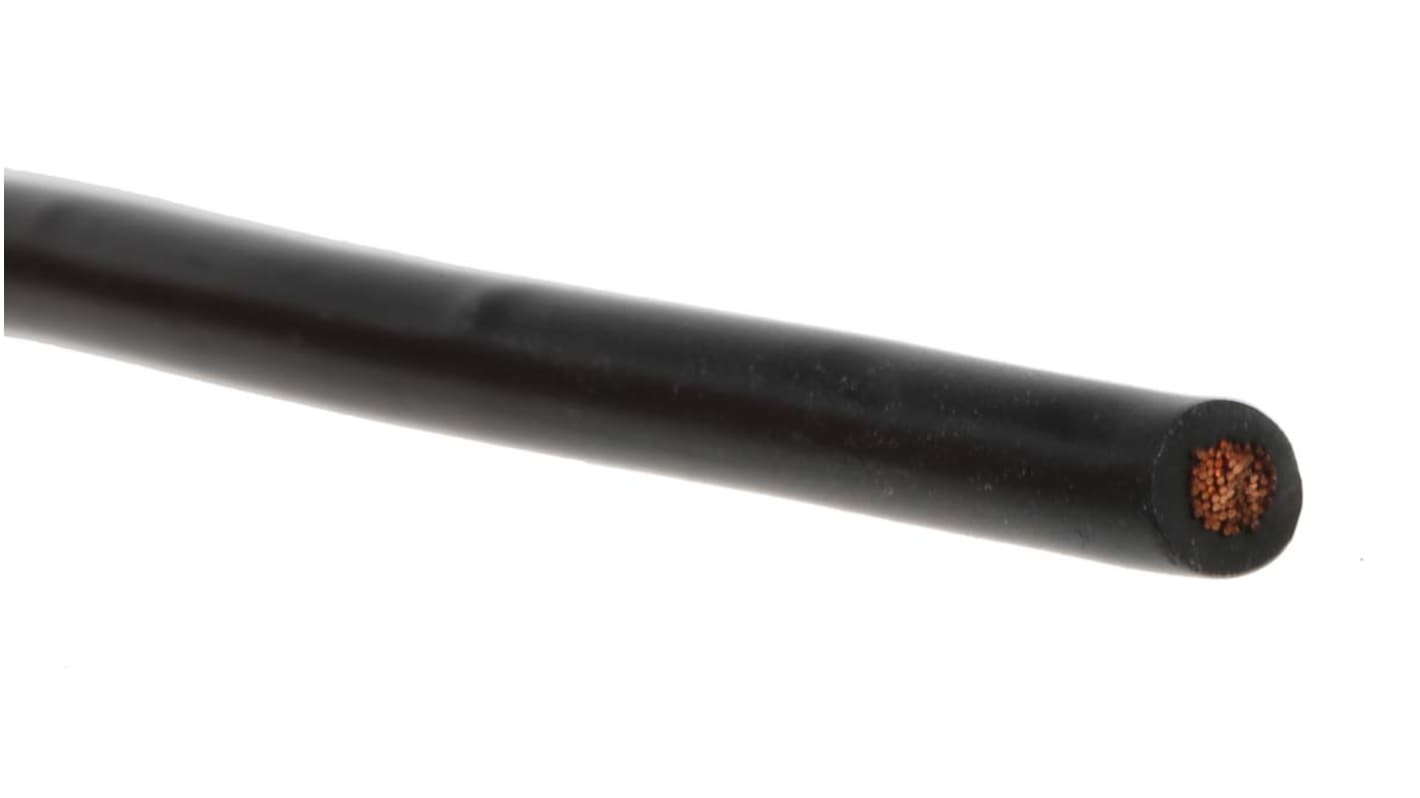

RS PRO Annealed Copper Test Lead Wire 2.5 mm² CSA 500 V 32 A Black PVC, 651 Strands 5m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

High Performance PVC and Silicone Rubber

Insulated test leads supplied in 5m lengths enables high quality 4mm test leads to be assembled to any desired length.

• Uses silicon for flexibility and high temperature
• Ideal for use with high currents

Approvals

UL Recognised

Standards

UL Recognised

Specifications
Attribute Value
Cross Sectional Area 2.5 mm²
Sheath Colour Black
Insulation Material PVC
Length 5m
Voltage Rating 500 V
Current Rating 32 A
American Wire Gauge 13 AWG
Outer Diameter 3.9mm
Conductor Material Bare Copper
Core Strands 651/0.07 mm
Cable Shape Single Core
Number of Strands 651
Shield Type Annealed Copper
Insulation Wall Thickness 0.85mm
Size of Strands 0.07 mm
Maximum Operating Temperature +80°C
Minimum Operating Temperature -20°C
509 In stock for FREE next working day delivery
Price 1 Bag of 5 Metre(s)
£ 11.17
(exc. VAT)
£ 13.40
(inc. VAT)
Bag(s)
Per Bag
Per Metre*
1 - 24
£11.17
£2.234
25 - 49
£10.61
£2.122
50 +
£10.06
£2.012
*price indicative
