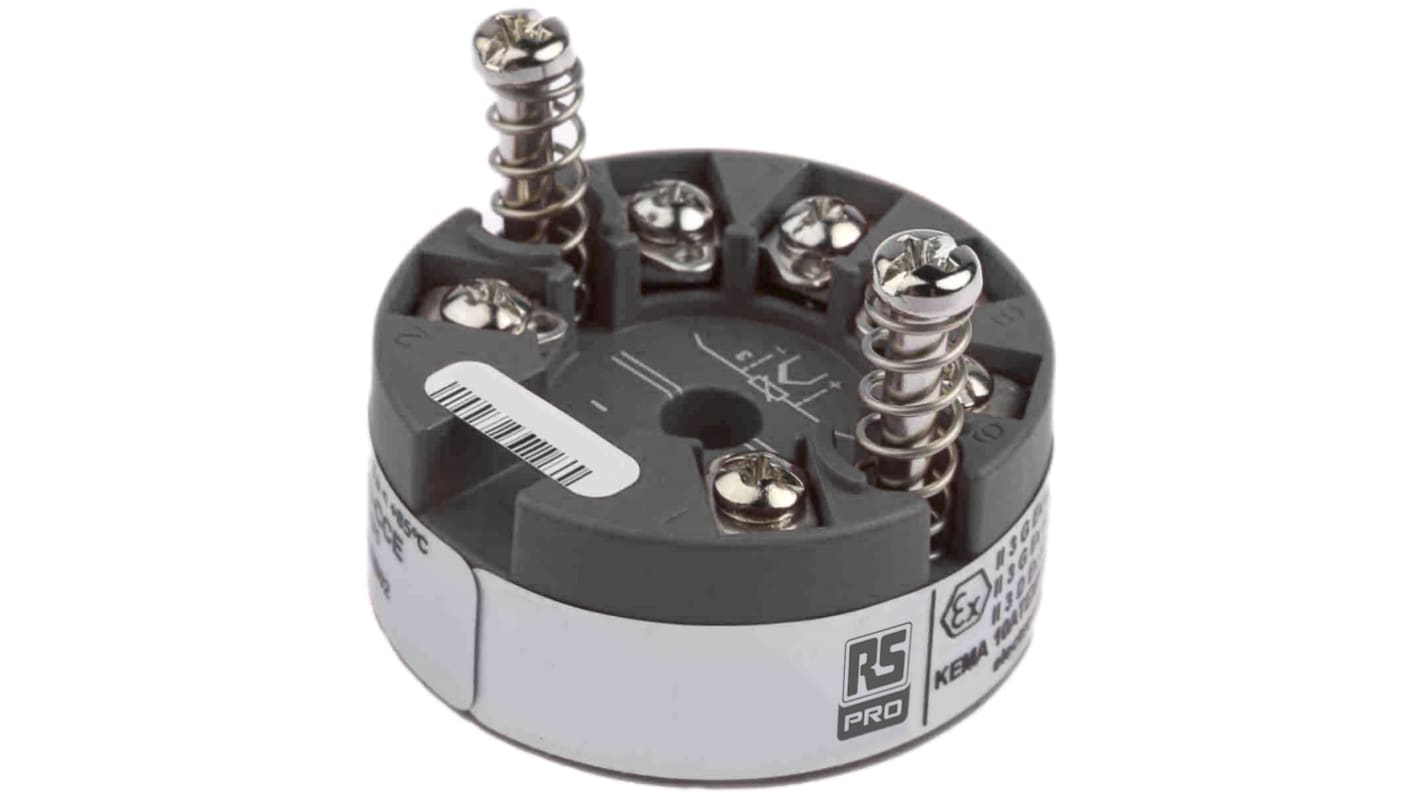

RS PRO Temperature Transmitter Linear Resistance, RTD Input, 8 → 30 V dc

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DK
Product Details

RS PRO 2-Wire Programmable Transmitter

RS PRO introduces a brilliant range of programmable temperature transmitters. These temperature transmitters provide unrivalled input versatility for virtually any thermocouple and bipolar mV signals. The input sensor redundancy function maintains process availability and safety in the event of primary sensor failure.

Features and Benefits

RTD or Ohm input
High measurement accuracy
3-wire connection
Programmable sensor error value
For DIN form B sensor head mounting

Applications

It is very important in many industries to ensure that temperatures are reliable and accurate to ensure that products are protected from different temperature ranges for example:

Control rooms
Production lines
Furnaces
Chemical processing plants
Factories
Power generation plants

Technical Characteristics

Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensor.
Within a few seconds the user can program the transmitter to measure temperatures within all RTD ranges defined by the norms.
The RTD and resistance inputs have cable compensation for 3-wire connection.

Mounting / Installation

For DIN form B sensor head mounting.

How Do Temperature Transmitters Work?

Temperature transmitters are electrical components that connect a temperature sensor, most commonly, a thermocouple, RTD or thermistor to a measurement or control device such as a loop controller, PLC, DCS, PC, data logger etc. Temperature transmitters isolate, amplify, filter noise, linearise and convert the input signal from the sensor it is connected to, for example - a thermocouple, it then transmits a standardised output signal to the control device of your choice like a data logger.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications
Attribute Value
Input Type Linear Resistance, RTD
Supply Voltage 8 → 30 V dc
Diameter 44 mm
Minimum Temperature Input -200°C
Maximum Temperature Input 850°C
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Depth 20.2mm
Hazardous Area Certification ATEX, IECEx
24 In stock - FREE next working day delivery available
Price Each
Was £88.00
£ 60.00
(exc. VAT)
£ 72.00
(inc. VAT)
Units
Per unit
1 +
£60.00
