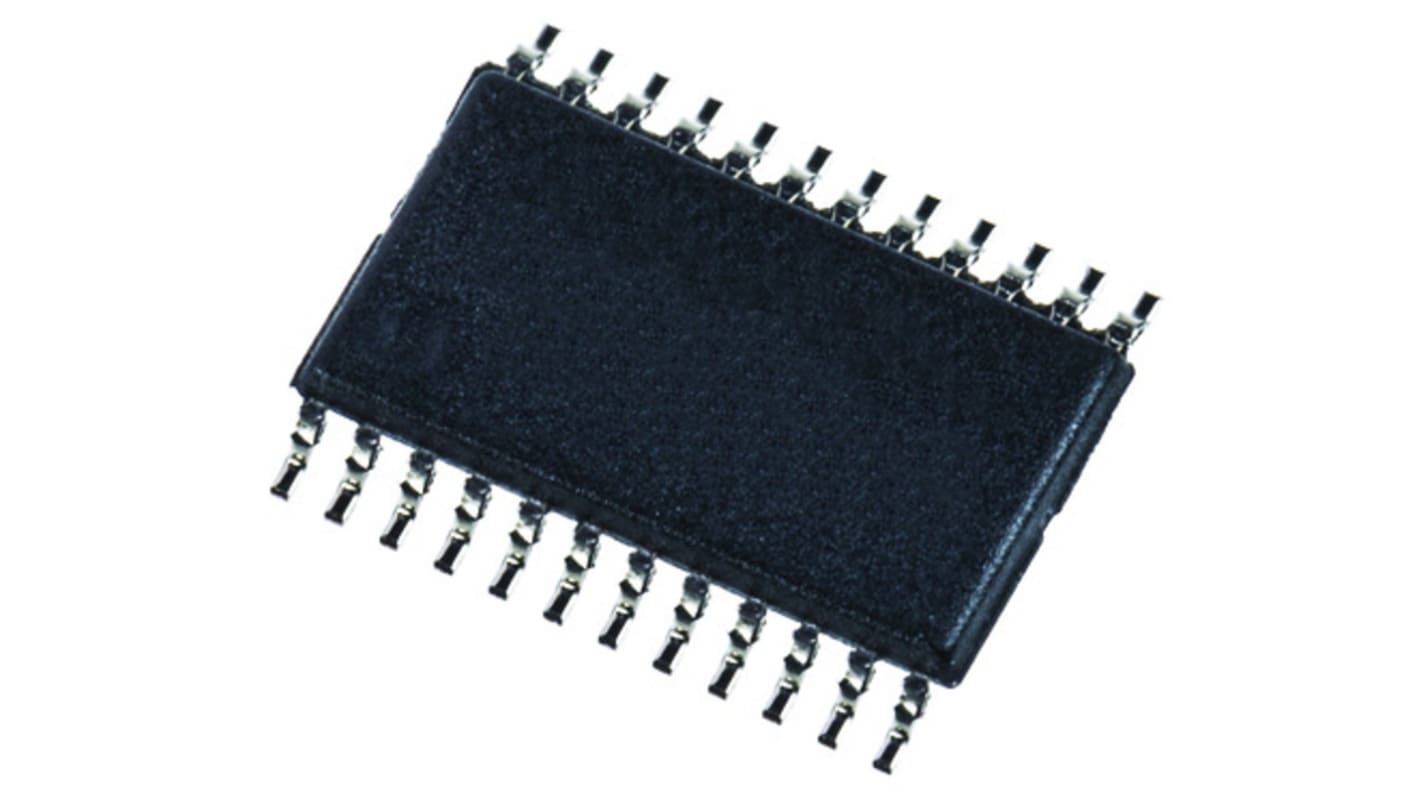

    Texas Instruments Temperature Sensor, Surface Mount, SMBus, ±3 °C, ±4 °C, 24 Pins

    RS Stock No.:
    639-4711
    Mfr. Part No.:
    LM87CIMT/NOPB
    Brand:
    Texas Instruments
    Texas Instruments
    View this category
    Discontinued product
    RS Stock No.:
    639-4711
    Mfr. Part No.:
    LM87CIMT/NOPB
    Brand:
    Texas Instruments

    Technical Reference


    Legislation and Compliance


    Product Details

    LM87 System Hardware Monitor


    The LM87 system hardware monitor is designed to monitor the temperatures, voltages and fan speeds of servers, PCs and microprocessor based systems. Remote diode temperature sensing is also possible for up to 2 external diodes.



    Features;
    SMBus and I²C serial interface compatible
    8 positive voltage inputs
    2 fan speed/voltage monitoring inputs
    8-bit DAC output for controlling fan speed
    2.8 V to 3.8 V supply voltage range
    0.7 mA supply current



    Temperature Control Interfaces, Texas Instruments


    A range of temperature sensing, monitoring, control devices and evaluation platforms from Texas Instruments.


    Specifications

    AttributeValue
    Sensor FunctionTemperature
    Interface TypeSMBus
    Accuracy±3 °C, ±4 °C
    Mounting TypeSurface Mount
    Pin Count24
    Minimum Operating Temperature-40 °C
    Operating Temperature Range-40 → +125 °C
    Maximum Operating Temperature+125 °C
    Minimum Operating Supply Voltage2.8 V
    Maximum Operating Supply Voltage3.8 V
    Package TypeTSSOP
    Length7.8mm
    Height0.9mm
    Width4.4mm
    Resolution8 bit
    Dimensions7.8 x 4.4 x 0.9mm
    Discontinued product
