RS PRO Panel Mount PID Temperature Controller, 72 x 72mm, 3 Output SSR, 230 V ac Supply Voltage ON/OFF, PID Controller
- RS Stock No.:
- 786-4775
- Brand:
- RS PRO
- RS Stock No.:
- 786-4775
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
RS PRO DIN Rail PID Temperature Controller, 72 x 72 mm, 3 Output SSR, 230 V ac Supply Voltage On/Off, P, PD, PI, PID
Process temperatures out of sync? This DIN rail PID (proportional integral derivative) controller from the RS PRO range uses a control loop mechanism to help equipment run at the correct temperature.
Basic devices send heating signals only when process temperatures fall below an acceptable range. PID controllers are more advanced, using a mathematical formula to ensure process temperature remains as close to the user setpoint as possible.

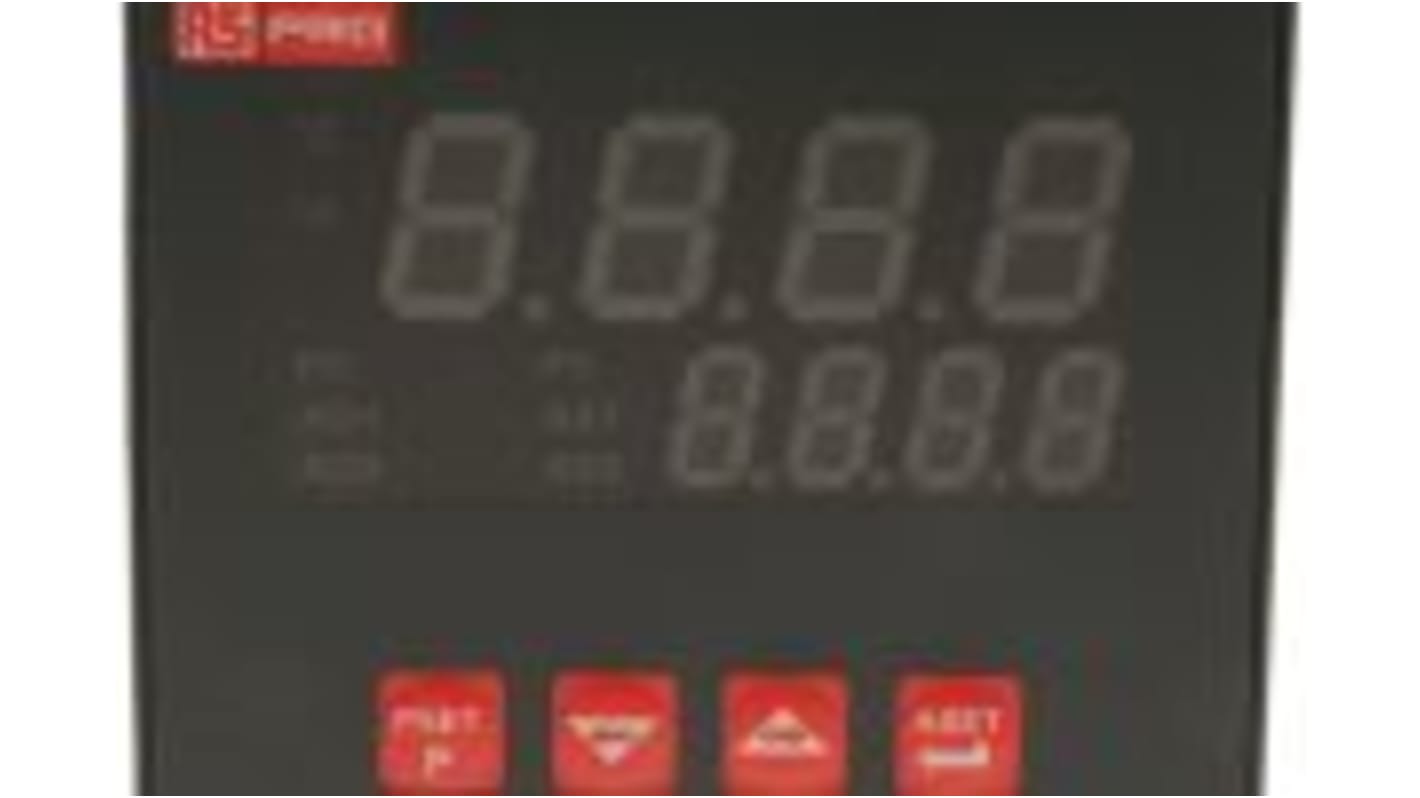

This controller has a clear multi-line display, with simple four-button operation on the front panel. Once youve entered a setpoint, the controller responds to sensor feedback to regulate the process temperature of hooked-up equipment. The DIN rail mount is space-saving and provides flexible mounting options.
Designed to offset sudden fluctuations, this controller is suitable for use in specialised industries, from petrochemistry and food production to the tempering of industrial parts. It has a dust-tight IP65 rating and is RoHS-certified against hazardous materials.
Basic devices send heating signals only when process temperatures fall below an acceptable range. PID controllers are more advanced, using a mathematical formula to ensure process temperature remains as close to the user setpoint as possible.
This controller has a clear multi-line display, with simple four-button operation on the front panel. Once youve entered a setpoint, the controller responds to sensor feedback to regulate the process temperature of hooked-up equipment. The DIN rail mount is space-saving and provides flexible mounting options.
Designed to offset sudden fluctuations, this controller is suitable for use in specialised industries, from petrochemistry and food production to the tempering of industrial parts. It has a dust-tight IP65 rating and is RoHS-certified against hazardous materials.
Features and Benefits
SSR and relay output type
DIN rail mounting type
Three outputs
Supply voltage of 230 V ac
72 x 72 mm
Panel depth of 84 mm
Temperature range of -200°C to +1700°C depending on thermocouple
Multi-line display
Input types RTD, Universal Input TC, Voltage/Current (dc)
Selectable alarm functions for alarm output
Control types on/off, P, PD, PI, PID controller
Additional functionality on/off
Communication module not available
DIN rail mounting type
Three outputs
Supply voltage of 230 V ac
72 x 72 mm
Panel depth of 84 mm
Temperature range of -200°C to +1700°C depending on thermocouple
Multi-line display
Input types RTD, Universal Input TC, Voltage/Current (dc)
Selectable alarm functions for alarm output
Control types on/off, P, PD, PI, PID controller
Additional functionality on/off
Communication module not available
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Output Type | SSR |
Supply Voltage | 230 V ac |
Size | 72 x 72mm |
Number of Outputs | 3 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Temperature Range | 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, -199.9 → +650 (RTD - PT 100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +650 (RTD - PT 100) °C, -200 → +900 (Type J Thermocouple) ° |
Control Type | ON/OFF, PID Controller |
Communication Module Available | No |
Display Type | Multi Line |
IP Rating | IP65 |
Mounting Type | Panel Mount |
Additional Functionality | ON/OFF |
Input Type | RTD, Universal Input TC, Voltage/Current (dc) |
Display Colour | Red/Green |
Panel Depth | 84mm |
