RS PRO 5 Pairs 100m 10 Core Telephone Cable, Al/PET Flame Retardant, Self-extinguishing, 24 AWG Grey Sheath 300 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

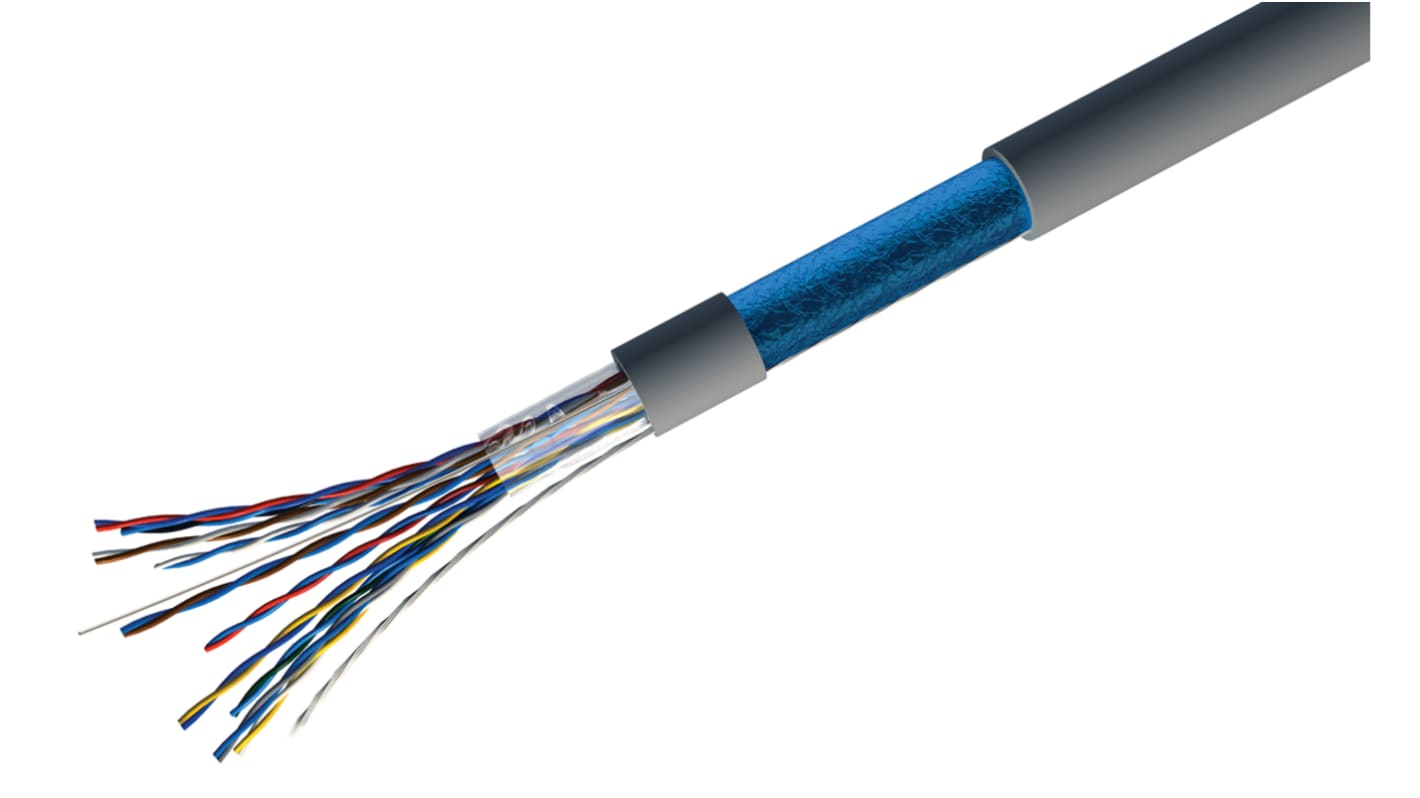

RS Pro Digital Telephone Cable

The RS Pro series of telephone link cable has an AWG20 or AWG24 copper core, PE insulation and aluminium/polyester foil shielding.

Features and Benefits

Rigid bare copper wire conductor PE insulation
Tinned copper drain wire, aluminium/polyester foil shielding
PVC outer sheath
Flame behaviour Cat. C2 according to NF C 32-070

Product Application Information

This connection cable has been designed for use in electronics, measurement, control and signal applications.

Standards

IEC 60332-1

Grey PVC, 6.3 mm outer diameter, AWG 24, 5 pairs

Cable SYT

Specifications
Attribute Value
Fire Behaviour Flame Retardant, Self-extinguishing
Number of Cores 10
Shield Type Al/PET
Outer Sheath Material PVC
Reel Length 100m
Core Strands 1/0.81 mm
American Wire Gauge 24 AWG
Conductor Material Copper
Sheath Colour Grey
Voltage Rating 300 V ac
Cable Shape Multicore
Outer Diameter 6.3mm
22 In stock for delivery within 1 working days
Price 1 Reel of 100 Metre(s)
£ 47.28
(exc. VAT)
£ 56.74
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 +
£47.28
£0.473
*price indicative
Not available for guaranteed pre 9am/10am delivery
