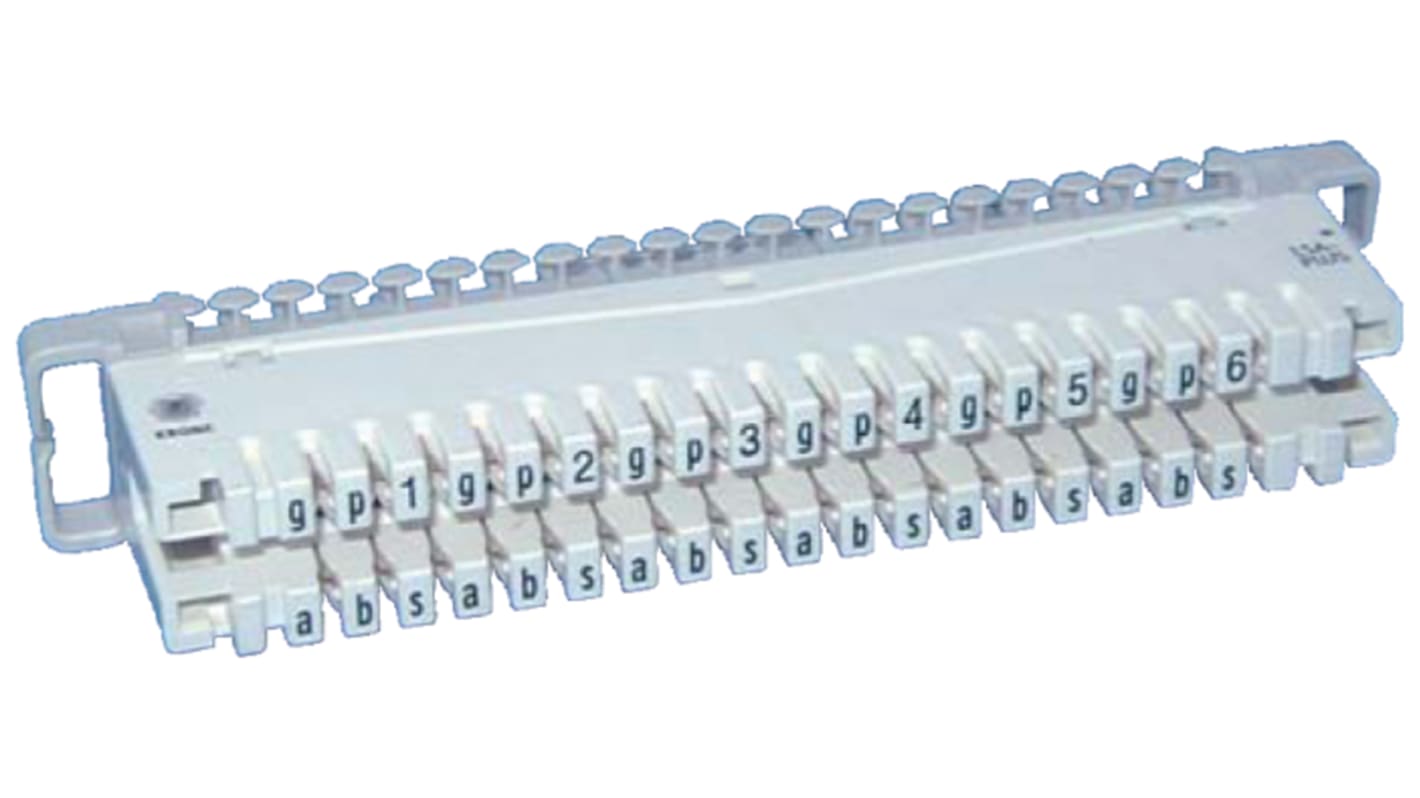

TE Connectivity Connection Module, LSA-PLUS Series,, 18 Way IDC Termination

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

TE Connectivity LSA-Plus and LSA-Profil Connection Modules and Tool

A range of TE Connectivity LSA-Plus and LSA-Profil Connection and Disconnection Modules.

The Insertion and Extraction Tool, stock number 813-5814 , is fitted with a sensor which trims excess cable when a termination has been completed. The conductor diameter range of the LSA+ Insertion Tool is 0.35 to 2.6 mm with an outside diameter range of 0.7 to 2.6 mm. The LSA-Plus Insertion Tool also includes a cutting inhibitor clip, extraction hook and module removal blade.

Special Features:

813-5845 LSA-PLUS disconnection module with 6 off 3 wire shielded pairs
813-5836 LSA-PLUS disconnection module with screw terminals for wires up to 2.5 mm²
813-5848 LSA-PLUS disconnection module has numbering 0 to 9
813-5810 LSA-PROFIL disconnection module has numbering 0 to 9
813-5858 LSA-PROFIL switching module printed jumper side 1...0

Technical Specifications
Thread dimensions: Rigid thread a): Ø 0.4-0.8 mm b)
  Isolation: Ø 0.7-1.5 mm, PVC and PE
No. of threads per contact: 2 max. (with identical dimensions) c)
Insulation resistance: ≥ 5 ´ 104
Test voltage: ≥ 2kV
Surge voltages: As VDE 0433
Contact resistance: Typical 1 mΩ
Constant current: Determined by the thread max.
  allowed current
Surge current: Disconnections modules: 5As 5kA 8//20 μs
  Contact stud bars: 10As 10kA 8//20 μs
a) certain kinds of soft thread can be used.
b) After use of thread larger than Ø 0.65 mm only
  that later on thinner thread is not used.
c) Thread dimensions: Ø 0.4 - 0.65 mm.
Specifications
Attribute Value
Connector Type Telephone/Telecom
Number of Ways 18
Mounting Type Cable
Termination Method IDC
Contact Plating Silver
Contact Material Brass
Housing Material PBT
Wire Size 26-20 or 28-20 AWG
Colour White
Maximum Operating Temperature +80°C
Minimum Operating Temperature -20°C
Series Number 6504 2 002-00
Series LSA-PLUS
334 In stock for FREE next working day delivery
Price Each
£ 7.57
(exc. VAT)
£ 9.08
(inc. VAT)
Units
Per unit
1 +
£7.57
