Vishay Tantalum Capacitor 22μF 25V dc MnO2 Solid ±10% Tolerance 199D Series

  • RS Stock No. 831-0077
  • Mfr. Part No. 199D226X9025D1V1E3
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IL
Product Details

199D Series

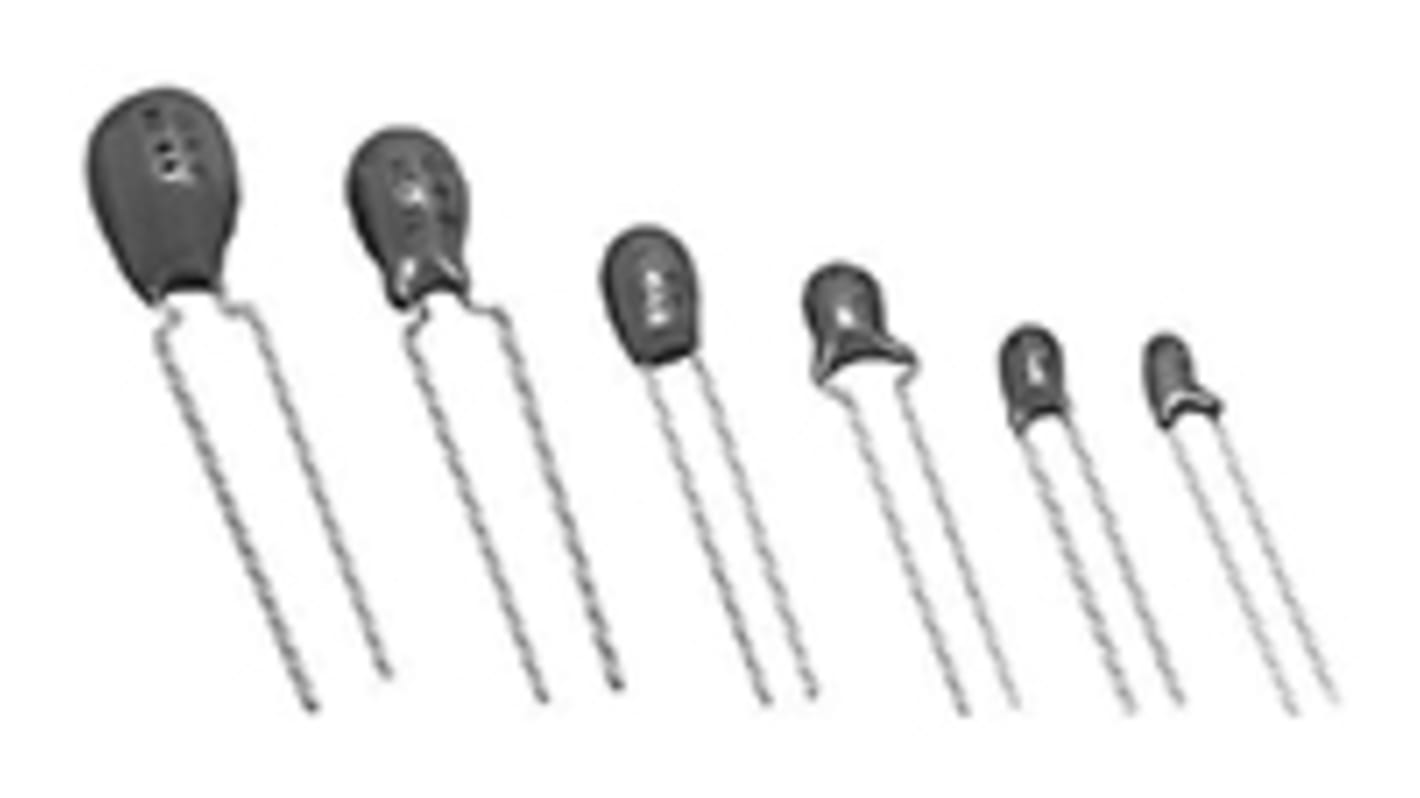

The Vishay 199D offers economy and high performance combined in these radial-lead, solid-electrolyte Tantalex® capacitors. The 199D series offers stable electrical parameters, high reliability and long service life; they are the suitable for use where volumetric efficiency is required.

Specifications
Attribute Value
Technology MnO2
Capacitance 22 µF
Voltage 25 V dc
Mounting Type Through Hole
Package/Case D
Lead Pitch 2.54mm
Tolerance ±10%
Height 10.16mm
Dimensions 6 (Dia.) x 10.16mm
Series 199D
Electrolyte Type Solid
Maximum Operating Temperature +85°C
Tolerance Plus +10%
Minimum Operating Temperature -55°C
Tolerance Minus -10%
Lead Diameter 0.51mm
Leakage Current 4 μA
Diameter 6mm
Terminal Type Through Hole
21 In stock for FREE next working day delivery
Price Each
£ 2.44
(exc. VAT)
£ 2.93
(inc. VAT)
Units
Per unit
1 - 24
£2.44
25 - 99
£2.20
100 - 249
£1.96
250 - 499
£1.71
500 +
£1.33
