- RS Stock No.:
- 181-4731
- Brand:
- RS PRO
250 In stock - FREE next working day delivery available
50 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 50)
£0.248
(exc. VAT)
£0.298
(inc. VAT)
Units | Per unit | Per Pack* |
50 - 200 | £0.248 | £12.40 |
250 - 450 | £0.206 | £10.30 |
500 + | £0.188 | £9.40 |
*price indicative |
- RS Stock No.:
- 181-4731
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

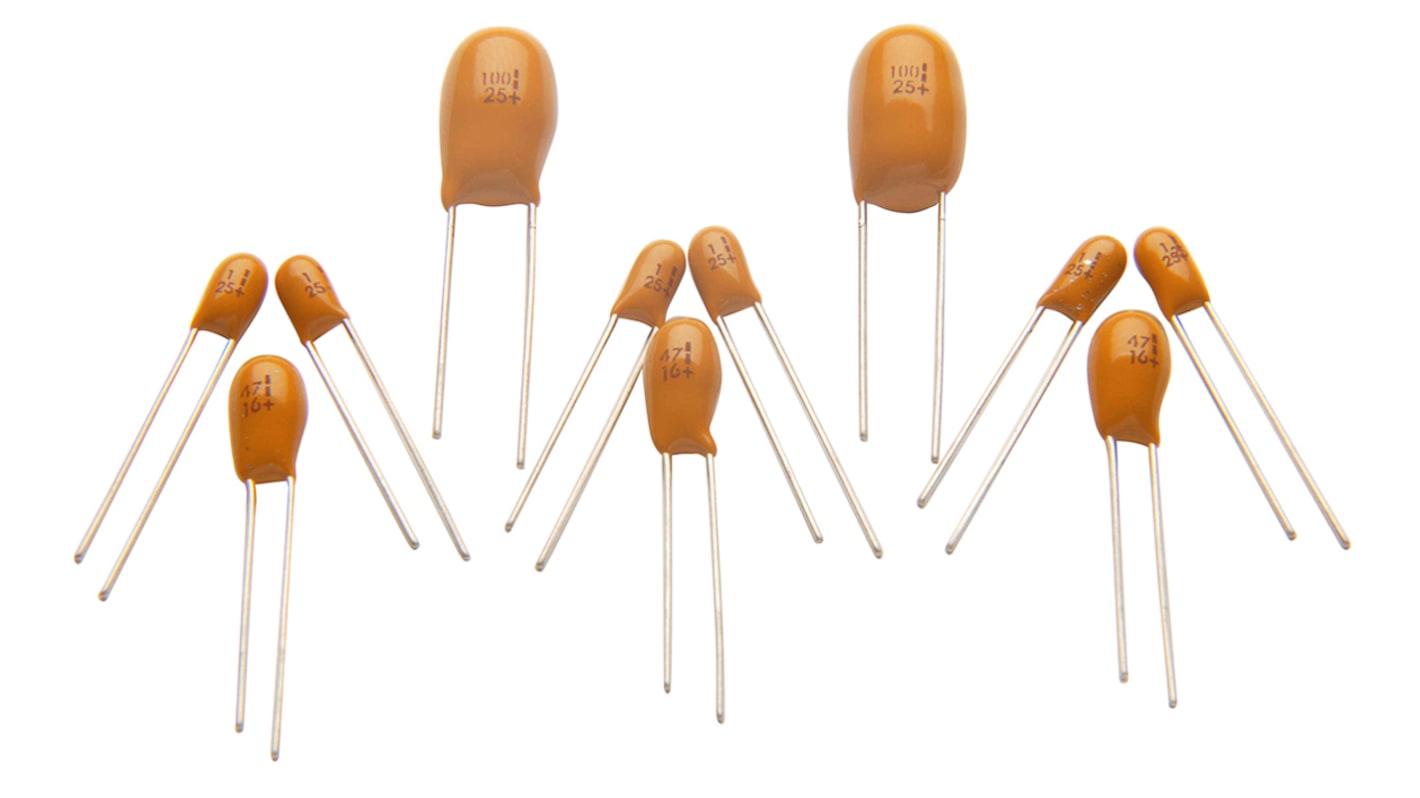

RS PRO Tantalum Capacitor
The RS PRO CB series 10μf epoxy-coated solid electrolytic tantalum capacitor has a 10VDC voltage rating with a leakage current of 500nA. It has dimensions of 5mm x 5mm x 8mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
Tolerance is 20%
Operating temperature ranges between -55°C and 125°C
Life test: 1000 hours
Lead pitch is 2.5mm
Dissipation factor is less than 0.08%
Through hole mount
Package/Case: B
Positive polarised
Operating temperature ranges between -55°C and 125°C
Life test: 1000 hours
Lead pitch is 2.5mm
Dissipation factor is less than 0.08%
Through hole mount
Package/Case: B
Positive polarised
Applications
Electronics industry
Certifications
ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007
BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
---|---|
Technology | Electrolytic |
Capacitance | 10µF |
Voltage | 10V dc |
Mounting Type | Through Hole |
Package/Case | B |
Lead Pitch | 2.5mm |
Tolerance | ±20% |
Length | 5mm |
Depth | 5mm |
Height | 8mm |
Dimensions | 5 x 5 x 8mm |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Leakage Current | 500 nA |
Polarised | Positive |
Tolerance Minus | -20% |
Lead Diameter | 0.5mm |
Dissipation Factor | <lteq/>0.08% |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Tolerance Plus | +20% |
