- RS Stock No.:
- 181-4683
- Brand:
- RS PRO
Available to back order for despatch 29/07/2024
Added
Price Each (In a Pack of 50)
£0.23
(exc. VAT)
£0.28
(inc. VAT)
Units | Per unit | Per Pack* |
50 - 200 | £0.23 | £11.50 |
250 - 450 | £0.224 | £11.20 |
500 - 950 | £0.205 | £10.25 |
1000 - 2450 | £0.183 | £9.15 |
2500 + | £0.143 | £7.15 |
*price indicative |
- RS Stock No.:
- 181-4683
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

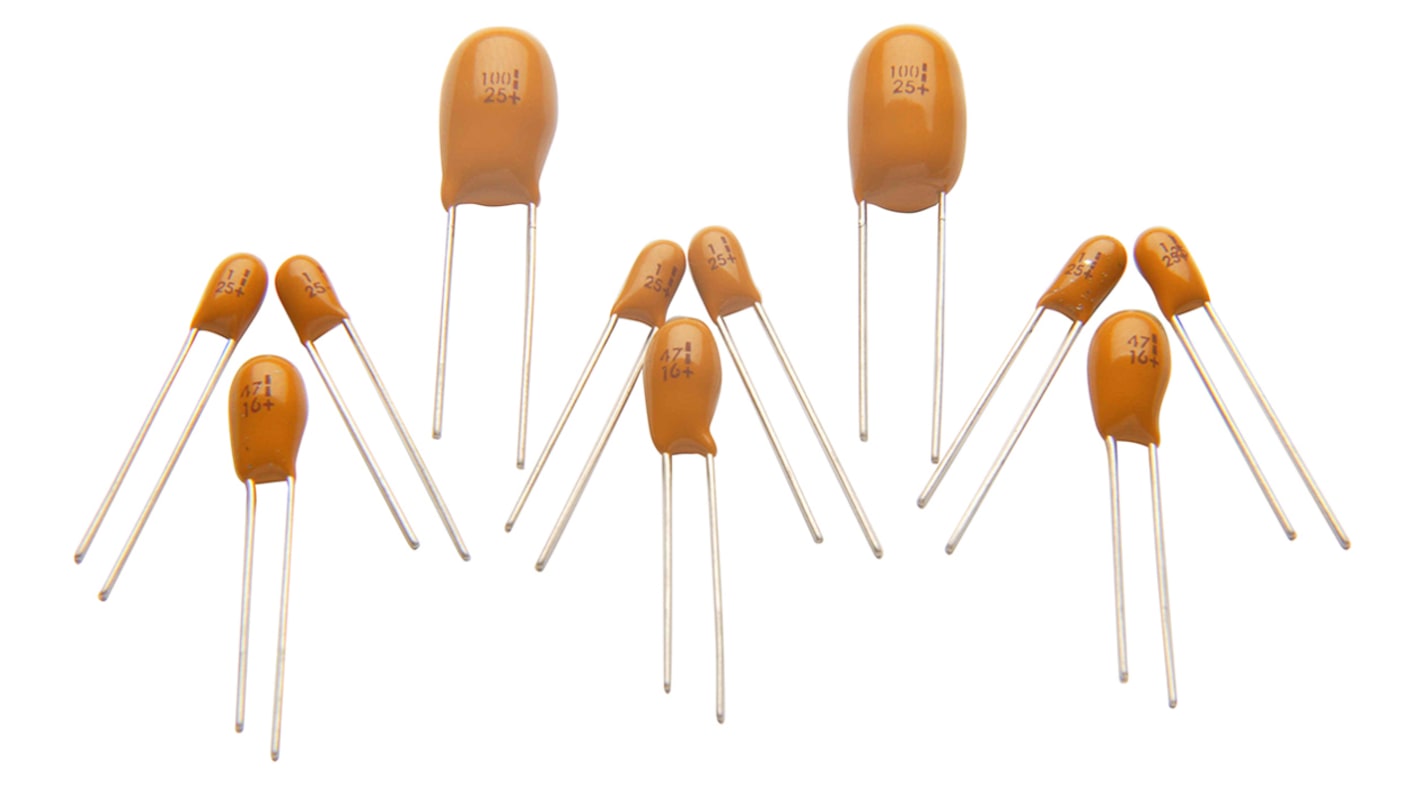

RS PRO Tantalum Capacitor
The RS PRO CB series 0.3uf epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 35VDC and a leakage current of 500nA. It has dimensions of 4.5mm x 4.5mm x 7mm (L x D x H x Lead diameter).
Features and Benefits
Tolerance: ±20%
Operating temperature ranges between -55°C and 125°C
Life of 1000 Hours
Lead pitch: 2.5mm
Dissipation factor: Less than 0.04%
Through hole mount
Package/case: A
Operating temperature ranges between -55°C and 125°C
Life of 1000 Hours
Lead pitch: 2.5mm
Dissipation factor: Less than 0.04%
Through hole mount
Package/case: A
Applications
Electronics industry
Certifications
ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007
BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
---|---|
Technology | Electrolytic |
Capacitance | 330nF |
Voltage | 35V dc |
Mounting Type | Through Hole |
Package/Case | A |
Lead Pitch | 2.5mm |
Tolerance | ±20% |
Length | 4.5mm |
Depth | 4.5mm |
Height | 7mm |
Dimensions | 4.5 x 4.5 x 7mm |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Tolerance Minus | -20% |
Minimum Operating Temperature | -55°C |
Leakage Current | 500 nA |
Lead Diameter | 0.5mm |
Tolerance Plus | +20% |
Dielectric Material Family | Tantalum |
Dissipation Factor | <lteq/>0.04% |
Polarised | Positive |
