RS PRO 4.7μF Electrolytic Tantalum Electrolytic Capacitor 25V dc
- RS Stock No.:
- 181-4573
- Brand:
- RS PRO
1000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 1000)
£0.161
(exc. VAT)
£0.193
(inc. VAT)
| Units | Per unit | Per Bag* |
| 1000 - 2000 | £0.161 | £161.00 |
| 3000 + | £0.149 | £149.00 |
| *price indicative | ||
- RS Stock No.:
- 181-4573
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

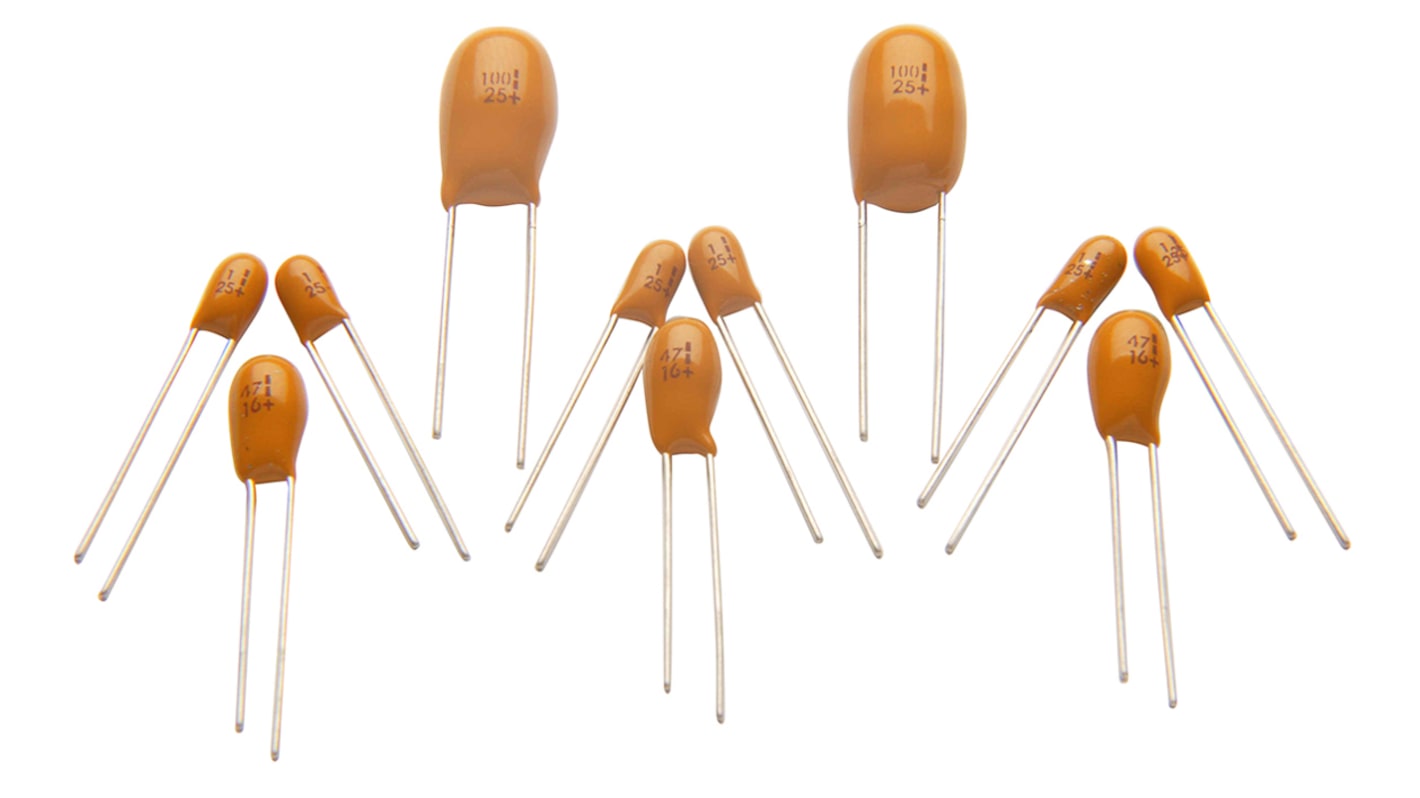

RS PRO Tantalum Capacitor
The RS PRO CB series 4.7μF epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 25VDC and a leakage current of 500nA. It has dimensions of 5mm x 5mm x 8mm x 0.5mm (L x D x H x lead diameter).
Features and Benefits
• Tolerance: ±20%
• Operating temperature ranges between -55°C and +125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: B
• Positive polarized
• Operating temperature ranges between -55°C and +125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: B
• Positive polarized
Applications
• Electronics industry
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 4.7µF |
| Voltage | 25V dc |
| Mounting Type | Through Hole |
| Package/Case | B |
| Lead Pitch | 2.5mm |
| Tolerance | ±20% |
| Length | 5mm |
| Depth | 5mm |
| Height | 8mm |
| Dimensions | 5 x 5 x 8mm |
| Maximum Operating Temperature | +125°C |
| Electrolyte Type | Solid |
| Leakage Current | 500 nA |
| Polarised | Positive |
| Tolerance Minus | -20% |
| Dissipation Factor | <lteq/>0.06% |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Lead Diameter | 0.5mm |
| Tolerance Plus | +20% |
