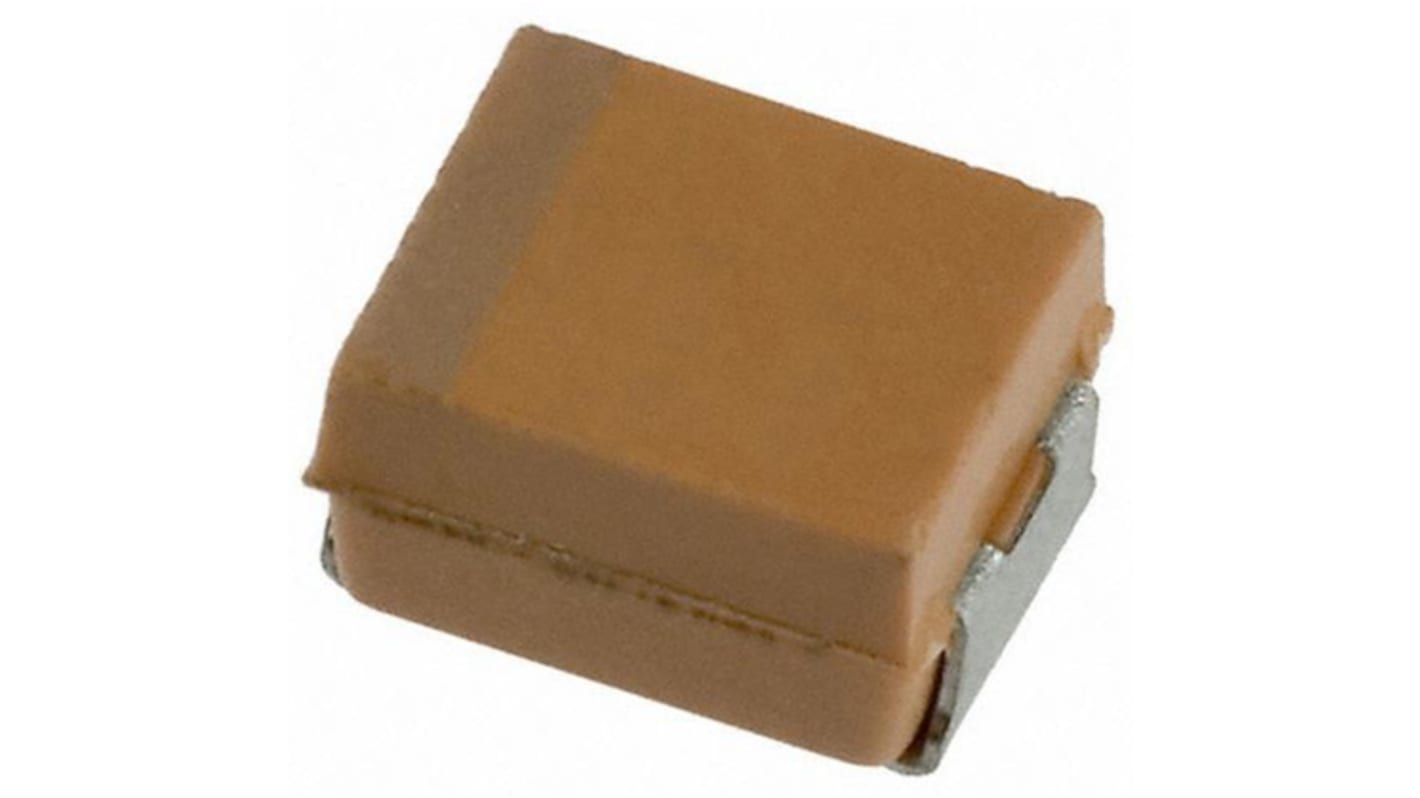

KYOCERA AVX 100μF Electrolytic Tantalum Capacitor 6.3V dc, TAJ Series
- RS Stock No.:
- 135-4068
- Mfr. Part No.:
- TAJB107M006RNJ
- Brand:
- AVX
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 135-4068
- Mfr. Part No.:
- TAJB107M006RNJ
- Brand:
- AVX
Technical Reference
Legislation and Compliance
Product Details
TAJ Standard Series 2.5 to 16Vdc
TAJ Series are General Purpose SMT Chip Tantalum Capacitors
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 100µF |
| Voltage | 6.3V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1210 (3225M) |
| Equivalent Series Resistance | 6.3Ω |
| Lead Pitch | 1.4mm |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TAJ |
| Maximum Operating Temperature | +125°C |
| Electrolyte Type | Solid |
| Tolerance Plus | +20% |
| Surge Voltage | 5 V dc @ +125 °C, 8 V dc @ +85 °C |
| Tolerance Minus | -20% |
| Dielectric Material Family | Tantalum |
| Leakage Current | 1.7 μA |
| Dissipation Factor | 10% |
| Polarised | Polar |
| Terminal Type | SMT |
| Minimum Operating Temperature | -55°C |
