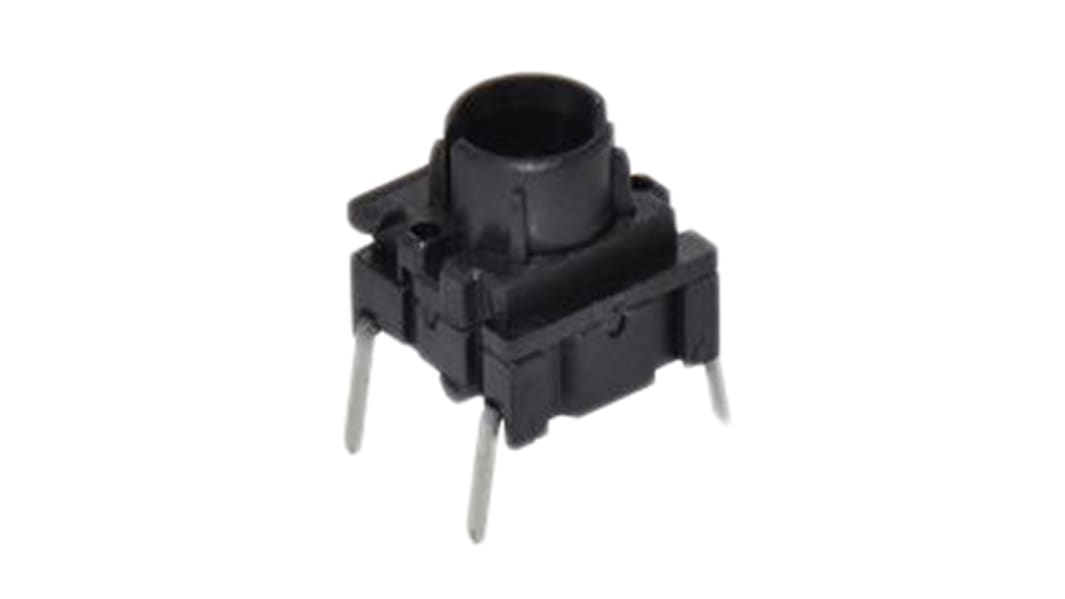

IP67 Green, Red Side Cap Tactile Switch, SPST 50 mA 6.5 (Dia.)mm PCB
- RS Stock No.:
- 912-0392
- Mfr. Part No.:
- RA3FTH98020
- Brand:
- MEC
781 In stock - FREE next working day delivery available
Added
Price Each
£4.77
(exc. VAT)
£5.72
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £4.77 |
| 10 - 24 | £4.49 |
| 25 + | £2.89 |
- RS Stock No.:
- 912-0392
- Mfr. Part No.:
- RA3FTH98020
- Brand:
- MEC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® 3F Switches
SPNO momentary action
Sealed to IP67
Sealed to IP67
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Green, Red |
| Actuator Type | Side Cap |
| Length | 12.5mm |
| Width | 10.4mm |
| Dimensions | 12.5 x 10.4mm |
| Illuminated | Yes |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Voltage Rating | 24V dc |
| Maximum Operating Temperature | +160°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +160°C |
| Mechanical Life | 10000000Operations |
