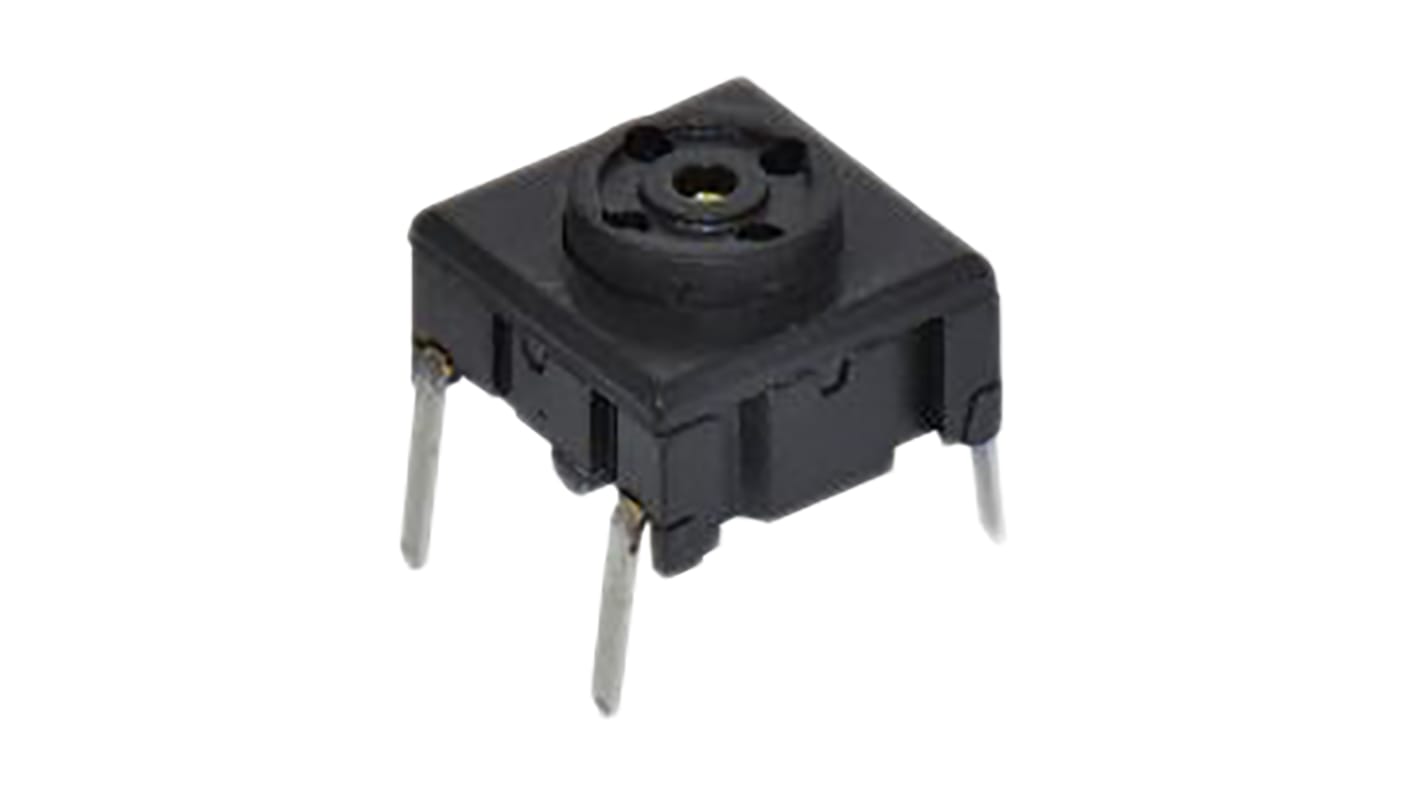

IP67 Black Flat Button Tactile Switch, SPST 50 mA 6.5 (Dia.)mm PCB
- RS Stock No.:
- 912-0380
- Mfr. Part No.:
- RA3ETH9-15-0
- Brand:
- MEC
476 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£0.77
(exc. VAT)
£0.92
(inc. VAT)
| Units | Per unit |
| 1 + | £0.77 |
- RS Stock No.:
- 912-0380
- Mfr. Part No.:
- RA3ETH9-15-0
- Brand:
- MEC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® 3C/3E Switches
SPNO momentary action
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Black |
| Actuator Type | Flat Button |
| Length | 12.5mm |
| Width | 6.4mm |
| Dimensions | 12.5 x 6.4mm |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Height | 15mm |
| Operating Force | 3.5 N |
| Voltage Rating | 24V dc |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -40 → +160°C |
| Maximum Operating Temperature | +160°C |
