- RS Stock No.:
- 793-1611
- Mfr. Part No.:
- KSA0M411 LFTR
- Brand:
- C & K
- RS Stock No.:
- 793-1611
- Mfr. Part No.:
- KSA0M411 LFTR
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR

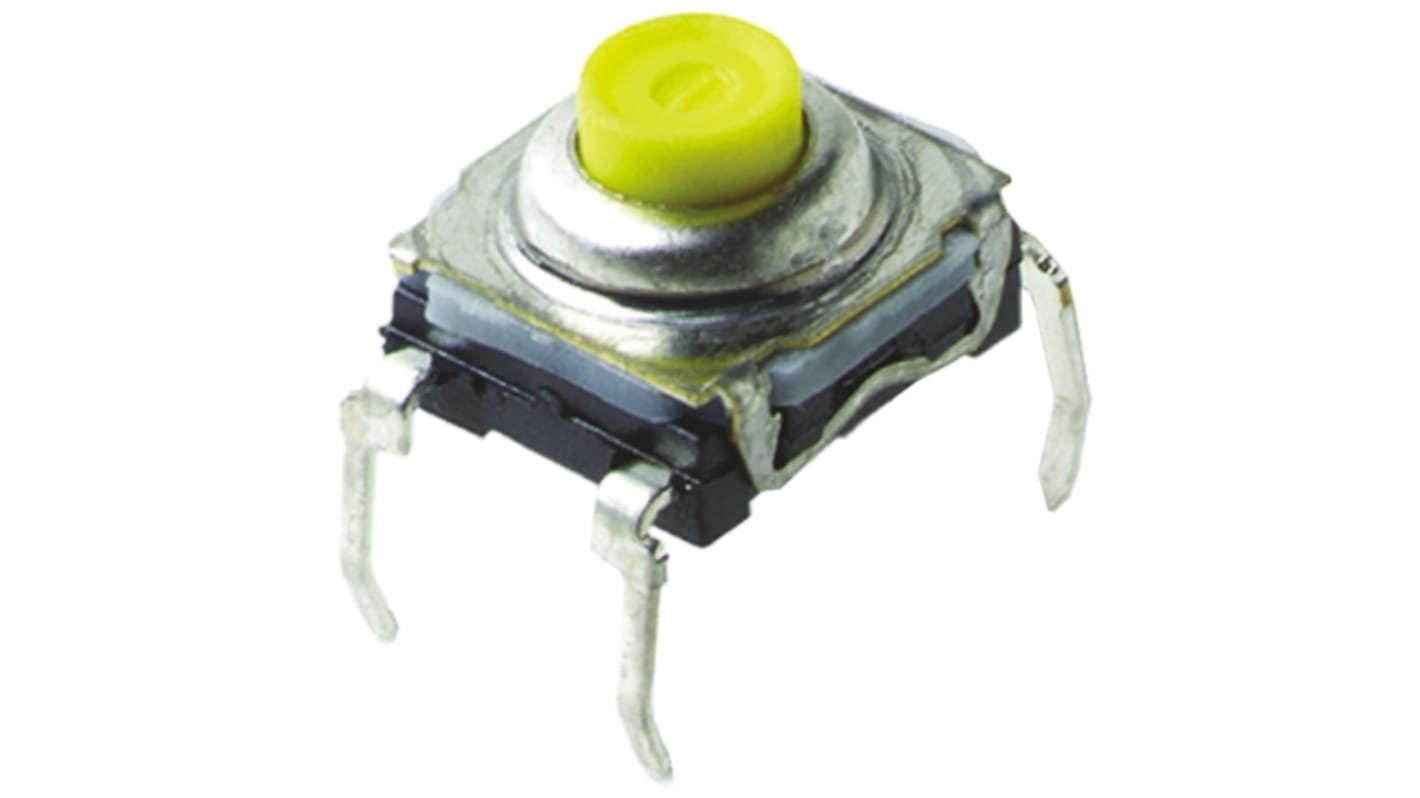

Product Details
Tactile Switches
All switches have a contact configuration of SPST N/O
Designed for manual insertion
The ball actuated type can be used in applications where the actuation force is out of line with the vertical. A tolerance of up to ±30° can be accommodated
Insulation resistance: >100GΩ at 100Vdc
Sealed against soldering flux
Average travel 0.3mm
The ball actuated type can be used in applications where the actuation force is out of line with the vertical. A tolerance of up to ±30° can be accommodated
Insulation resistance: >100GΩ at 100Vdc
Sealed against soldering flux
Average travel 0.3mm
Note
Tactile
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Terminal Type | PC Terminal |
Actuator Type | Side, Top |
Length | 7.4mm |
Width | 7.4mm |
Dimensions | 7.4 x 7.4mm |
Illuminated | No |
Contact Current Rating | 50 mA @ 32 V dc |
IP Rating | IP60 |
Height | 4.7mm |
Voltage Rating | 32V dc |
Operating Force | 3 N |
Operating Temperature Range | -40 → +85°C |
Contact Material | Silver Plated |
Mechanical Life | 100000Cycles |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
