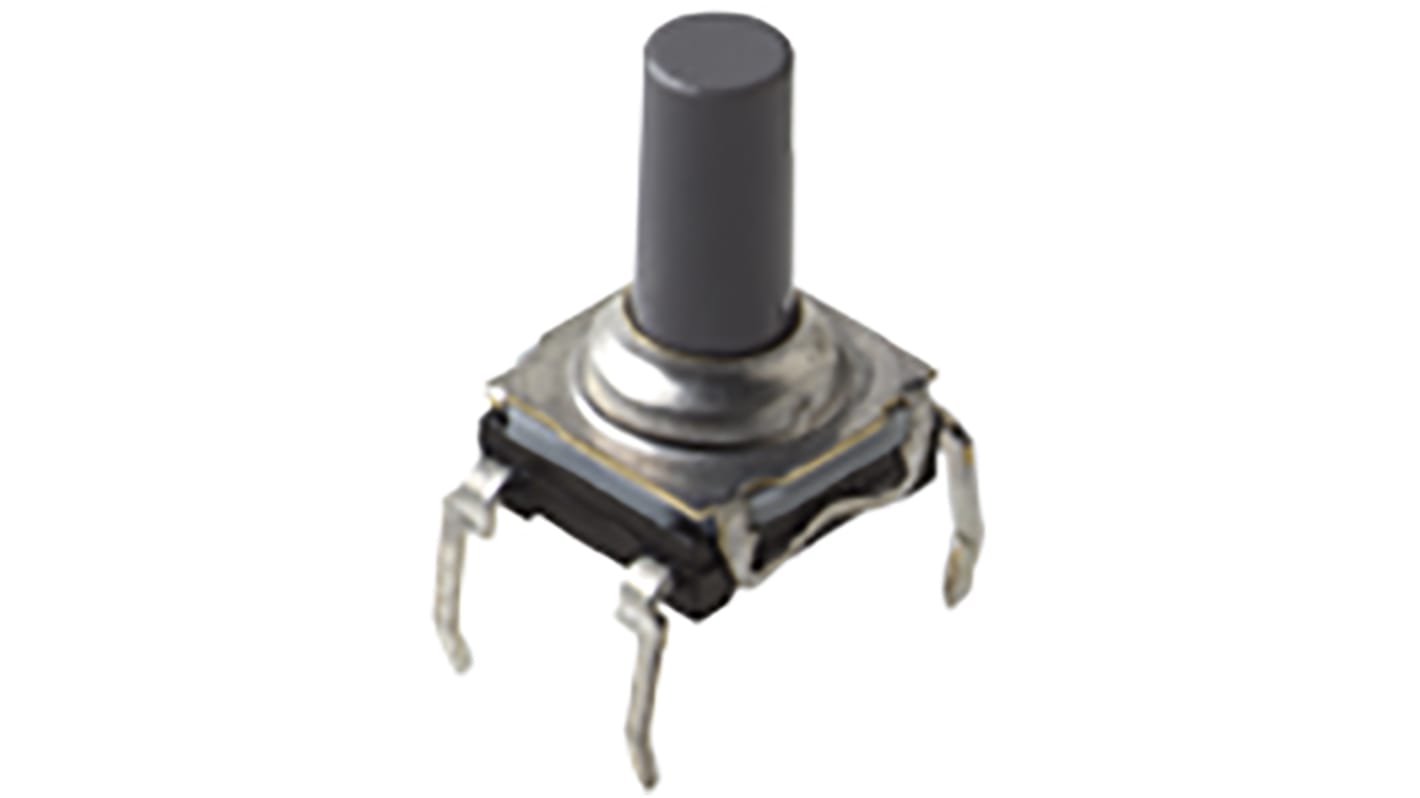

IP60 Top Tactile Switch, SPST 50 mA 9.9mm Through Hole
- RS Stock No.:
- 176-9479
- Mfr. Part No.:
- KSL0M311 LFTR
- Brand:
- C & K
Available to back order for despatch 15/07/2024
Added
Price 1 Bag of 2500
£616.30
(exc. VAT)
£739.56
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 + | £616.30 | £0.247 |
| *price indicative | ||
- RS Stock No.:
- 176-9479
- Mfr. Part No.:
- KSL0M311 LFTR
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Featuring a top or side actuated design, the KSL series sealed tact switch from C&K comes equipped with cambered terminals to ensure self-retention – and can be used for automation or manual insertion. The switches’ durability makes them ideal for telecommunication networks and automation and industrial applications that need to withstand harsh environments.
Designed for automatic or manual insertion
Cambered terminals to ensure self retention
Top or side actuated
Large choice of caps
Typical Applications
Automotive
Industrial
Telecommunication networks
Cambered terminals to ensure self retention
Top or side actuated
Large choice of caps
Typical Applications
Automotive
Industrial
Telecommunication networks
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | PC Pin |
| Switch Operation | Momentary |
| Actuator Length | 9.9mm |
| Actuator Type | Top |
| Length | 7.4mm |
| Width | 7.3mm |
| Dimensions | 7.4 x 7.3mm |
| Illuminated | No |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA |
| IP Rating | IP60 |
| Operating Force | 1.3 N |
| Voltage Rating | 32V dc |
| Maximum Operating Temperature | +125°C |
| Operating Temperature Range | -40 → +125°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold |
