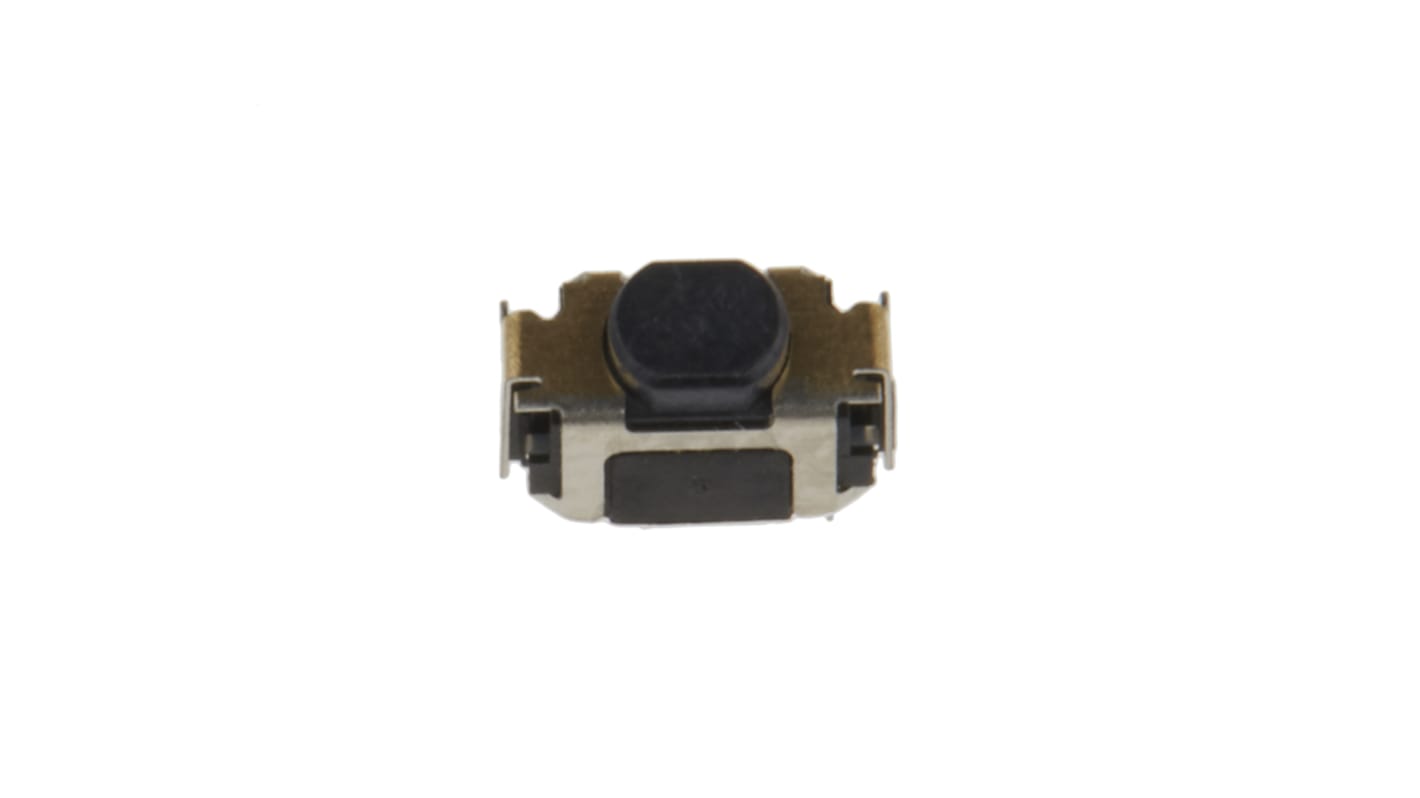

Red Push Button Tactile Switch 50 mA 3mm Surface Mount
- RS Stock No.:
- 164-9927
- Mfr. Part No.:
- TSS 3222 RP-RA
- Brand:
- KNITTER-SWITCH
Available to back order for despatch 27/08/2024
Added
Price Each (In a Pack of 5)
£0.446
(exc. VAT)
£0.535
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | £0.446 | £2.23 |
| *price indicative | ||
- RS Stock No.:
- 164-9927
- Mfr. Part No.:
- TSS 3222 RP-RA
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Brown Push Button Tactile Switch
The KNITTER-SWITCH is an ON/OFF push button tactile switch. The tactile switch has silver plated stainless steel contact. The mounting type is surface mount.
Features and Benefits
• Switching operation is latching
• Terminal type is solder tab
• Contact current rating is 50mA
• Voltage rating is 12VDC
• Operating force is 220N
• Dielectric strength is 250V
• Service temperature ranges between -40°C and 90°C
• Packing on tape, 1600 pieces/reel
• Electrical life 2.6N minimum 30,000 cycles
• Terminal type is solder tab
• Contact current rating is 50mA
• Voltage rating is 12VDC
• Operating force is 220N
• Dielectric strength is 250V
• Service temperature ranges between -40°C and 90°C
• Packing on tape, 1600 pieces/reel
• Electrical life 2.6N minimum 30,000 cycles
Applications
• Calculators
• Kitchen appliances
• Magnetic locks
• Mechanical devices
• Electronic devices
• Kitchen appliances
• Magnetic locks
• Mechanical devices
• Electronic devices
Specifications
Attribute | Value |
|---|---|
| Terminal Type | Solder Tab |
| Switch Operation | Momentary |
| Actuator Length | 3mm |
| Actuator Colour | Red |
| Actuator Type | Push Button |
| Length | 6mm |
| Width | 3.5mm |
| Dimensions | 6 x 3.5mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| Voltage Rating | 12V dc |
| Operating Force | 220 N |
| Maximum Operating Temperature | +90°C |
| Operating Temperature Range | -40 → +90°C |
| Contact Material | Silver Plated Stainless Steel |
| Minimum Operating Temperature | -40°C |
