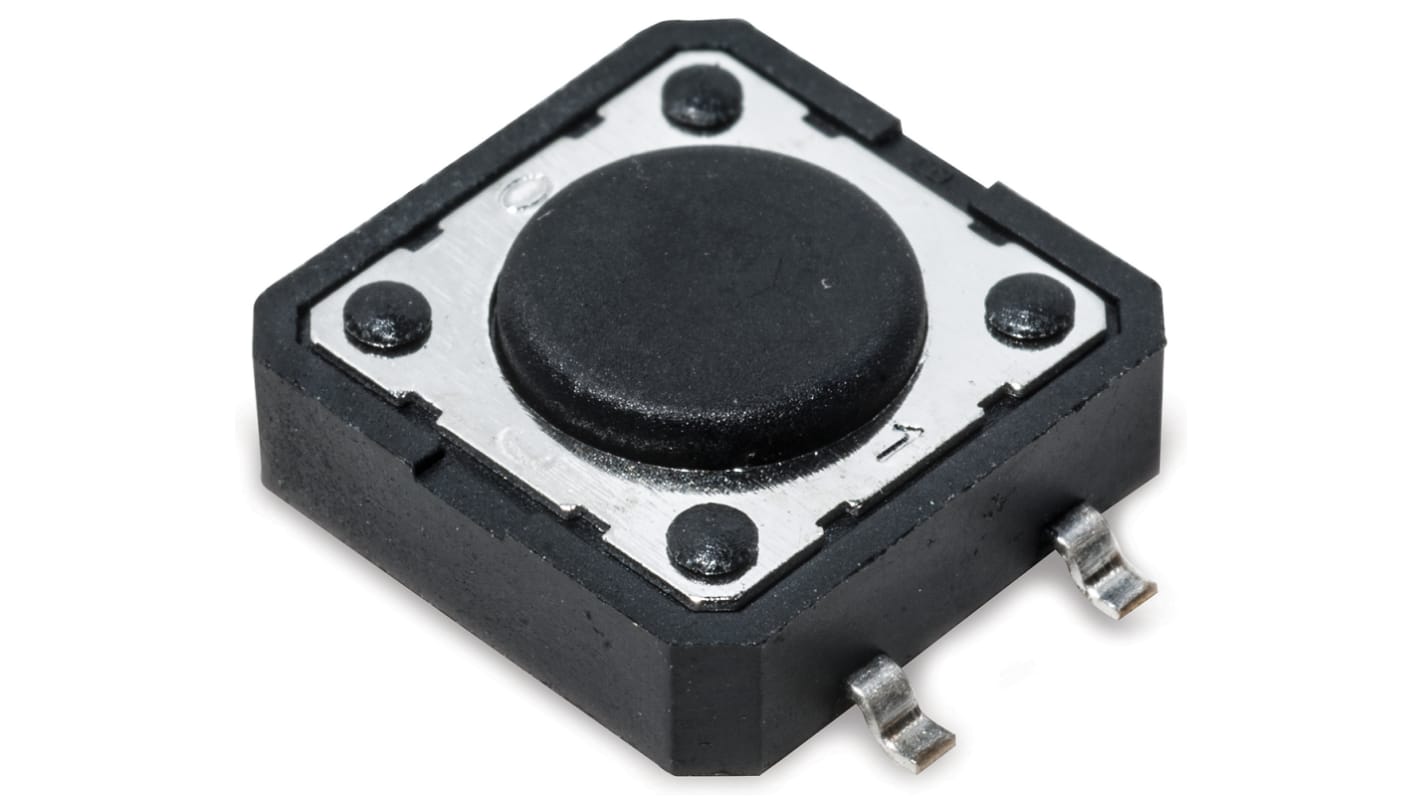

IP40 Black Button Tactile Switch, SPST 50 mA 7 (Dia.)mm Surface Mount
- RS Stock No.:
- 135-9131
- Mfr. Part No.:
- PTS125SK85 SMTR-2 LFS
- Brand:
- C & K
Available to back order for despatch 15/07/2024
Added
Price Each (On a Reel of 400)
£0.44
(exc. VAT)
£0.53
(inc. VAT)
| Units | Per unit | Per Reel* |
| 400 - 400 | £0.44 | £176.00 |
| 800 - 1600 | £0.396 | £158.40 |
| 2000 + | £0.352 | £140.80 |
| *price indicative | ||
- RS Stock No.:
- 135-9131
- Mfr. Part No.:
- PTS125SK85 SMTR-2 LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
C&K PTS125 Series Tactile Switches
From C & K Switches, a range of 12 mm THT and SMT top actuated tactile switches. The PTS125 series of switches are available in various heights and operating forces making them ideal for applications where space is limited. The IP40 switches in the PTS125 series are momentary in action with an SPST-NO contact arrangement. All tactile switches in the PTS125 range are supplied with a round actuator.
Features and Benefits
• IP40 rated
• Various switch heights
• THT and SMT terminations
• Silver plated contacts
• -20°C to 70°C
• Various switch heights
• THT and SMT terminations
• Silver plated contacts
• -20°C to 70°C
Applications
• Instrumentation
• Computers
• Consumer products
• Industrial
• Computers
• Consumer products
• Industrial
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Gull Wing |
| Switch Operation | Momentary |
| Actuator Length | 7 (Dia.)mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Length | 12mm |
| Width | 12mm |
| Dimensions | 12 x 12mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP40 |
| Voltage Rating | 12V dc |
| Operating Force | 2.5 N |
| Operating Temperature Range | -20 → +70°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Plated |
| Minimum Operating Temperature | -20°C |
