- RS Stock No.:
- 135-9062
- Mfr. Part No.:
- KSC1001G LFS
- Brand:
- C & K
Available to back order for despatch 05/08/2024
Added
Price Each (On a Reel of 1000)
£0.291
(exc. VAT)
£0.349
(inc. VAT)
Units | Per unit | Per Reel* |
1000 + | £0.291 | £291.00 |
*price indicative |
- RS Stock No.:
- 135-9062
- Mfr. Part No.:
- KSC1001G LFS
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

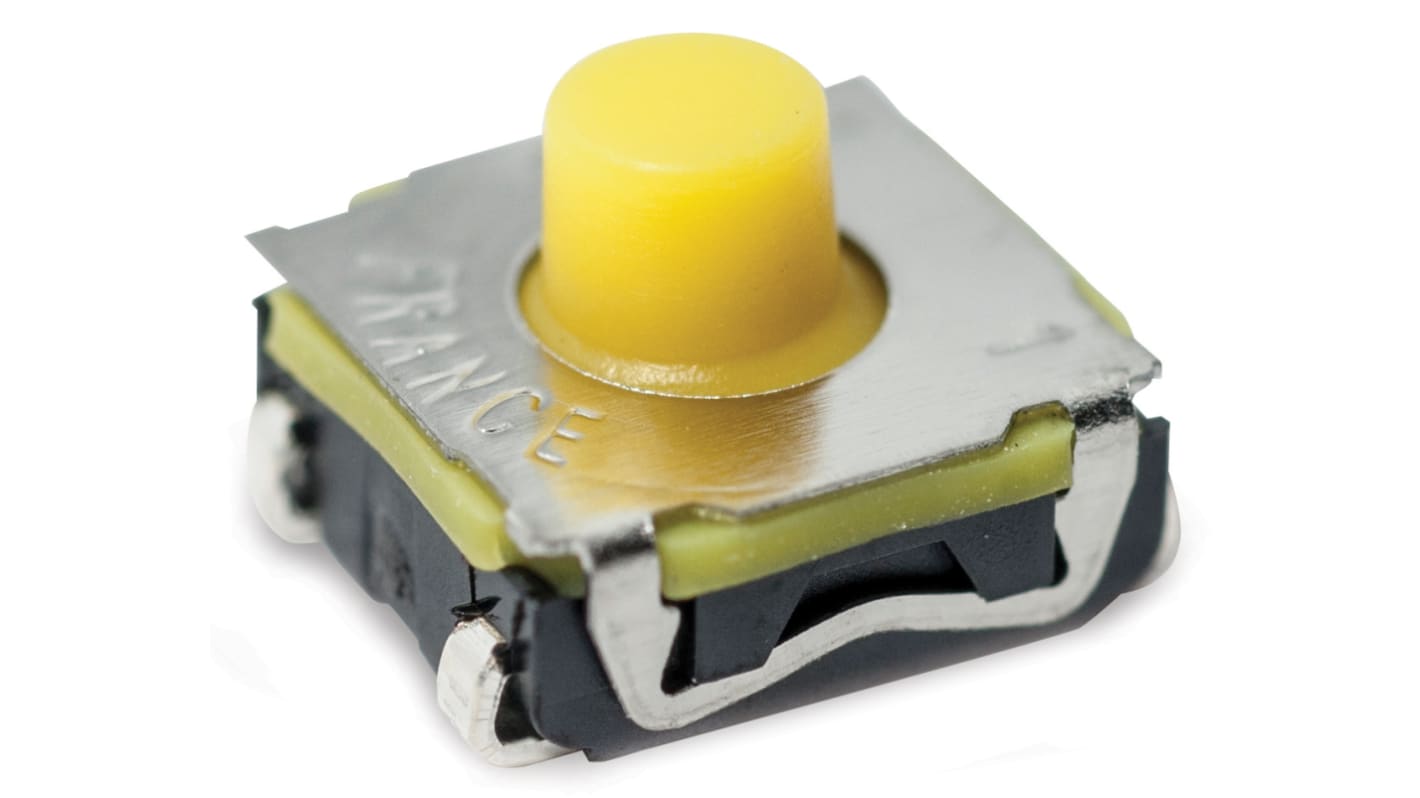

C&K KSC10 Series Tactile Switches
From C & K Switches, a range of IP67 sealed tactile switches for surface mounting. The KSC10 range of switches are 4.9 mm in height with a soft actuator, making them ideal for printed circuit boards where space is limited. Switches in the KSC10 series have SPST-NO momentary silver contacts and gullwing termination.
Features and Benefits
IP67
Gullwing Termination
Positive tactile feeling
Small footprint
Ultra-low current
Gullwing Termination
Positive tactile feeling
Small footprint
Ultra-low current
Applications
Automotive
Industrial electronics
Mobile phones
Network infrastructure and IT
Lifts
Industrial electronics
Mobile phones
Network infrastructure and IT
Lifts
Tactile
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Terminal Type | Gull Wing |
Switch Operation | Momentary |
Actuator Length | 3.3 (Dia.)mm |
Actuator Colour | Clear |
Actuator Type | Flush |
Length | 6.8mm |
Width | 6.8mm |
Dimensions | 6.8 x 6.8mm |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP67 |
Voltage Rating | 32V dc |
Operating Force | 1.45 N |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Contact Material | Silver Plated |
